Dorel DA6580 - Page 13

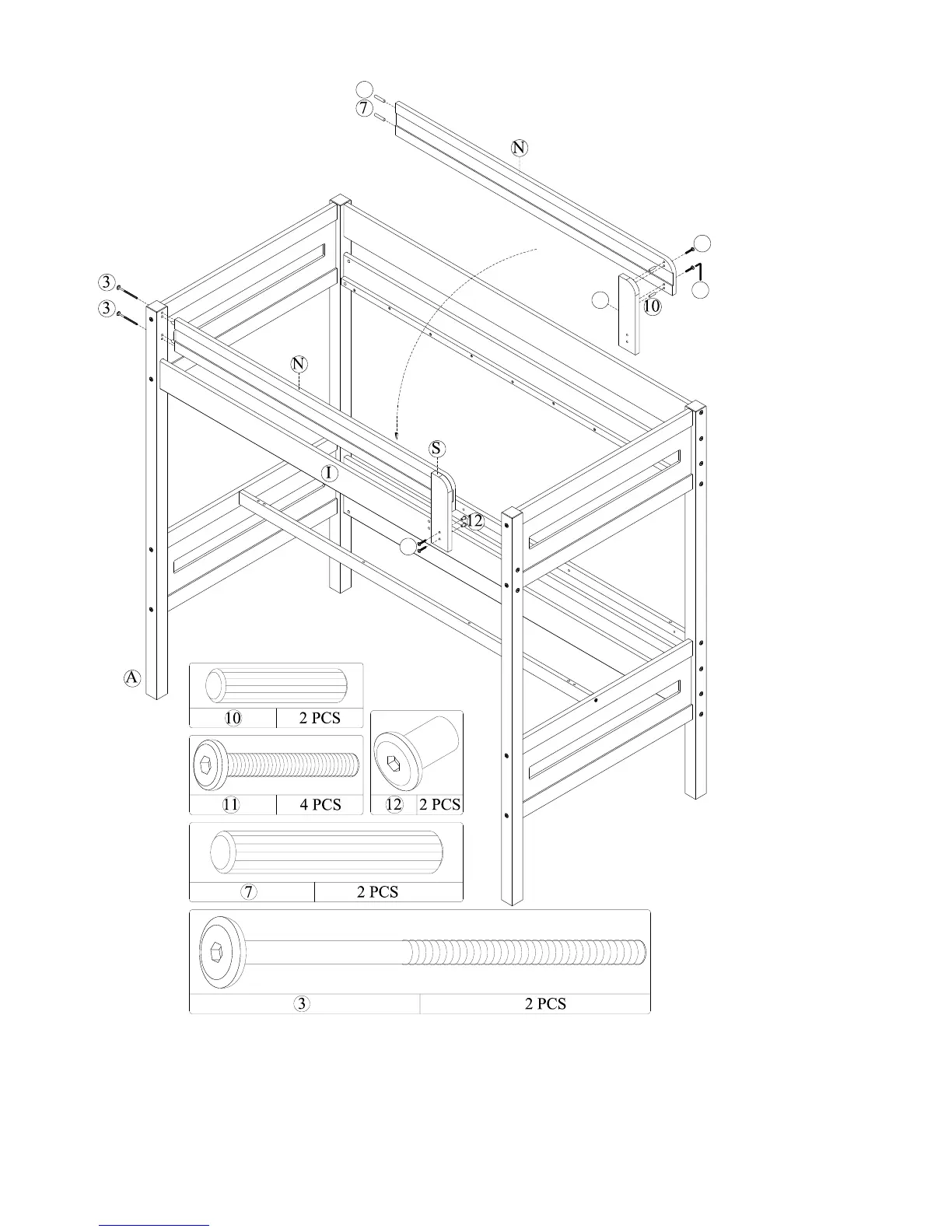

Insert wood dowel (7) into end of the short guardrails (N) an attach it to left front post (A) with
wood joint connectors (3).
Attach the short guardrail post (S) to top front side rail (I) with joint connectors (11) and hex cap
(12) as shown. Fully tighten the joint connectors (11) with the Allen key (8).
LOFT BED WITH DESK
DA6580
STEP 5
Insert wood dowel (10) into holes of the short guardrails (N) and attach it to short guardrail post
(S) with joint connectors (11) and Allen key (8).
S
7
11
8
11
