Insert barrel nut (5) into top back side rail (J) and bottom back side rail (W).
Attach top back side rail (J) and bottom back side rail (W) to back posts (B & C) with joint
connectors (1) as shown.
Tighten joint connectors (1) with the Allen key (8).
LOFT BED WITH DESK
DA6580
STEP 4

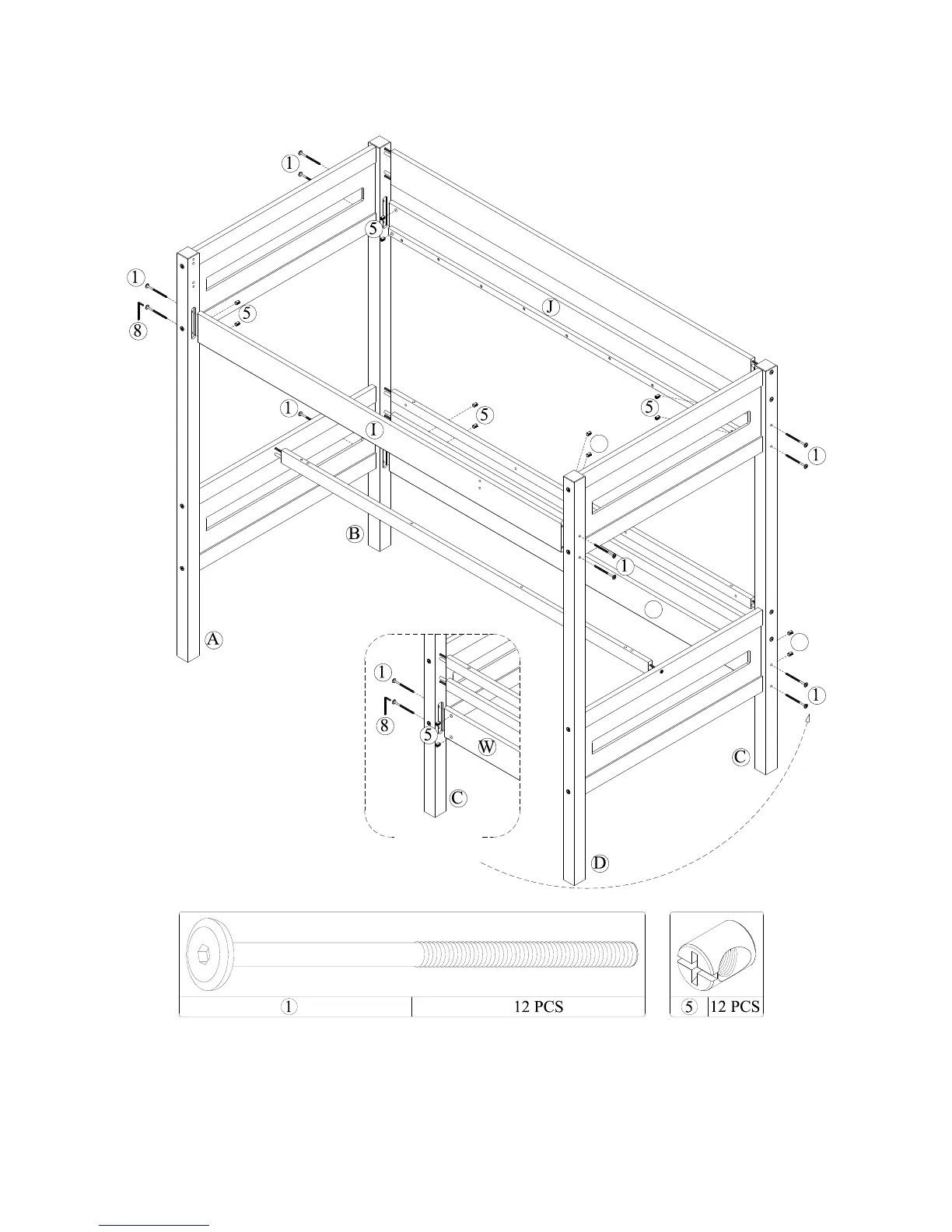

Insert barrel nuts (5) into top front side rail (I).
Attach top front side rail (I) to front posts (A & D) with joint connectors (1) as shown.
5
W
5
Back
View
