NOTE: Fully tighten all joint connector installed in previous steps.
LOFT BED WITH DESK
DA6580

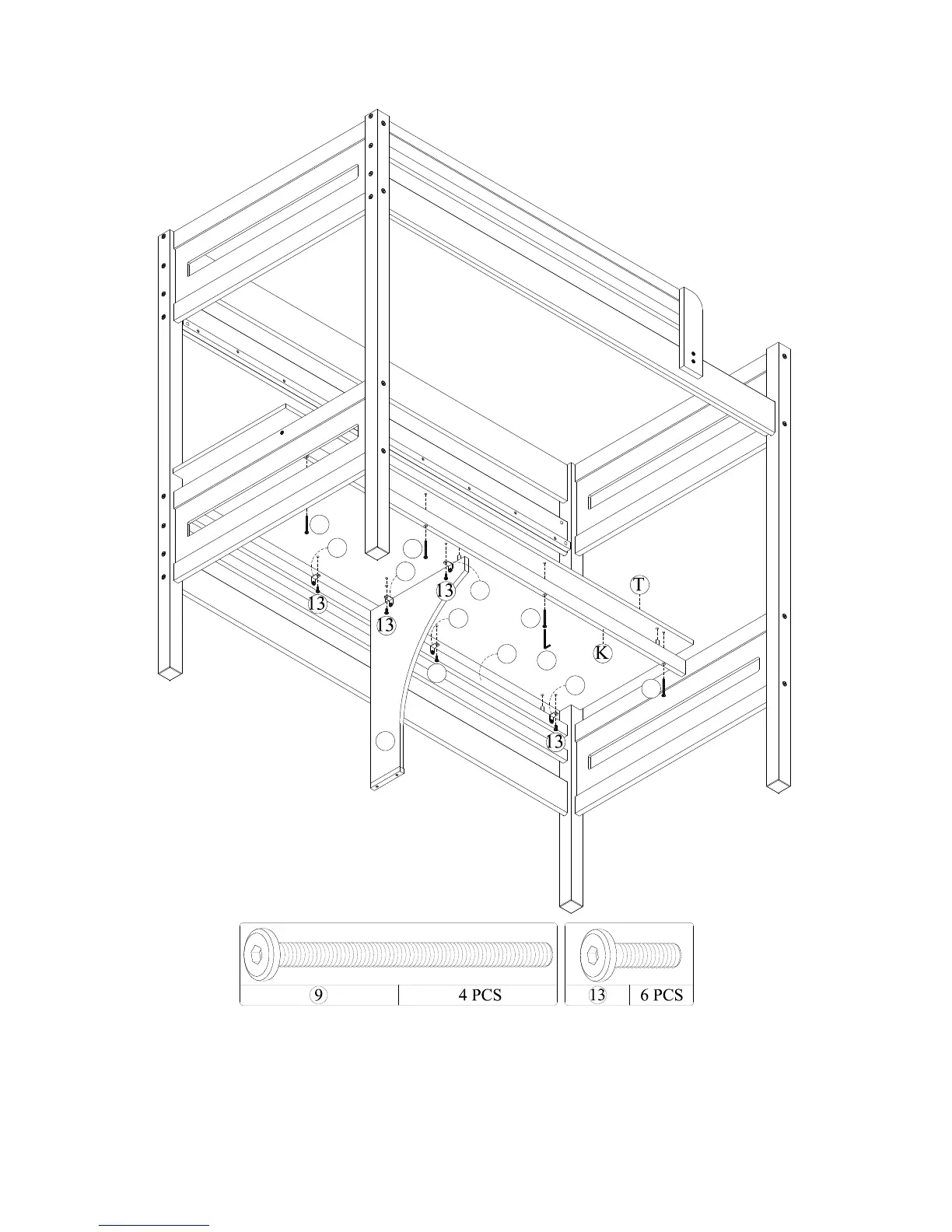

STEP 8
Attach desk panel (T) to the assembled unit and secure it to desktop front rail (K) with joint
connectors (9) as shown.
Secure the desk panel (T) to support post (X) and desk back rail (U) using joint connectors (13)
through metal plates (14).
Tighten joint connectors (9 & 13) using Allen key (8).
X
9
9
9
9
13
14
14
14
14
14
U
8
View from
underneath
the desk
