Dorel DL7519E - Page 10

TWIN BUNK BED
DL7519E / DL7519W

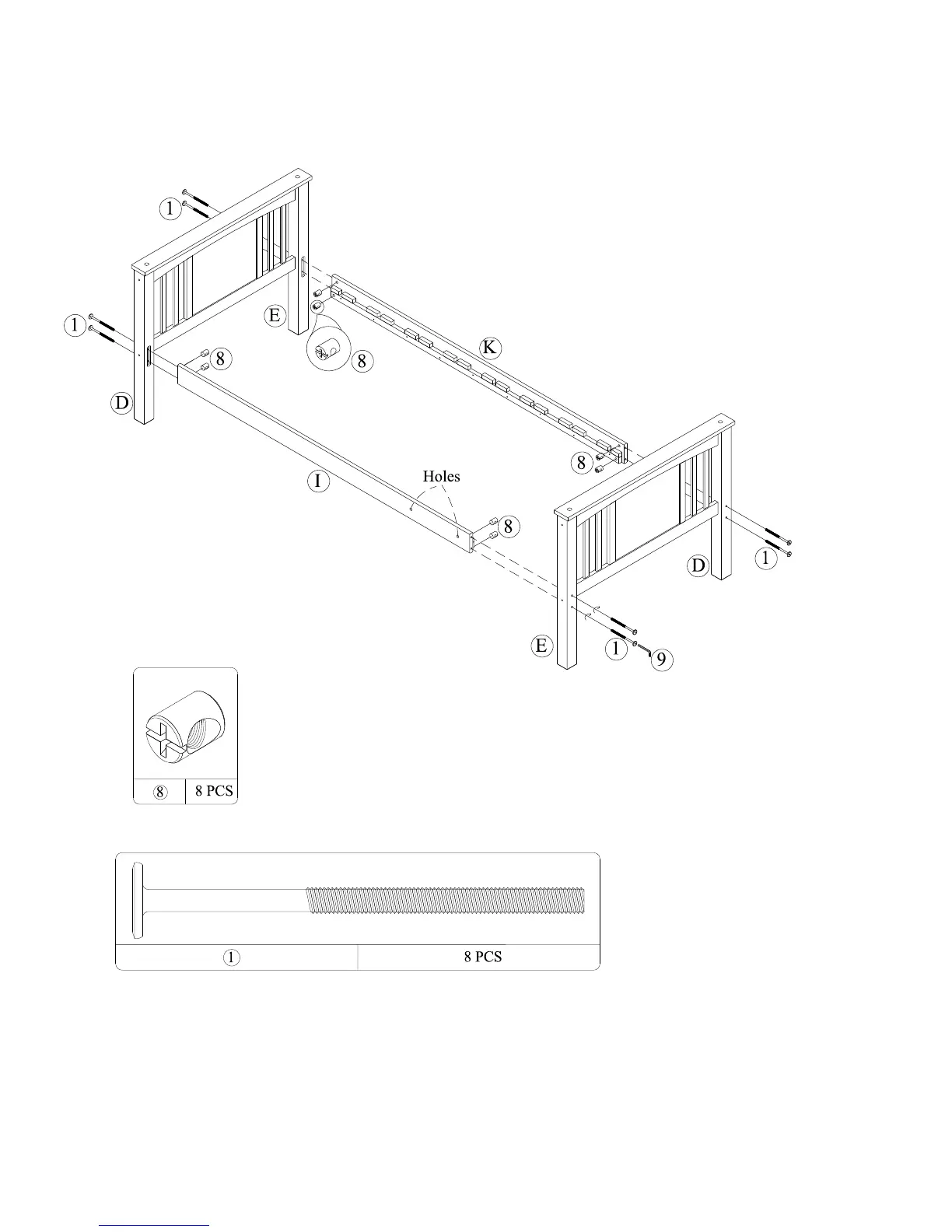

Attach the two headboards with bottom posts (D and E) to bottom side rails (I and K) using joint
connectors (1) and barrel nuts (8) as shown. Use Allen key (9) to tighten to joint connectors.
Note: This is the lower bunk.
