KTC-2 (MS9)

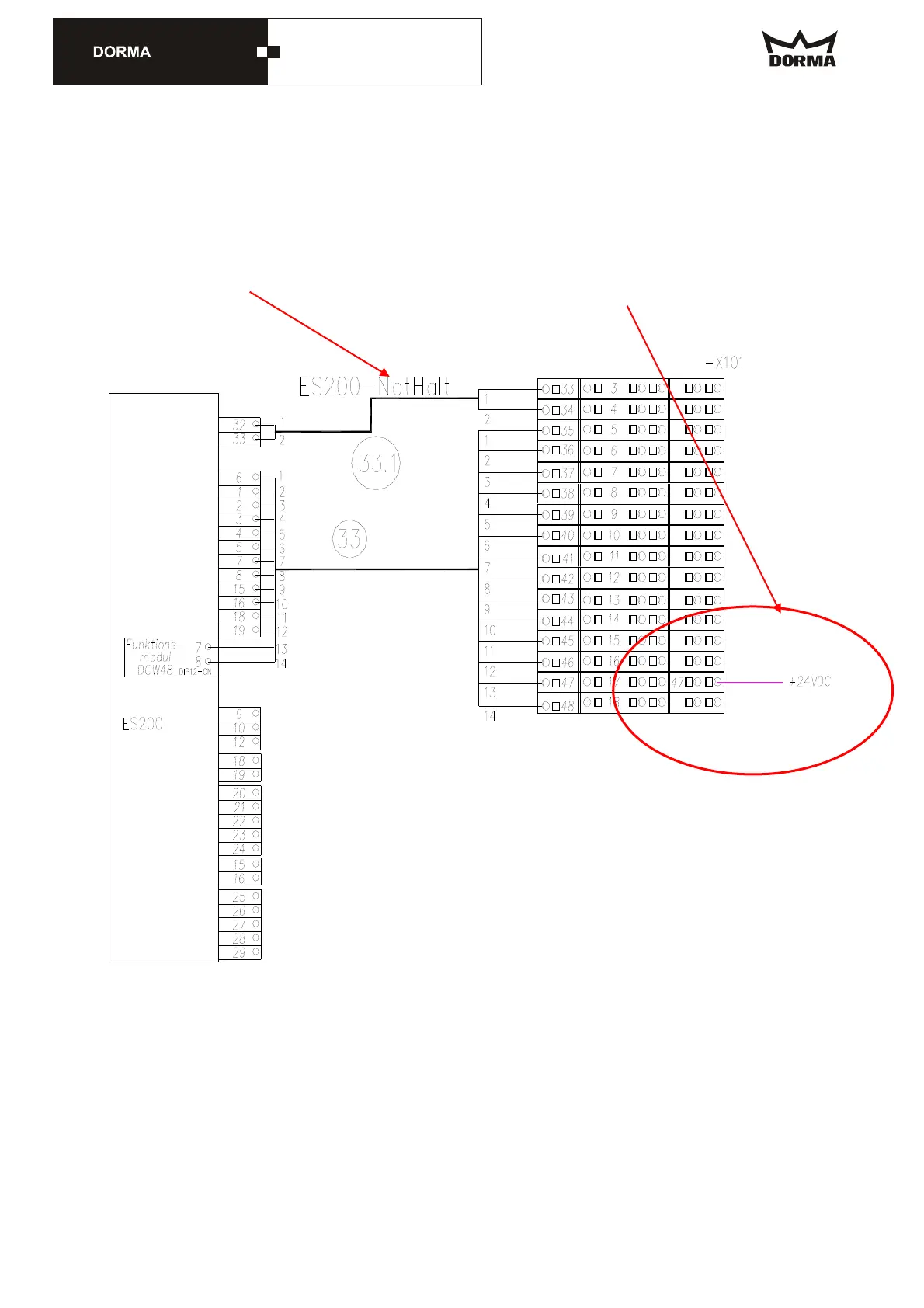

8. Adjust the crossover cable from the MS9 control system to ES200.
Connect the delivered 2-wire cable „33.1 ES200-Not Halt“ with the terminals –
X101:33/34 and ES200:32/33. Remove bridge (ES200: 32-33) at ES200 beforehand.
New connection Terminal “47” is connected to
+24VDC
