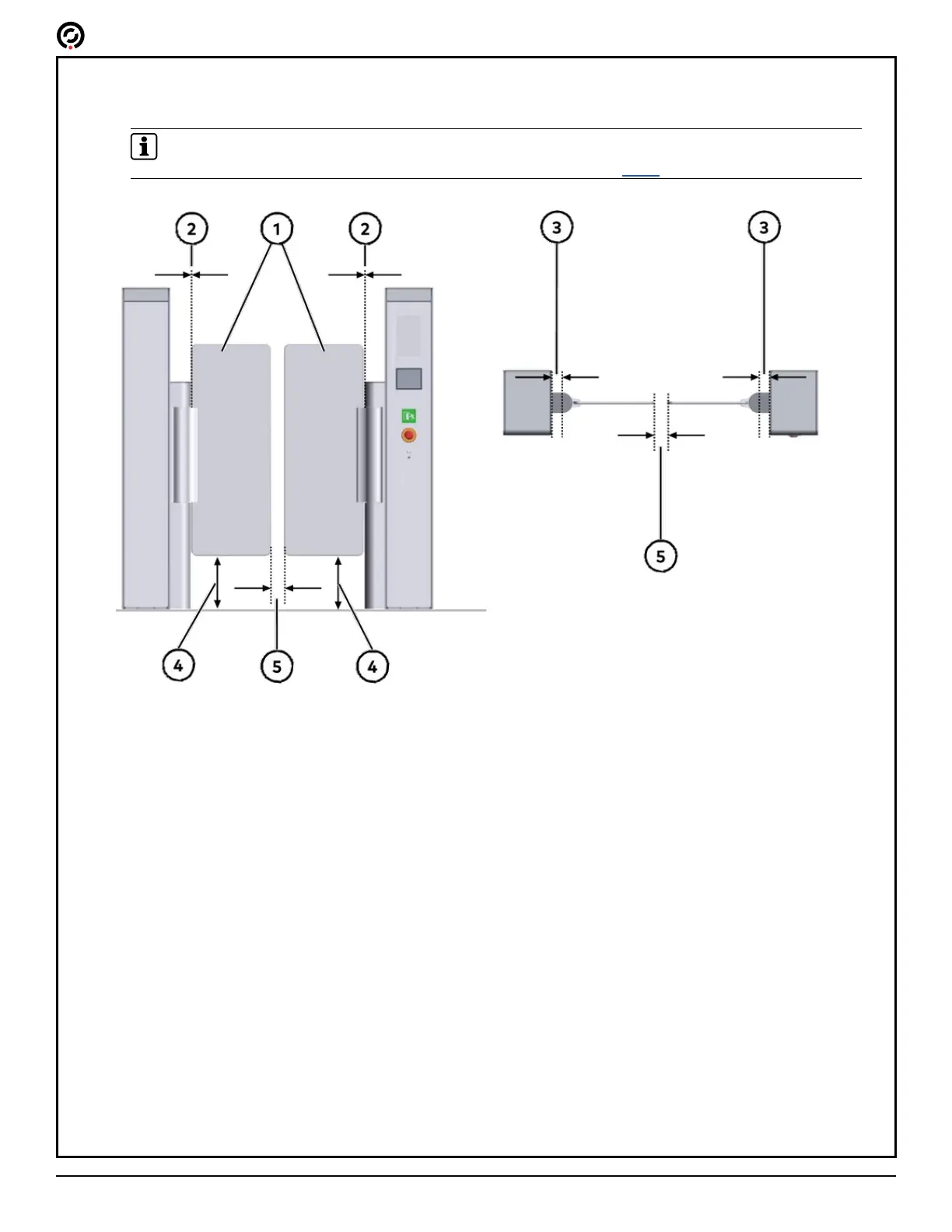

2.6 Danger zones
1 Front edge of the door wing (main closing edge)
Type of danger Impact, crushing
2 Trapping point between the drive column and door wings
Type of danger Crushing
3 Fixed closing edge opposite the main closing edge (opposite closing edge)
Type of danger Crushing
4 Trappingpointbetweenthebottomedgeofthedoorwingandtheoor
Type of danger Crushing
5 Area between the door wings
Type of danger Crushing
This chapter uses a passage side to show the danger zones.
On the opposite passage side, these danger zones are mirror-inverted.
The impact of these danger zones is minimized by the Safety equipment [
} 2.7]
