dormakaba Universal Patch Fittings PT30
Installation Instructions
833002 07-2019Universal Patch Fittings
5
Overall
Install gaskets

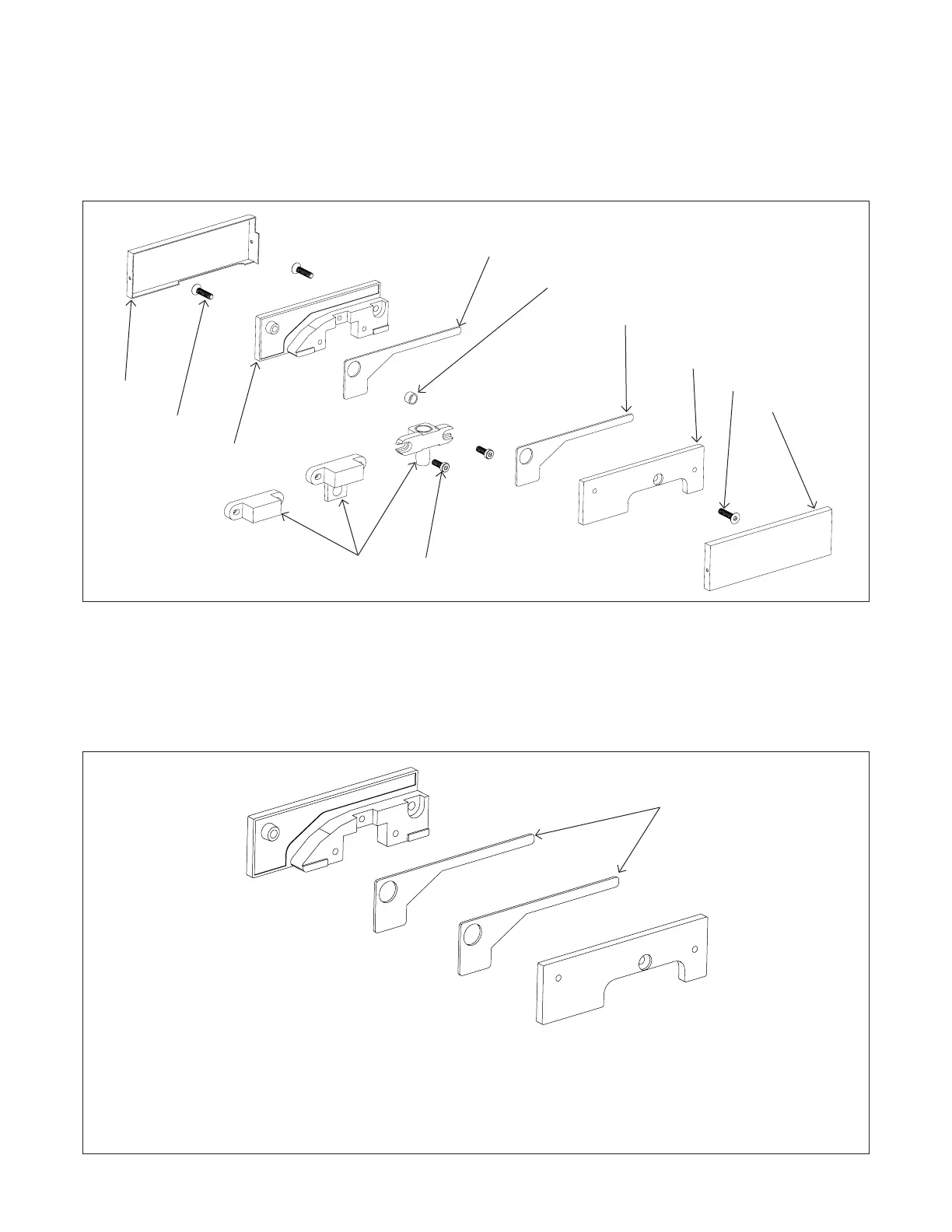

. Overall
2 Installation instructions
Fig. 
2.1 Covers
2.2 Patch plates/fitting
2.3 Gaskets
2.4 Pivot/blank/stop
(application dependent)
2.5 Insert fasteners (2x included)
2.6 Patch fasteners (3x included)
2.7 Glass grommets (1x included)
2.2.1 If have 1/2” [13] or 3/4” [19] glass:
• Fittings will come with 2mm [3/32”] glass
gaskets pre-secured.
2.1
2.7
2.6
2.4
2.3
2.2
2.5
2.6
2.1
2.2
2.3
2.2.2 If have 3/8” [9] or 5/8” [15] glass:
• Fittings will come with 2mm [3/32”] glass
gaskets pre-secured.
• PLUS additional (2) 3mm [1/8”] glass gaskets.
• Remove 2mm gaskets and replace with 3mm
gaskets.
Glass gasket
. Install the gaskets
Fig. 
