Dormakaba PT30 - Install door (for pivot insert only); Install covers

dormakaba Universal Patch Fittings PT30
Installation Instructions
833002 07-2019Universal Patch Fittings
7

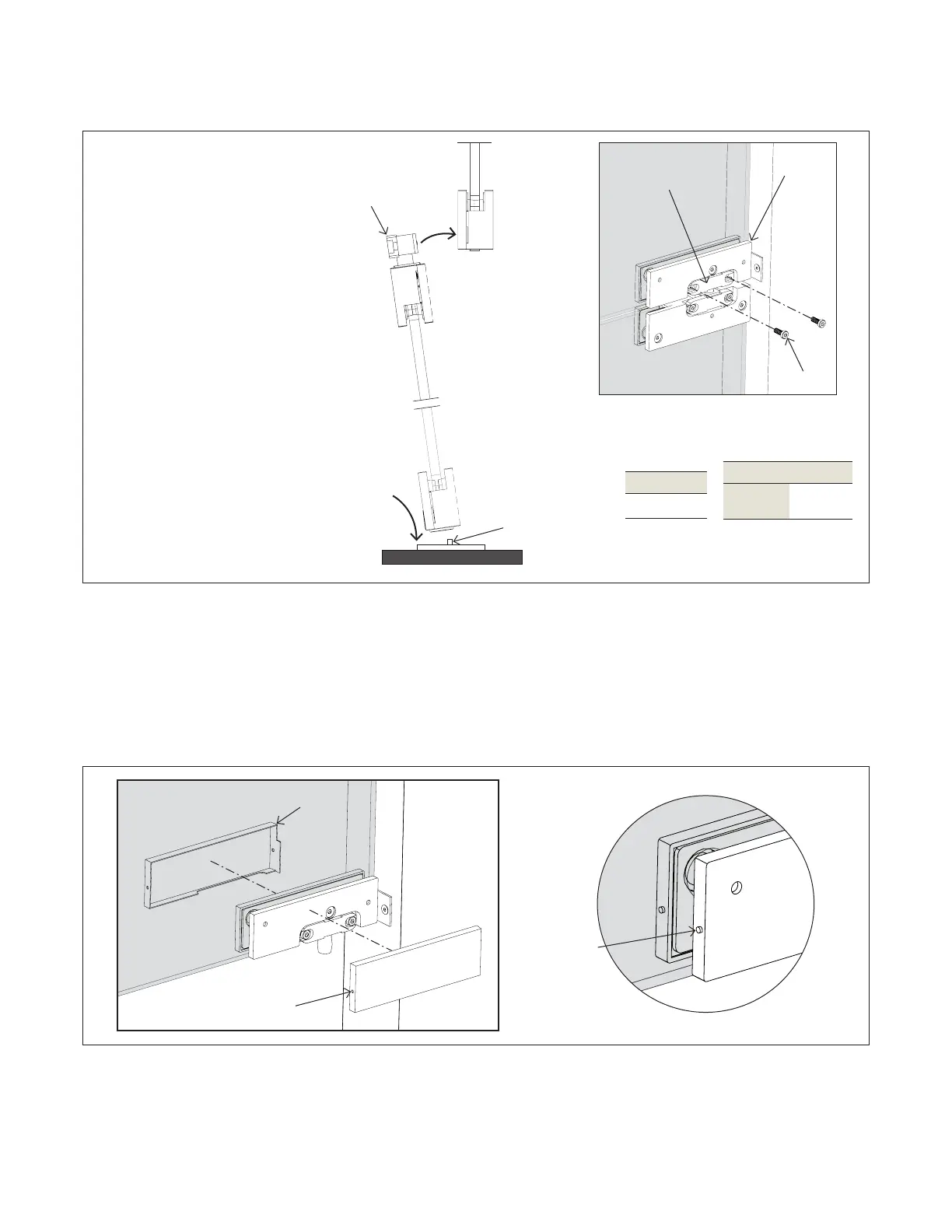

Install door (for pivot insert only)
Covers
. Install door (for pivot insert only)
Fig. 
Torque value
PT30
insert
9 ft lbs
[12Nm]
Hex key size
5mm
PT30
pivot
insert
PT30
M6x16
2.7.1 Aligh hole in cover with spring pin on end of
fitting.
2.7.2 Snap covers onto patch fittings.
2.7.3 To remove:
• Depress spring pin and pop cover off.
. Install covers
Fig. 
PT20
PT30
PT10
Floor
pivot
spindle
2.6.1 Place bottom patch
fitting onto floor pivot
spindle.
2.6.2 Tip glass panel up and
align PT30 pivot insert
with PT30 patch
fitting.
2.6.3 Secure insert with
included M6x16 socket
head screws.
PT30
pivot
insert
Hole in cover
Cover
Spring pin
