8 Quantum II RFID ECU PK3724_T 05-19
5 Wiring the ECU

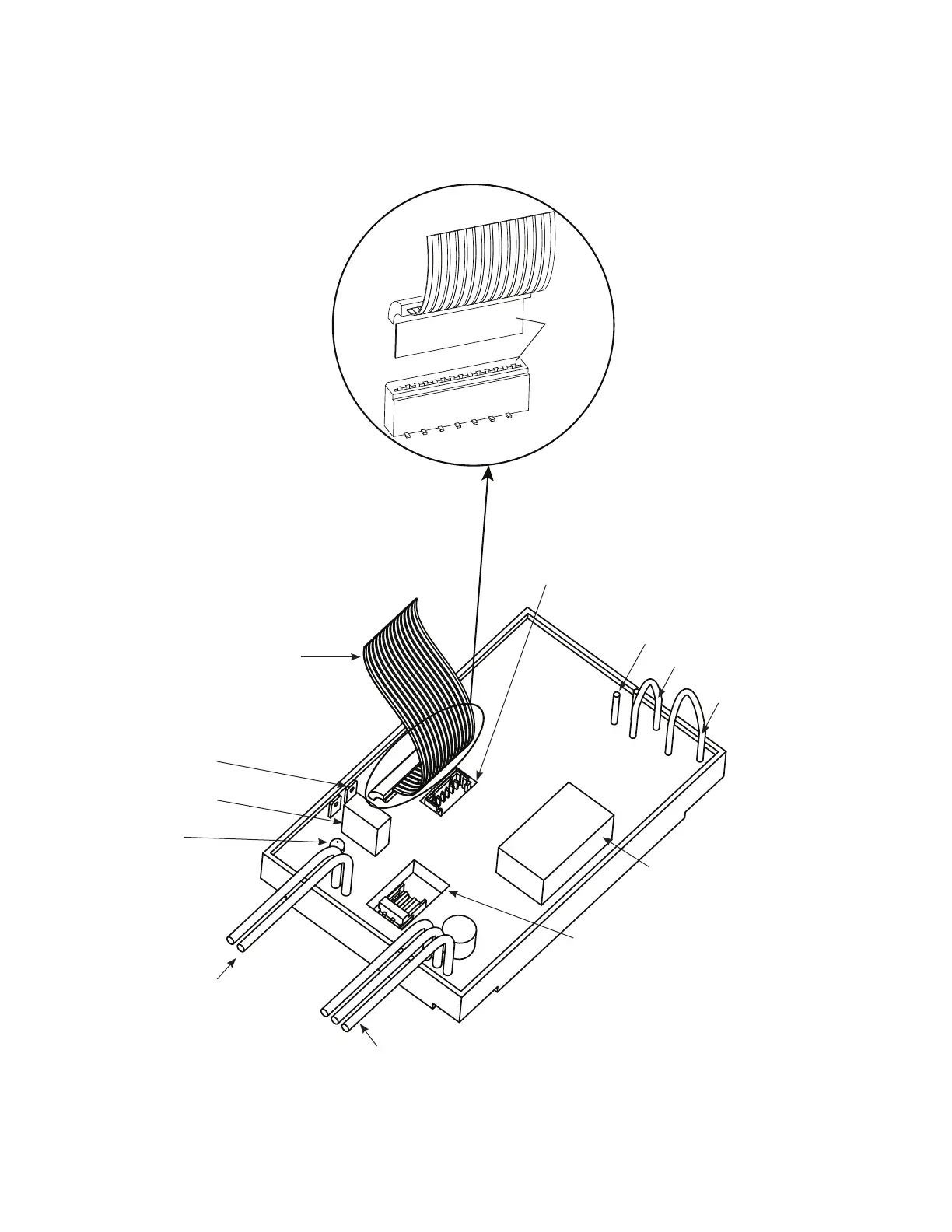

Figure 8
Reader Ribbon
MCC communication port
Yellow Loop
Door ajar input. Leave CUT
Brown Loop
Dead bolt input. Leave INTACT
Orange Loop
Cut for 1 second relay cycle
Relay
5 Amp SPDT
Reader power connector
Relay leads
Red = Common (COM)
Blue = Normally Open (NO)
Black = Normally Closed (NC)
Power leads
12 to 24 volts MAX
AC or DC @125mA
Fuse
Saflok PN A28450
1 Amp
Green pilot lamp
(ON when power is applied)
Chassis Ground
Reader ribbon
Gold
Contacts
Figure 9
ECU PCB
