Quantum II RFID ECU PK3724_T 05-19 9
5 Wiring the ECU

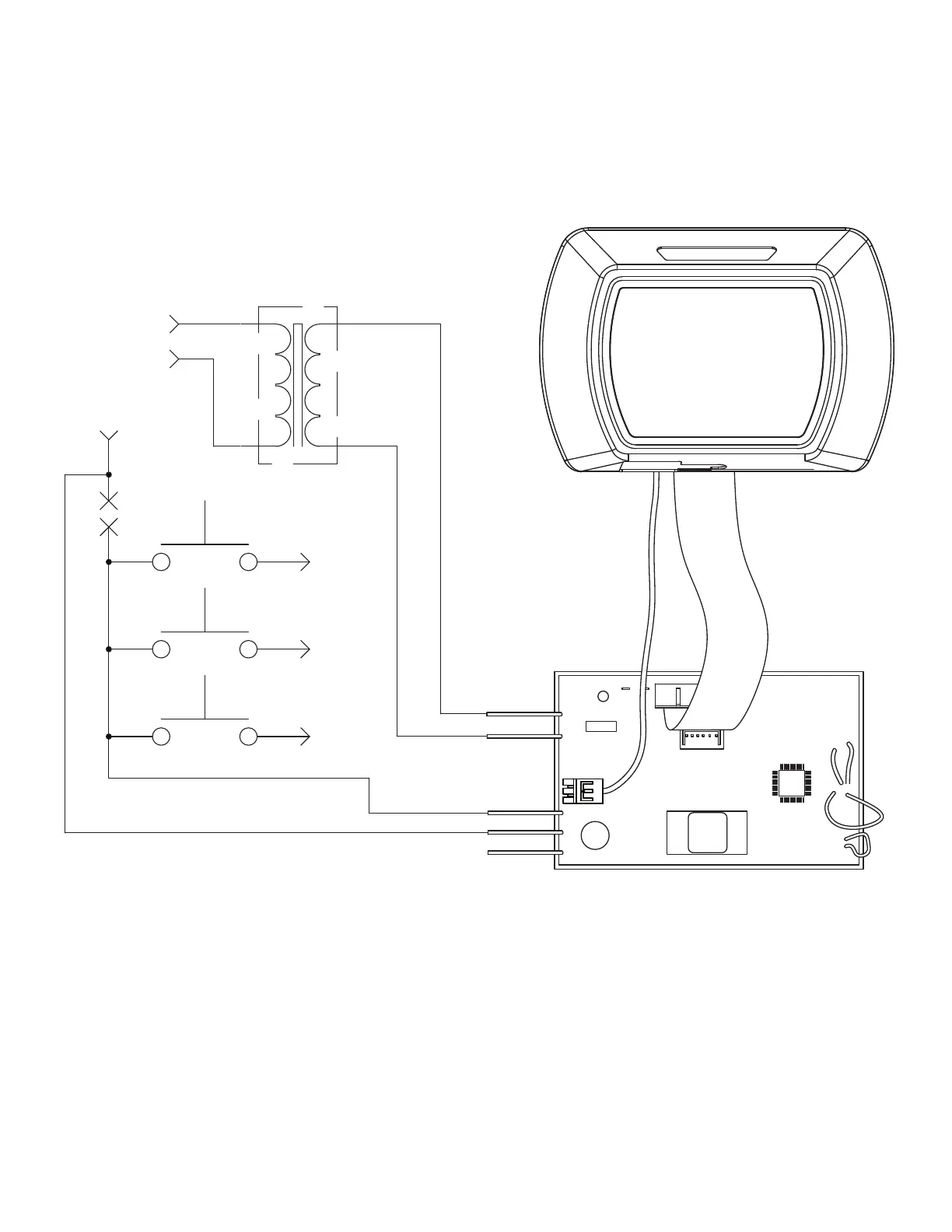

Figure 10
Typical ECU Wiring
Floor call
Button Common
Floor call
Button
Floor call
Button
Floor call
Button
White
White
Blue NO
Red COM
Black NC
12 to 24 Volts AC or DC
Not Supplied
