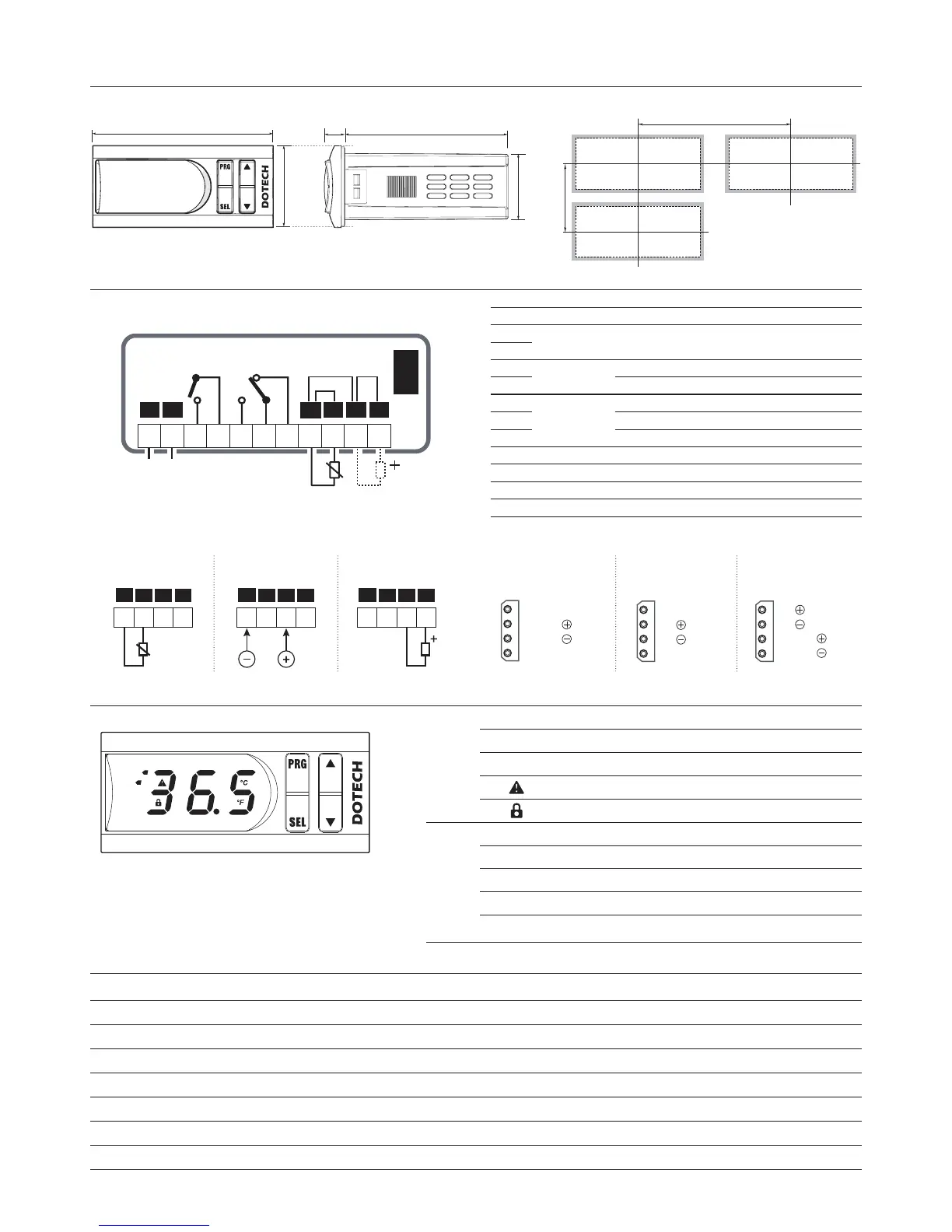

DOTECH FX3D - Physical Dimensions and Panel Cut-Out; Controller Dimensions; Wiring and Connections; Main Wiring Diagram

- 2 -
R20150924
35
78
70
28
8
UNIT : mm
90
40
(Panel Cut-Out : 71mm X 29mm)
FX3D
OUT1
OUT2
Dimensions and Panel Cut-Out Form
Wiring
Constitution
(Function of Display Lamp and Button)
LED
OUT1 Turn on when output #1 is ON (Flickering at standby)
OUT2 Turn on when output #2 is ON (Flickering at standby)
°C / °F
Celsius / Fahrenheit display units
ON at trip, Flickering at alarm
Parameter set up locked
BUTTON
PRG
Use at program setup
SEL
Execute selected menu or Input setup value
▲
Move between menus & Increase setup value
▼
Move between menus & Decrease setup value
PRG
+
▼
If pushing for 10 sec. at the same time ,
setup value is initialized
Code Menu Description / Instructions
Response at
Detection
Reset Type
SYS
Internal Parameter Error In Case of change of set value by an unknown case. Immediate Stop Automatic Reset
OPN
Sensor Open In case of Input sensor open wire(Normal operation after sensor connecting) Immediate Stop Automatic Reset
SHT
Sensor Short In case of Input sensor short circuit Immediate Stop Automatic Reset
LLL
Lower Input Lower sensor input than measuring range Immediate Stop Automatic Reset
HHH
Higher Input Higher sensor input than measuring range Immediate Stop Automatic Reset
ALL
Lower Low Limit Lower Low Limit Alarm than Low Limit Alarm Value Immediate Stop Automatic Reset
ALH
Higher High Limit Higher High Limit Alarm than High Limit Alarm Value Immediate Stop Automatic Reset
Trip / Alarm Messages
※
In case of error occurring, the following messages are ickering at every 0.5 sec. intervals.
L2L1
100-240Vac,
50/60Hz
1 2 3 4 5 6 7 8 9 10 11
NTC
OUT1 OUT2
+VDCCOM
FX3D
OPTION
MODULE
c
mA
5A, 250Vac
POWER
SUPPLY
NTC
4~20mA TRANS.
8 9 10 11
NTC +VDCCOM mA
NTC
8 9 10 11
NTC +VDCCOM mA
8 9 10 11
NTC +VDCCOM mA
1
2
3
4
4~20mA
4~20mA
SG
RED
WHITE
BLACK
-A1 Model
4~20mA Output
1
2
3
4
TRX
TRX
SG
RED
WHITE
BLACK
-R4 Model
RS485 COMM.
1
2
3
4
TRX
TRX RED
BLUE
WHIT
E
BLACK4~20mA
4~20mA
-A1R4 Model
4~20mA Output
& RS485 COMM.
8 9 10 11
NTC +VDCCOM mA
NTC
8 9 10 11
NTC +VDCCOM mA
8 9 10 11
NTC +VDCCOM mA
8 9 10 11
NTC +VDCCOM mA
NTC
8 9 10 11
NTC +VDCCOM mA
8 9 10 11
NTC +VDCCOM mA
Sensor connection Option Module connection
NTC temp. sensor 4~20mA
signal input
4~20mA loop
power sensor
NO Connection Description
1
POWER 100-240Vac, 50/60Hz
2
3
OUT1
Relay output OUT1 when closed
4 Common signal
5
OUT2
Relay output OUT1 when closed
6 Common signal
7 Relay output OUT1 when open
8 COM Common signal
9 NTC Temp. sensor input
10 mA 4~20mA signal input
11 +Vdc 4~20mA sensor power (12Vdc)
