40
(Panel Cut-Out : 71mm X 29mm)
L2L1
100-240Vac,
50/60Hz
1 2 4 5 6 8 9
NTCCOM
FX3S
c
16A, 250Vac
POWER
SUPPLY
NTC
OUT1
+
-
12Vdc
1 2
FX3S-00-T
POWER
SUPPLY
+
-
24Vdc
/ 48Vdc
1 2
FX3S-00-H
POWER
SUPPLY
FX3S
OUT1

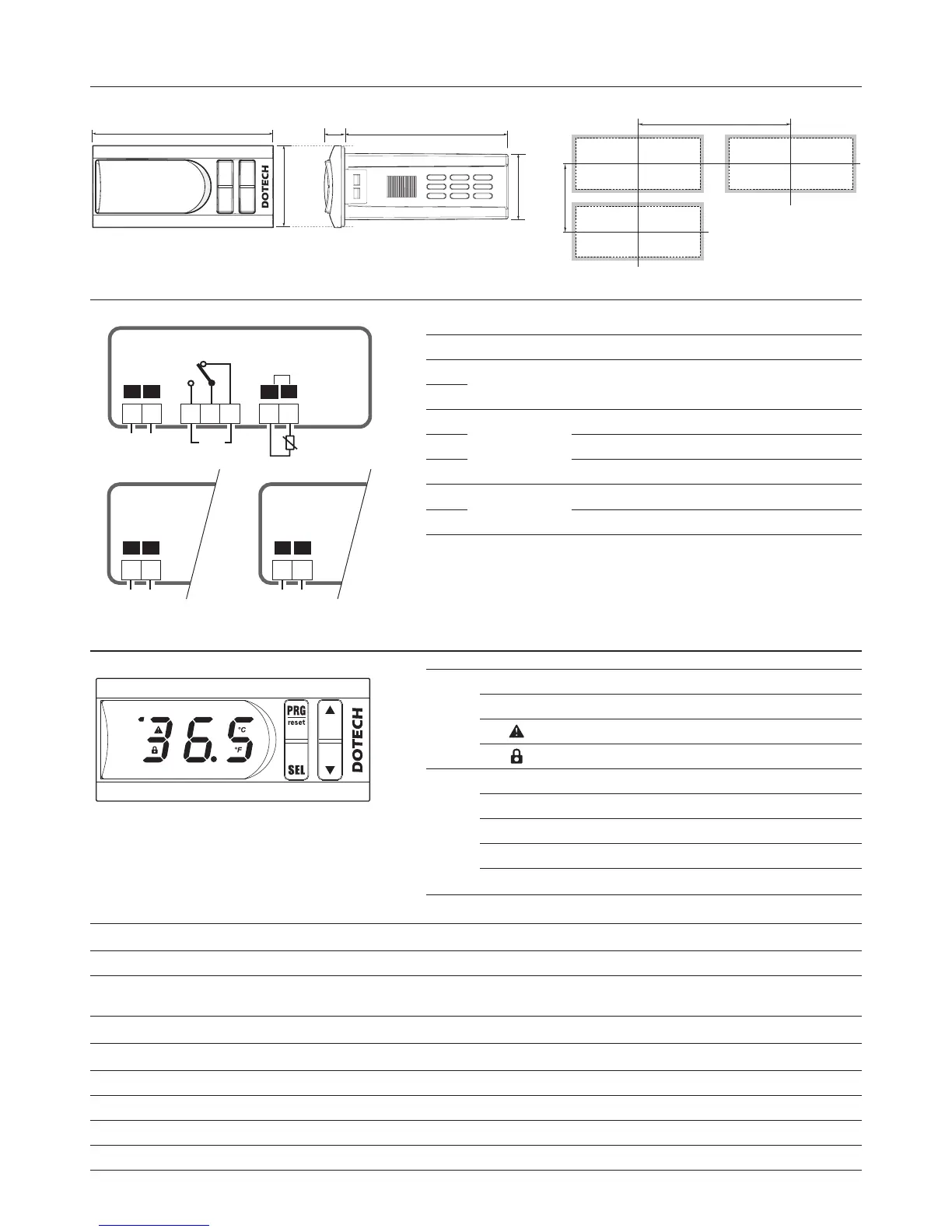

Dimensions and Panel Cut-Out Form
Wiring
Constitution
(Function of Display Lamp and Button)
No Label Description
1
POWER 100-240Vac, 50/60Hz
2
4
OUT1
(Relay output)
Relay output OUT1 when closed
5 Common signal
6 Relay output OUT1 when open
8
SENSOR
(NTC)
Common signal
9 Temperature sensor input
LED
OUT1 Turn on when output #1 is ON (Flickering at standby)
°C / °F Celsius / Fahrenheit display units
ON at trip, Flickering at alarm
Parameter set up locked
BUTTON
PRG
Use at program setup
SEL
Execute selected menu or Input setup value
▲
Move between menus & Increase setup value
▼
Move between menus & Decrease setup value
PRG
+
▼
If pushing for 10 sec. at the same time ,
setup value is initialized
Code Menu Description / Instructions
Response at
Detection
Reset Type
DEF
Natural defrost Present temperature and
DEF
message display by turns at natural defrost. Immediate Stop
Code Menu Description / Instructions
Response at
Detection
Reset Type
SYS
Internal
Parameter Error
In Case of change of set value by an unknown case. Immediate Stop Automatic Reset
OPN
Sensor Open In case of Input sensor open wire(Normal operation after sensor connecting) Immediate Stop Automatic Reset
SHT
Sensor Short In case of Input sensor short circuit Immediate Stop Automatic Reset
LLL
Lower Input Lower sensor input than measuring range Immediate Stop Automatic Reset
HHH
Higher Input Higher sensor input than measuring range Immediate Stop Automatic Reset
Trip / AlarmLARM MESSAGES
Display Message
※
In case of error occurring, the following messages are ickering at every 0.5 sec. intervals.
