1. INTRODUCTION
1.1. General Description
The Bluetooth
®
Controller (part number BT-PP20-A) is a Bluetooth enabled lighting xture controlling device. The device
provides individual or multi-xture control based on the wiring conguration (one-to-one or one-to-many). The device
provides ON/OFF and 0-10v dimming control of the xture(s).
Each device is capable of communicating with other Douglas Lighting Controls Bluetooth enabled devices (occupancy
sensors, gateways, and wall station switches) via the Bluetooth mesh network.
Commissioning is conveniently done at deck level with our free smartphone App using Bluetooth communication
(smartphone must have Bluetooth capability).
2. DESIGN FEATURES
• Tinned and snipped, colour coded wires
• Threaded ½” knockout chase nipple with lock ring washer
• Bluetooth enabled for deck level conguration and wireless mesh networking
• LED status indicator
• 12VDC output to power DLC Bluetooth Sensor ( BT-WOR-A )
• Demand Response Ready

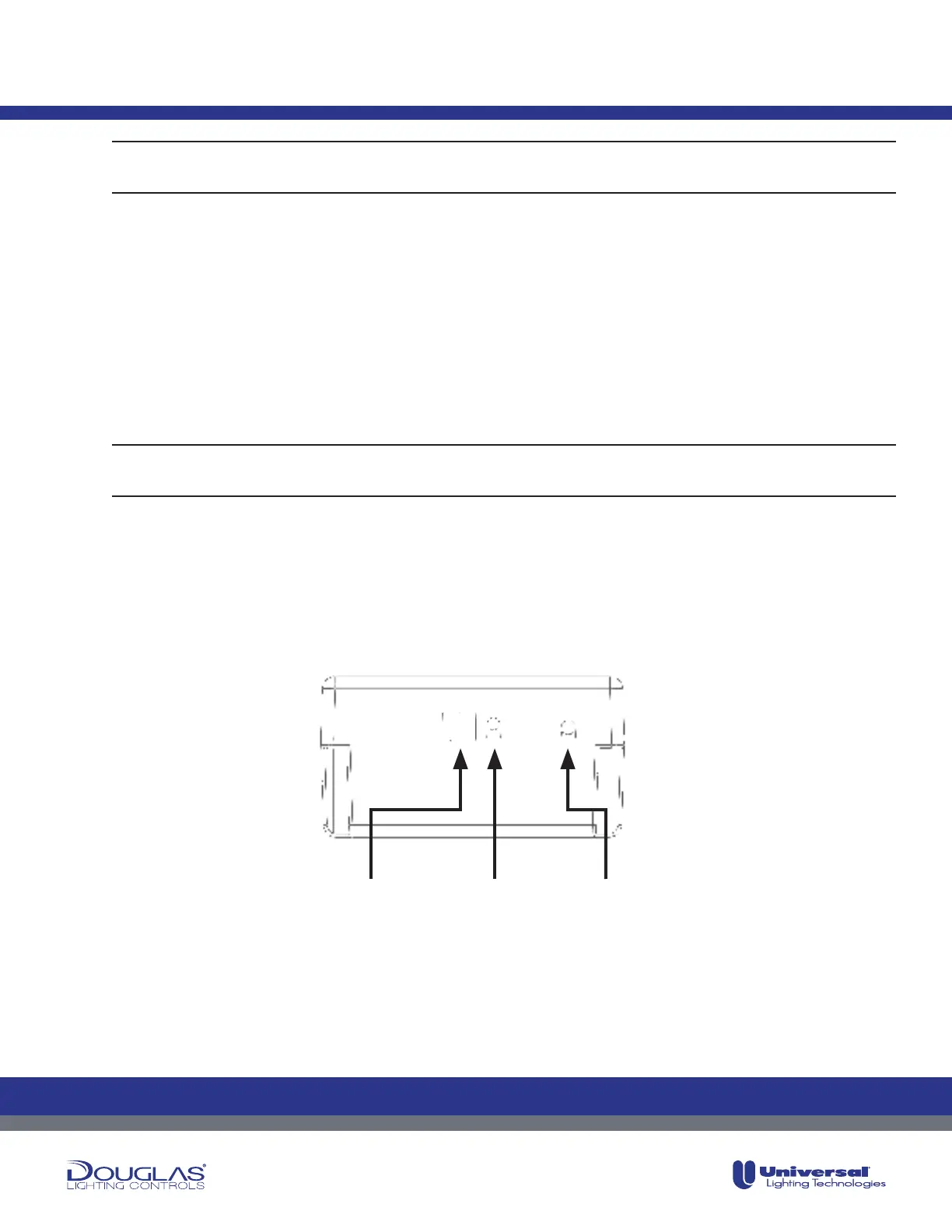

12VDC output
for
BT-WOR-A
LED Status
Indicator
Factory Reset
