Dovre 2000S - Page 12

2000 12 03.27817.100
Chimney
Refractory cement
or special con-
ne ctor
Insulation
(min 10 cm)
Fireproof wall min
10 cm
Combustible wall
Convection area
Fresh air inlet
Fireproof floor Combustible floor
Convection
air inlet
Insulation
(if necessary)
Convection
Air outlet
Opening against
eventual pressure
buildup
Stainless steel
pipe
Insulation
Combust i-
ble ceiling
Fireproof ce i-
ling
Cover plate

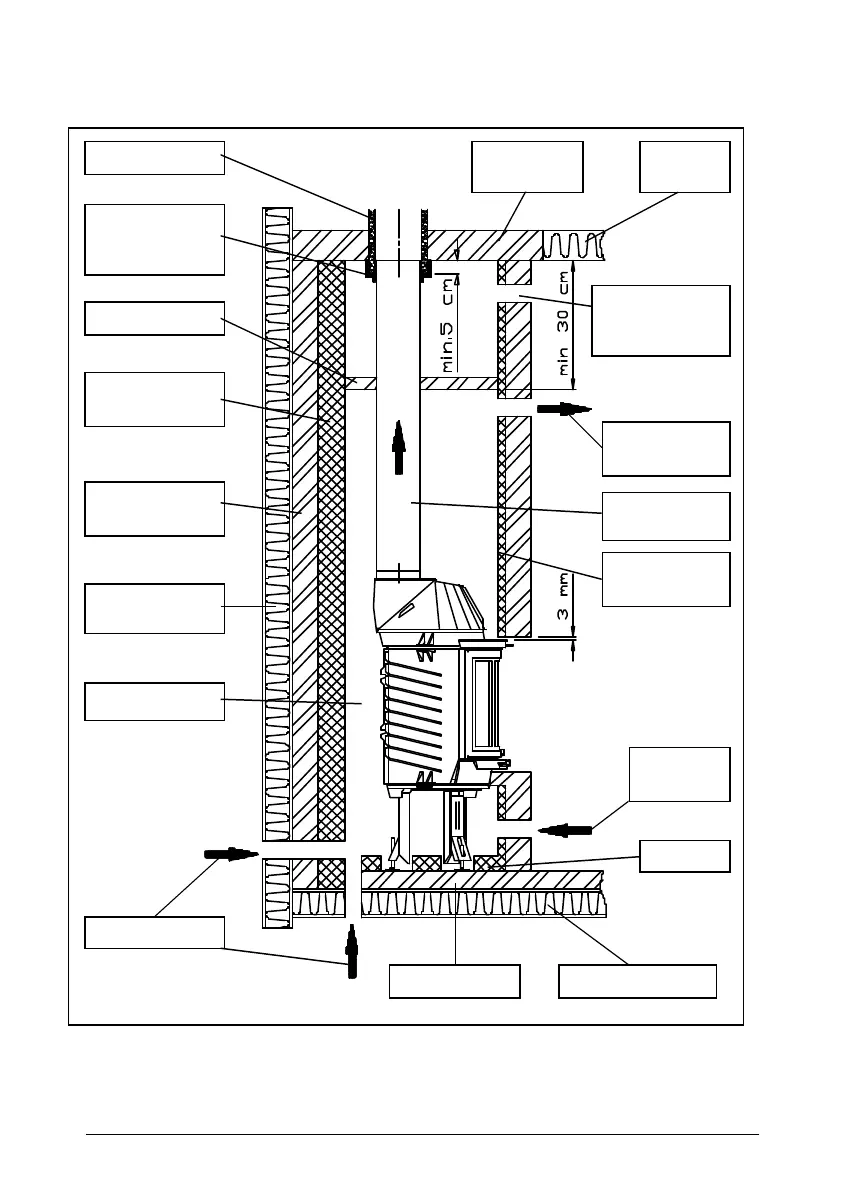

Example of fireplace installation within combustible material
