φ12 mm
80-85 mm
Installation of Battery Box

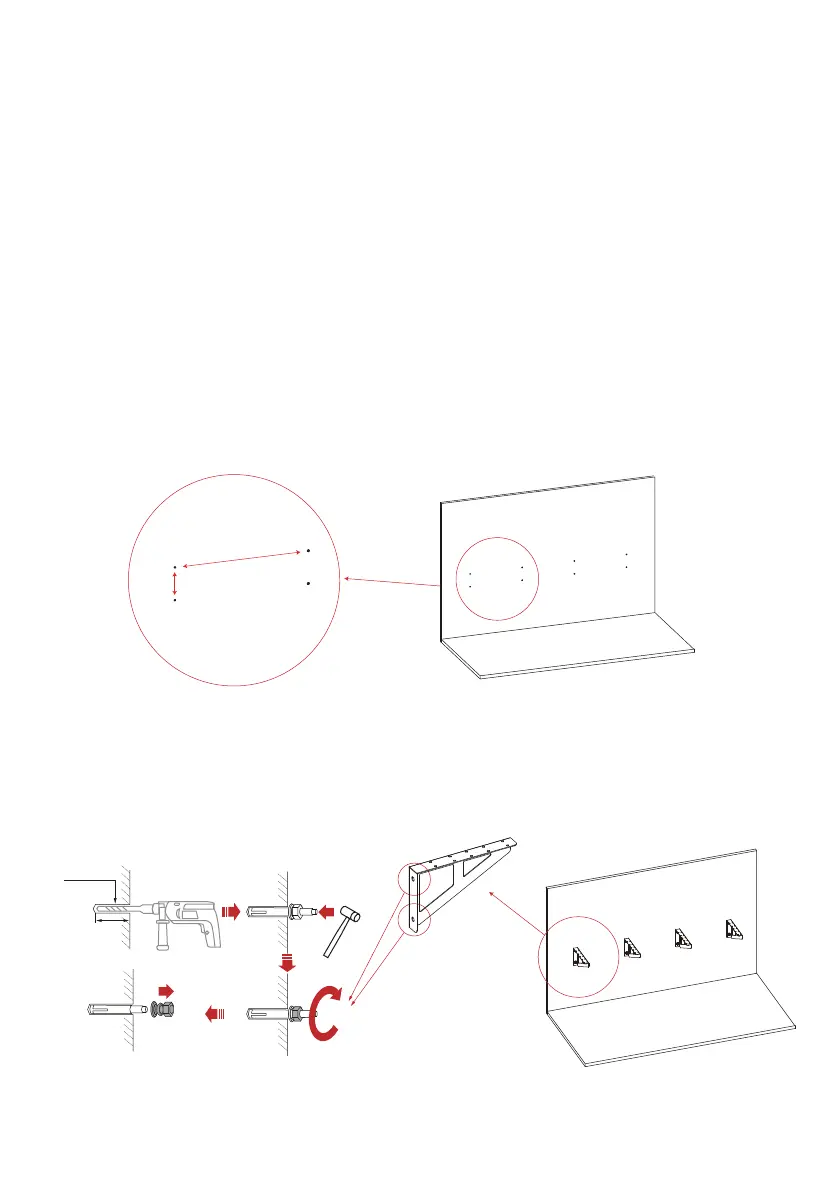

Punch hole on the wall
2. Confirm the quantity and position of fixing holes, 2 holes per column, the hole
spacing is 120mm; column spacing is 484mm, the hole below is at least 350mm from the ground.
1-2 batteries: 2 column holes;
2-4 batteries: 3 column holes;
5-6 batteries: 4 column holes;
7-8 batteries: 5 column holes;
3.This quick guidance is based on 6 batteries.
4. Positioning the hole on the wall, punch hole with impact drill, the diame
ter
is 12mm, depth is 80-85mm. Press the expansion bolt into the punched hole.
1. Choose a suitable position to place battery on the cement wall or brick wall.
Fix the battery bracket to the wall.
120mm
484mm
