Dowell iPack C3.3 - Product Overview; Application Scenarios; Product Features

Junction Box Installation

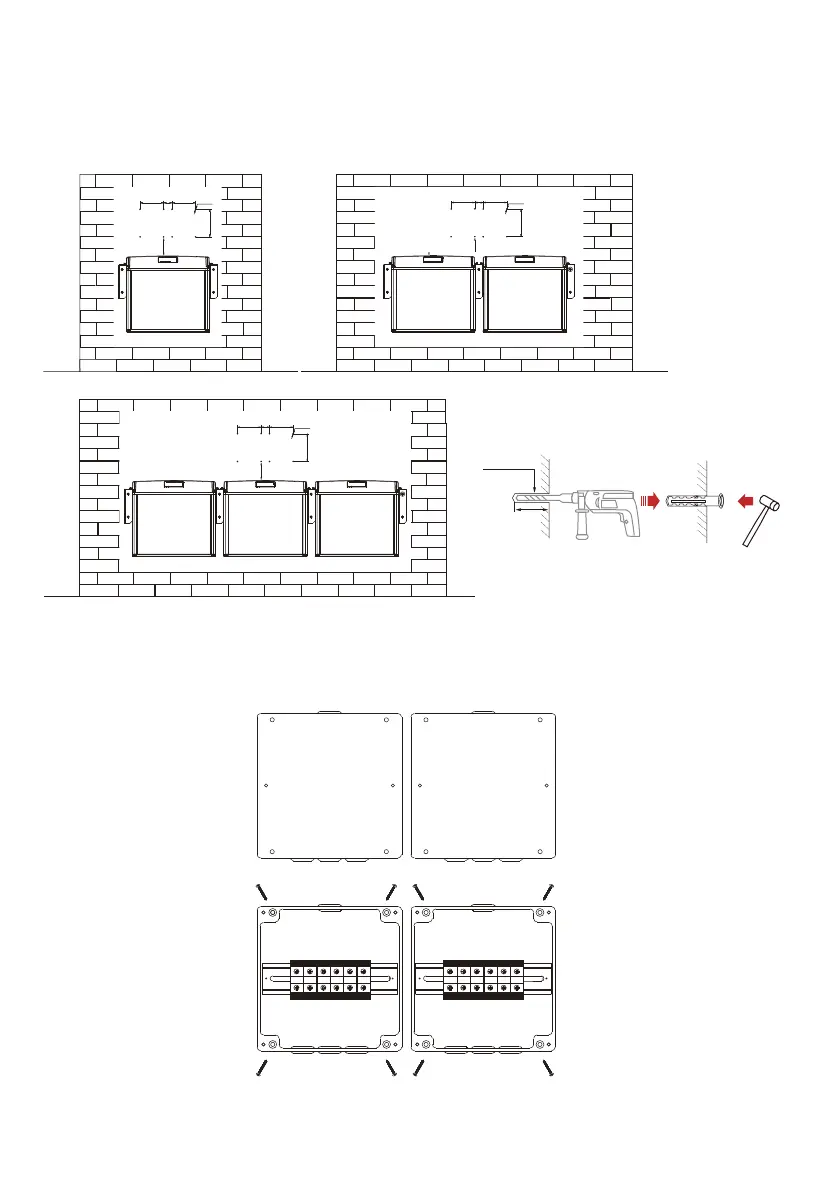

Punch 8 holes with a diameter of 6mm on the wall where fixed the junction box, the horizontal
hole spacing is 126mm, the vertical hole spacing is 146mm, the depth is 50-55mm, and place
the plastic expansion tube 6*30 in the hole.
Use M4*30 screws to fix the Junction box to the wall through the 8 fixing holes at the bottom of
the Junction box.
126 45 126 8-φ6
146
80-100
126 45 126
8-φ6
146
350-450
126 45 126
8-φ6
146
200-300
φ6 mm
50-55 mm
