iPack C3.3 Lithium Iron Phosphate Battery

Residential Energy Storage System

User Manual

Date: 2021-03-18

Detect the voltage and temperature of cell, the voltage and current of battery.

• SOC estimate:

Indicate the precise volume of remaining electricity.

• Alarm:

Alarm when overvoltage, under voltage, overcurrent, over temperature or under temperature occurs.

• Protection:

Protect against over voltage, under voltage, over current, over temperature, under temperature, cell fault

and hardware failure.

• Report:

Report alarm messages and operation data to PCS via CAN network ports.

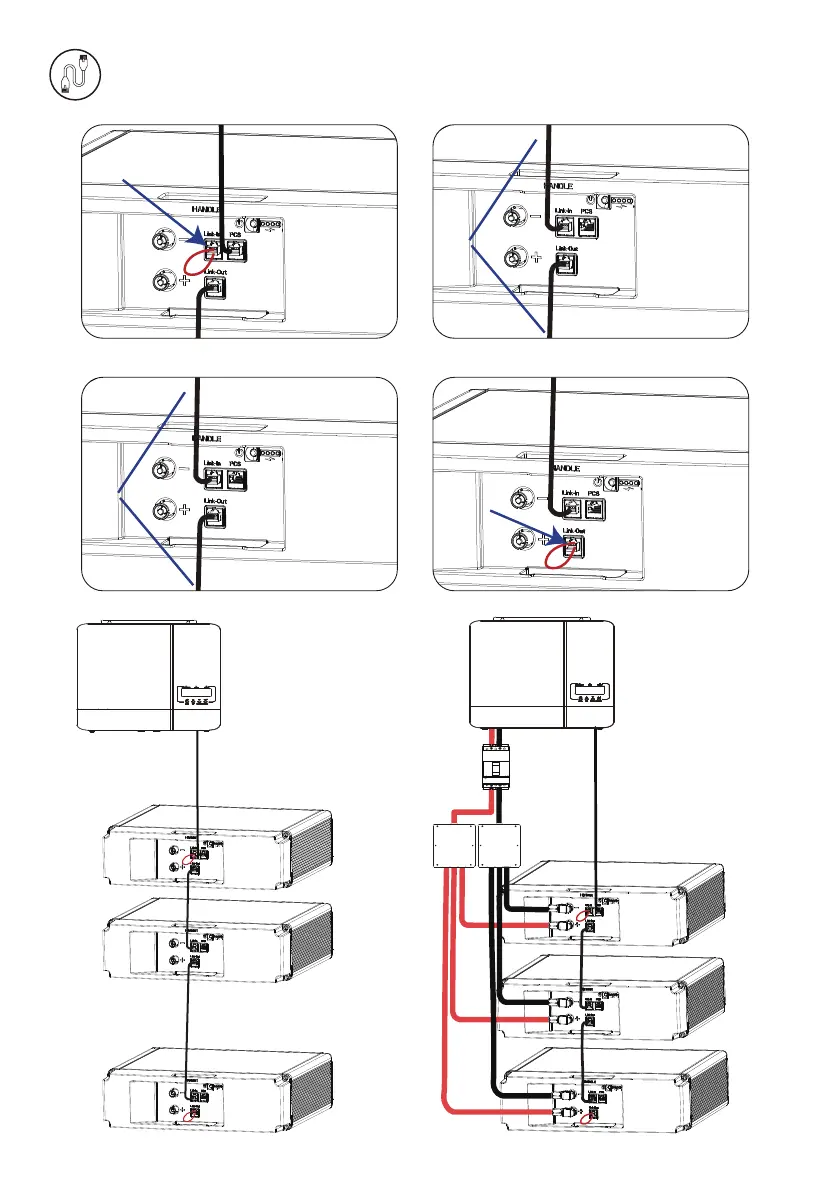

• Parallel connection:

Support a maximum of 6 batteries in parallel connection.

• Power-off triggered by fault:

%DWWHU\SRZHUVRႇLIOHYHOWKUHHXQGHUYROWDJH9FHOORUSDUDOOHOFRQQHFWLRQIDLOXUHKDSSHQV

• Forced power-off:

When battery does not connect to mains supply, hold POWER button for two seconds and battery powers

Rႇ

• Activation:

,QSXW9a9YLD33WHUPLQDOVEDWWHU\ZLOOEHDFWLYDWHGIURPRႇPRGHWRVWDQGE\VWDWXV

2.3 Appearance and Terminals

The battery is an energy storage unit composed of cells, mechanical parts, battery management system (BMS)

as well as power and signal terminals.

Table 2-1 Mechanical features

Parameter Value

Dimension W445*D131*H399.6 mm

Weight Around 29kg

Installation Rack-mounted installation or Wall-mounted bracket installation

445

399.6

131
