D+H RZN 4503-T User Manual

11/12
99.823.83 Rev.: 1.1
Information for Starting

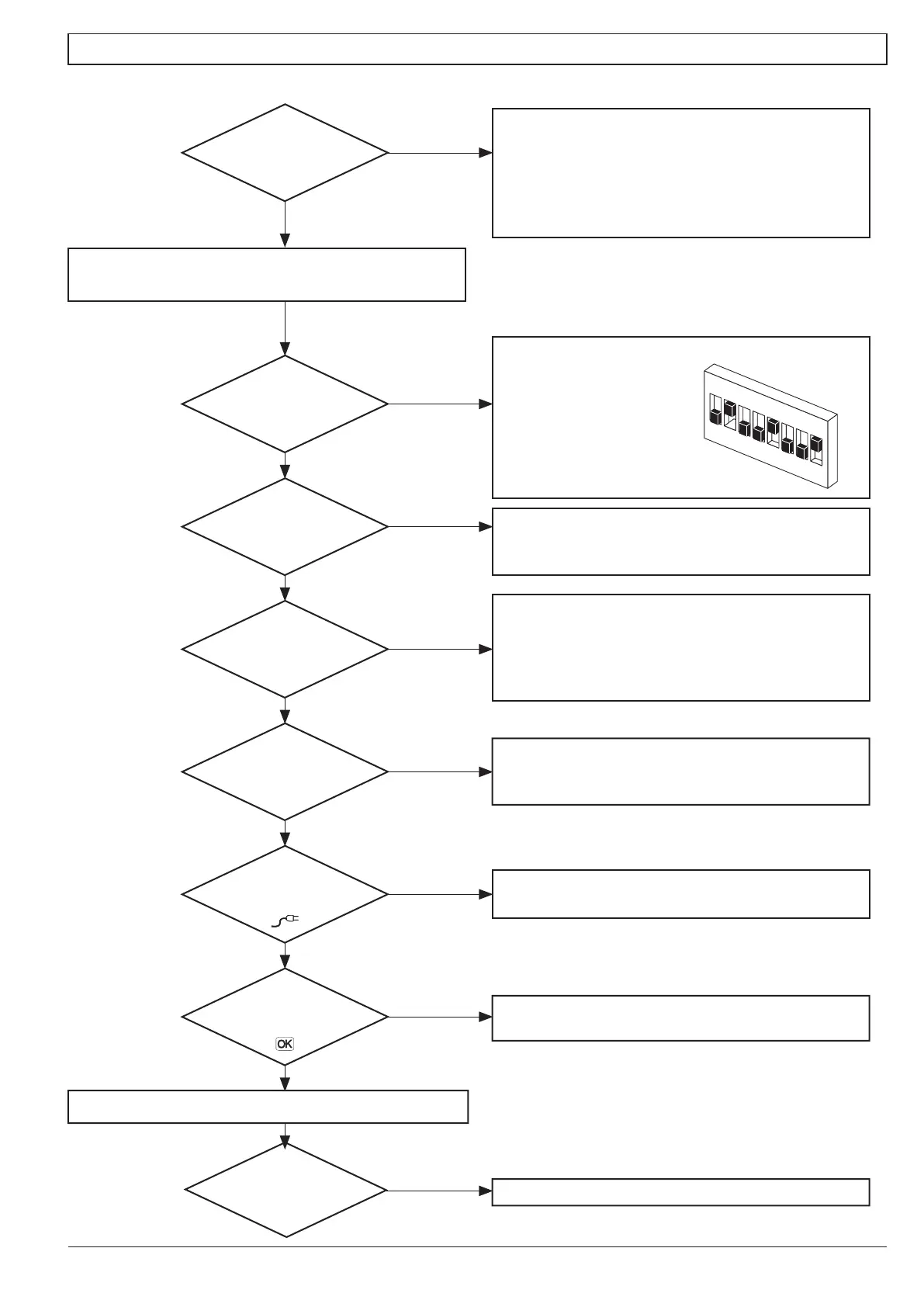

Carry out the following sight and performance checks to switch on the smoke and heat vent
control panel.
yes
no
yes
no
yes
yes
yes
yes
yes
yes
no
no
no
no
no
no
All cables
connected?
All necessary moving loads connected?
Smoke vent components are line-monitored.
Factory-set?
(DIP switch)
10 k resistor in
smoke vent button?
Ω
10 k resistor in
fire detector?
Ω
Terminal module
2 x 47 kΩ in branch box?
Connect mains.
Mains control on?
Connect accumulator
lines. Control on?
Performance check alarm/reset and ventilation.
Smoke vent flap
opens and closes?
Partial or incomplete connection of components can
cause malfunction.
Check the following connections: mains 230 V, drives,
smoke vent buttons, if necessary fire detectors and
vent buttons. See wiring and connection plans
Mounting and Installation.
Set DIP switch S1 on
motherboard as follows:
Resistor must be cramped in electric last button on
binding posts 3/ 8 (RT 43-H) or binding posts 3/ 7
(RT 42). See Mounting and Installation.
Resistance must be cramped in last or only fire detector
on binding post 2 and 4 (type FO/FT). Resistance remains
in control panel between binding post RM 1 and 2, when
no fire detector available.
See connection M .ounting and Installation
Cramp terminal module on last or only drive in branch box
on wire 5 yellow orange, 6 black, 7 black.
See M .ounting and Installation
Check line safety fuse in distribution box and fuse mains in
control panel.
Mains still not available or line switch
on "0", see line switch-off page 9, or one of fuses faulty.
Try changing poles in drive.
factory-set:
12345678
ON
