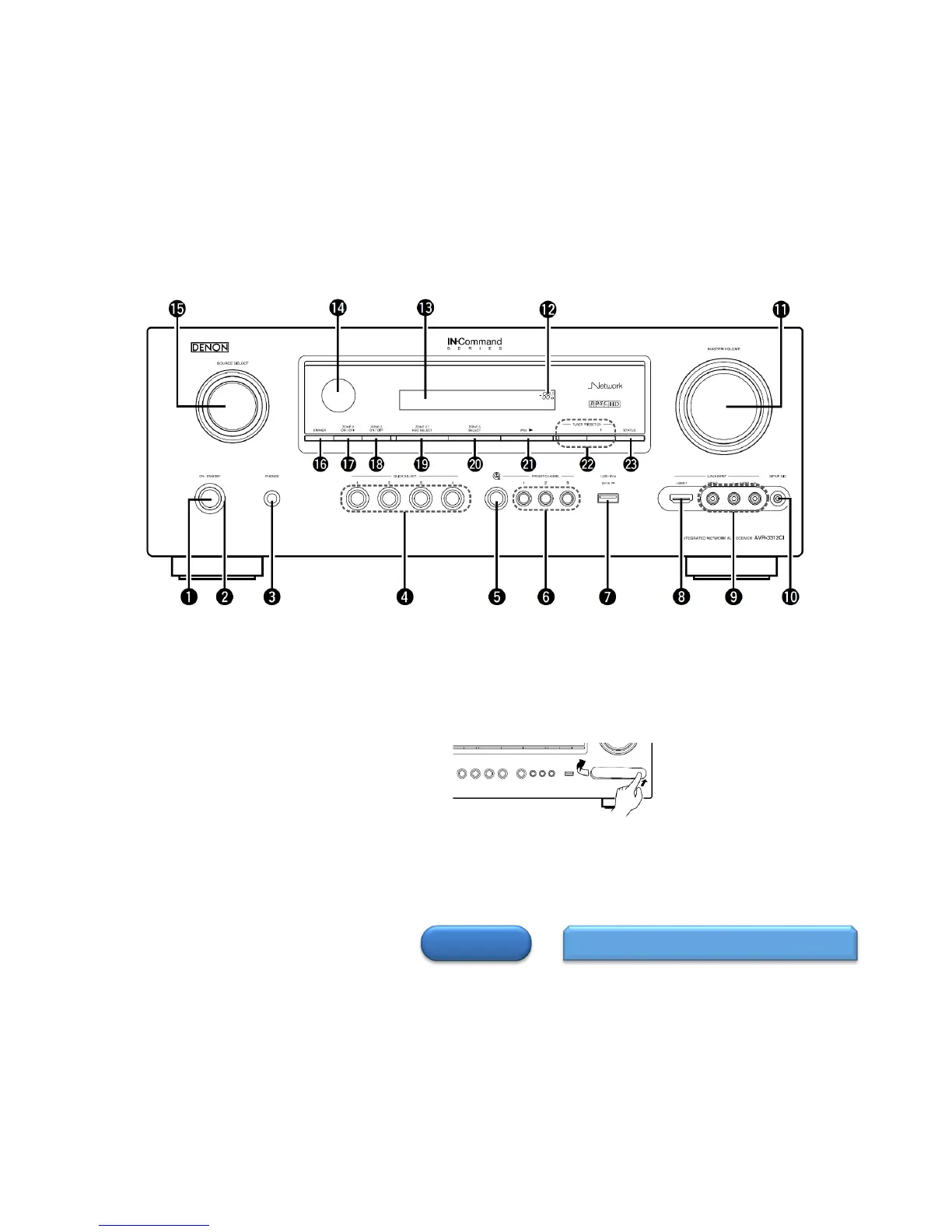

Front Panel
USB/iPod port
HDMI connector
V.AUX INPUT connectors
Remove the cap covering the connectors
when you want to use them.
SETUP MIC jack
MASTER VOLUME control knob
Master volume indicator
Display·
HOME
Display 1
2
Power operation button
(ON/STANDBY)
Turns power to this unit on and off (standby).
Power indicator
Headphones jack (PHONES)
When the headphones are plugged into this jack,
audio will no longer be output from the connected
speakers or from the PRE OUT connectors.
NOTE: To prevent hearing loss, do not raise the
volume level excessively when using headphones.
QUICK SELECT buttons
INTERNET RADIO button
PRESET CHANNEL buttons (1 – 3)
Remote control sensor
SOURCE SELECT knob
DIMMER button
ZONE2 ON/OFF button
ZONE3 ON/OFF button
ZONE2 / REC SELECT button
ZONE3 SELECT button
iPod play button (iPod 1 )
Tuner preset channel buttons
(TUNER PRESET CH +, –)
STATUS button
