MACH 130F/130 Ceiling, Wall, Stand model
Dr. Mach
Lamps and Engineering
2. Operating the lamp Mach 130/Uniflex R96 120V UL
Features of of Mach 130 / Uniflex lamps:
• Mach 130F with focusable light field size and
integrated dielectric filter disk
The reflector is adapted to the dielectric filter
disk.
• Mach 130 with fix-focus and integrated con-
version filter
The reflector is adapted to the conversion filter.
• Mach 130F 22,8V UL with focusable light field
size and integrated dielectric filter disk.
The reflector is adapted to the dielectric filter
disk.
• Uniflex R96 120V UL with focusable light field
size and integrated dielectric filter disk.
The reflector is adapted to the dielectric filter
disk.
The lamp-types mentioned above are available as:
• Mach 130F/130 22,8V / external transformer
• Mach 130F/130 120V / integrated toroid trans-
former
• Mach 130F/130 230V / integrated electronic
transformer and light intensity control
• Uniflex R96 UL 120V / integrated toroid trans-
former
• Mach 130F UL 22,8V / external transformer
2.1 ON/OFF switch,
light intensity control

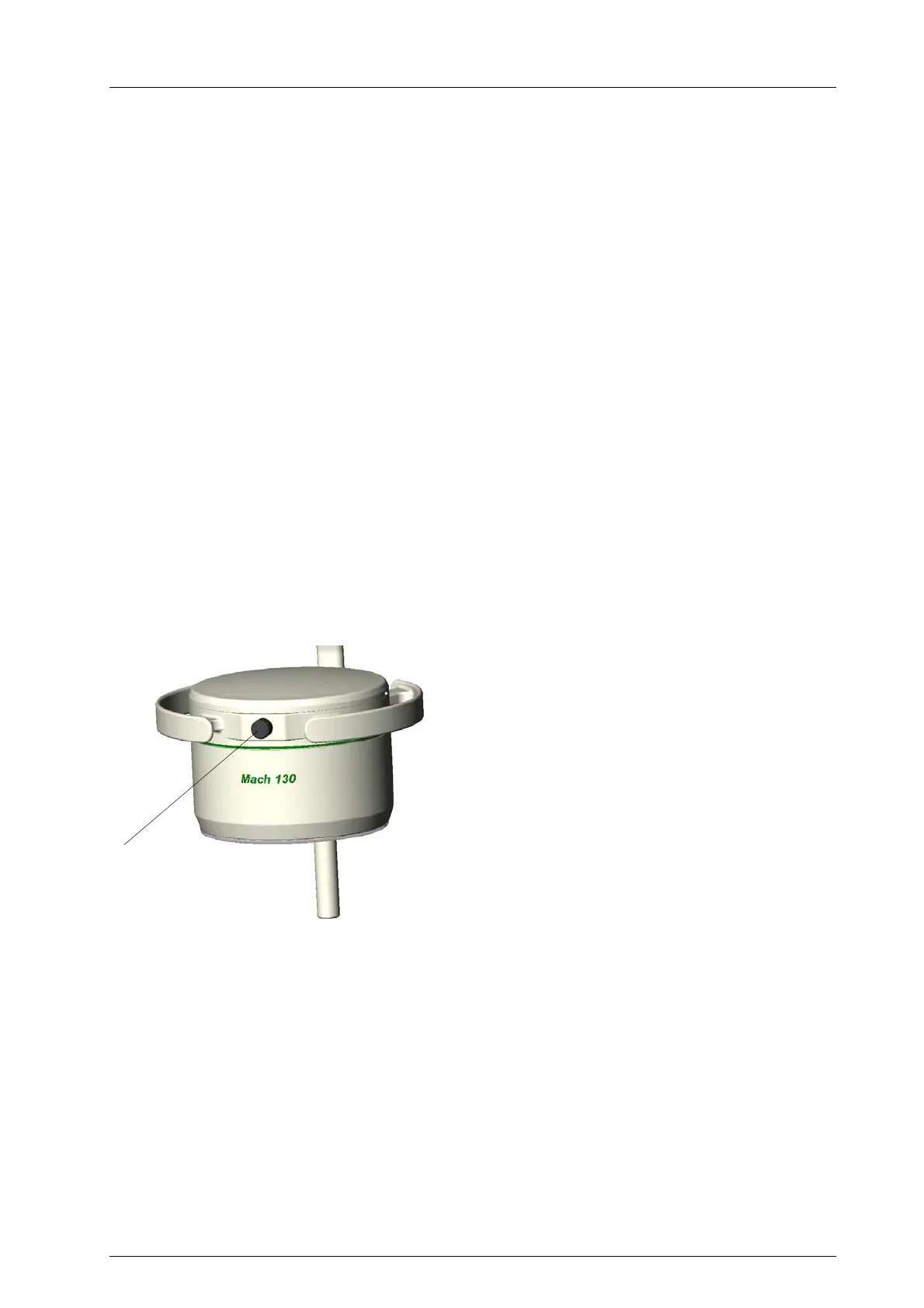

The push button switch 20/67 switches the lamp on
and off.
The lamps with integrated electronic transformer/
230V offer as an additional facility the function of
light intensity control.
To activate the function of light intensity control
turn the push-button switch 21/68.
At lamps with external transformer, in addition to
the push-button switch 20/67 a two-pole switch
ON/OFF must be provided by the customer.
20,21
or 67,68
59100001 Edition 12 07.02.2005 / Bak Page 4/28
