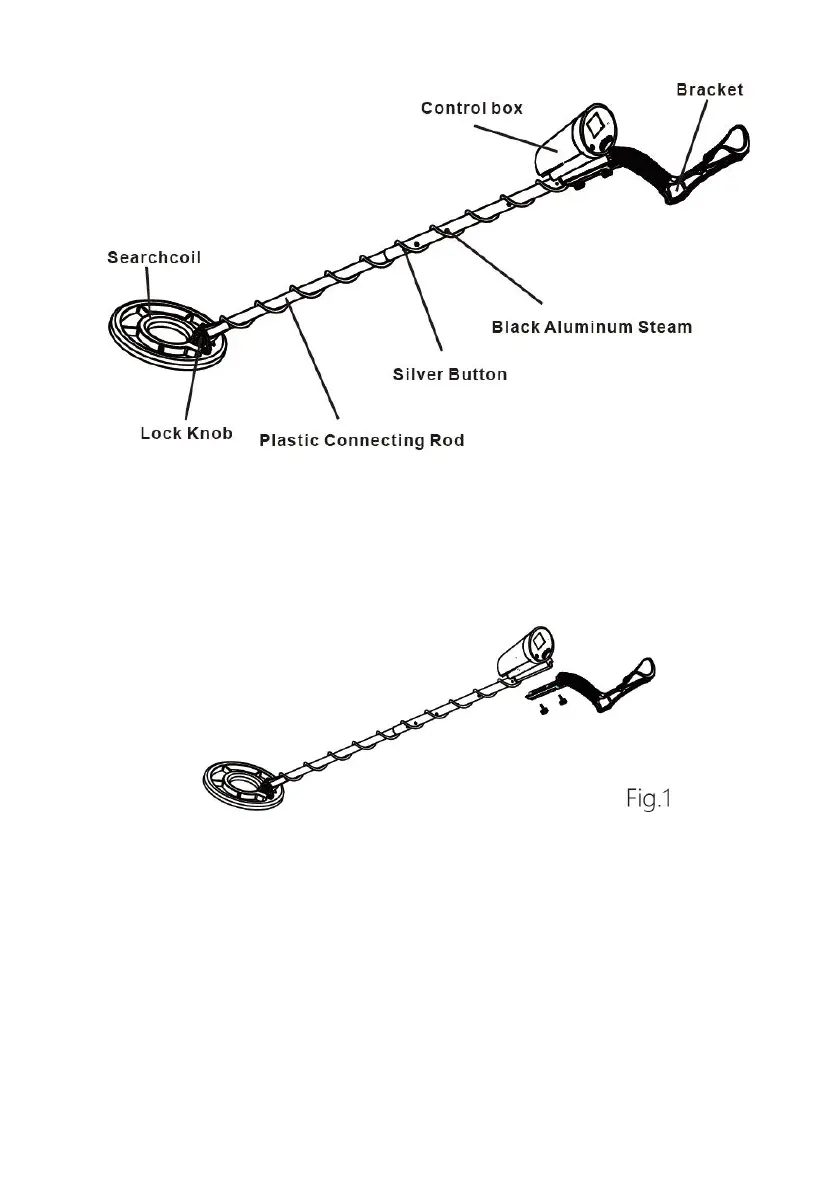

1. Loosen the two triangular fasten buttons below the control box,
insert the bracket, then tighten the two triangular fasten buttons. (See
Fig.1)
2. Press the silver-white shrapnel on the plastic connecting rod, insert
to the black aluminum stem. When the silver-white shrapnel popping
up from the hole on the black aluminum stem, you could use the unit.
There are four holes on the black aluminum stem, it is for you to adjust
the length of the connecting stem, allowing you to comfortably erect
and straighten your arms, the search coil is about 1/2 inch from the
ground. (See Fig.2, Fig.3)
