DR 22-Ton User Manual

CONTACT US AT w w w .DRpow er.com 9
Due to the weight / size of the log splitter, it’s recommended that two or more adults be present to assist with assembling.
Assembly
Tools and Supplies Needed:
 Two 13mm Wrenches
 Two 14mm Wrenches
 16mm Wrench
 17mm Wrench
 18mm Wrench
 19mm Wrench
 27mm Wrench
 1/2" Wrench
 Adjustable Wrench
 Needle Nose Pliers
 3mm Allen Wrench
 Flat Head Screwdriver
 Soft Faced Hammer
 Thread Locking Compound
Installing the Fenders

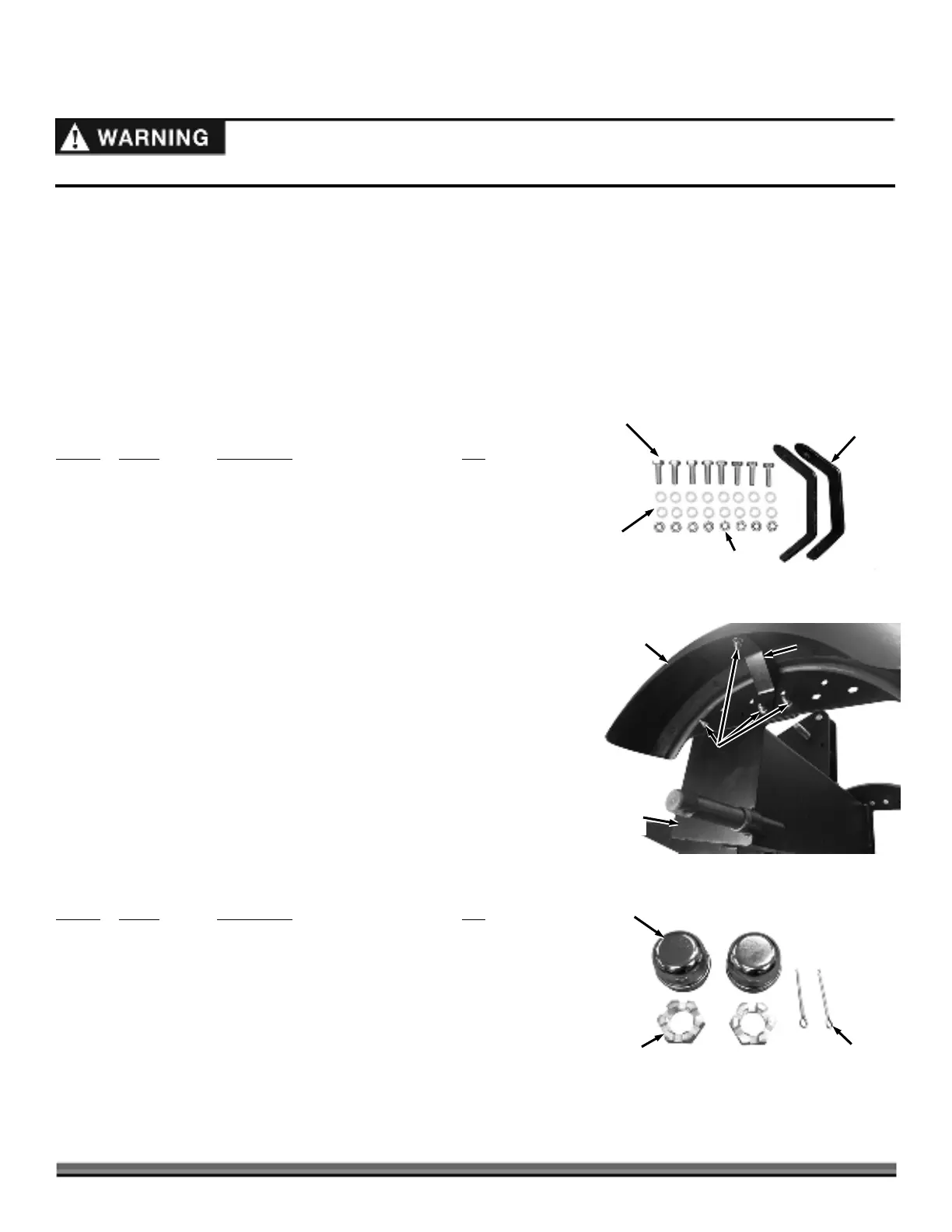

Parts Supplied in Hardware Kit #1 (Figure 3):
Item #
Part # Description Qty
1 ............. 33703 .............. Bolt, Hex, M8 X 25 ................................ 8
2 ............. 30247 .............. Washer, Flat, M8 ................................... 16
3 ............. 30246 .............. Nut, Nylon Lock, M8 ............................. 8
4 ............. 33689 .............. Support, Fender .................................... 2
Compare the contents of the Hardware Kit #1 with the “Parts Supplied” list
above. If you have any questions please contact us at www.DRpower.com or call
1-800-DR-OWNER (376-9637) for assistance.
Note: When installing the Bolts, Washers, and Locknuts, install the Washers so that
one Washer is against the head of the Bolt, and the other Washer is against
the Locknut.
1. Loosely secure the top of the Fender to the Fender Support with a M8 x 25
Bolt, two Flat Washers, and a Locknut (Figure 4).
2. Loosely secure the Fender with the Fender Support to the Reservoir Assembly
as shown using three M8 x 25 Bolts, six Flat Washers, and three Locknuts.
3. Use two 13mm Wrenches to tighten the Hardware.
4. Repeat these steps for the other Fender
Installing the Wheels
Parts Supplied in Hardware Kit #2 (Figure 5):
Item #
Part # Description Qty
1 ............. 33714 .............. Hub Cap ................................................ 2
2 ............. 25310 .............. Nut, Castle, 1-14 .................................... 2
3 ............. 33755 .............. Pin, Cotter .............................................. 2
Compare the contents of the Hardware Kit #2 with the “Parts Supplied” list
above. If you have any questions please contact us at www.DRpower.com or
call 1-800-DR-OWNER (376-9637) for assistance.
Figure 5
1
2
3
Figure 3
1
2
3
4
Figure 4
Reservoir
A
ssembly
Fende
r
M8 Bolts, Flat
Washers and
Locknut
s
Fender
Support
