DR PILOT XT User Manual

8 DR
®
LEAF and LAWN VACUUM
Specifications
PILOT XT
PILOT XTSP (electric start)
Engine
DR
HP
6 HP
Fuel Tank Capacity
1.0 L
Engine Oil Capacity
0.5 Liters (16.9 oz)
Engine Oil Type
SAE 30W HD
Impeller Drive Method
Direct Drive
Clearing Width
24″
Chipper Knife Material
N/A
Hardened Tool Steel
Chipping Capacity
N/A
1.5" Dia.
Height Adjustment Range
1" to 4" (4 positions)
Collection Bag Type
Paper or Canvas
Collection Bag Volume
3.8 cu ft (3 Bushel)
Collection Bag Weight Capacity
50 lbs
Leaf Reduction
10:1
Handlebar Height
Adjustable from 32” to 42”
Front Wheel Size
8″ x 2″
Rear Wheel Size
10″ x 2″
Spare Bag Carrier
1 Carrier included (10 Bag Capacity), 2nd Carrier Optional (for 20 Bag total Capacity)
Drive
Push
Transmission, Flex Speed Cone Clutch
Speeds
N/A
Reverse: N/A, Forward: Max 2.0 mph
Battery
N/A
12V, 2.3AH
Machine Dimensions
26"W x 42"H x 52"L
Machine Weight
105 Lbs
120 Lbs

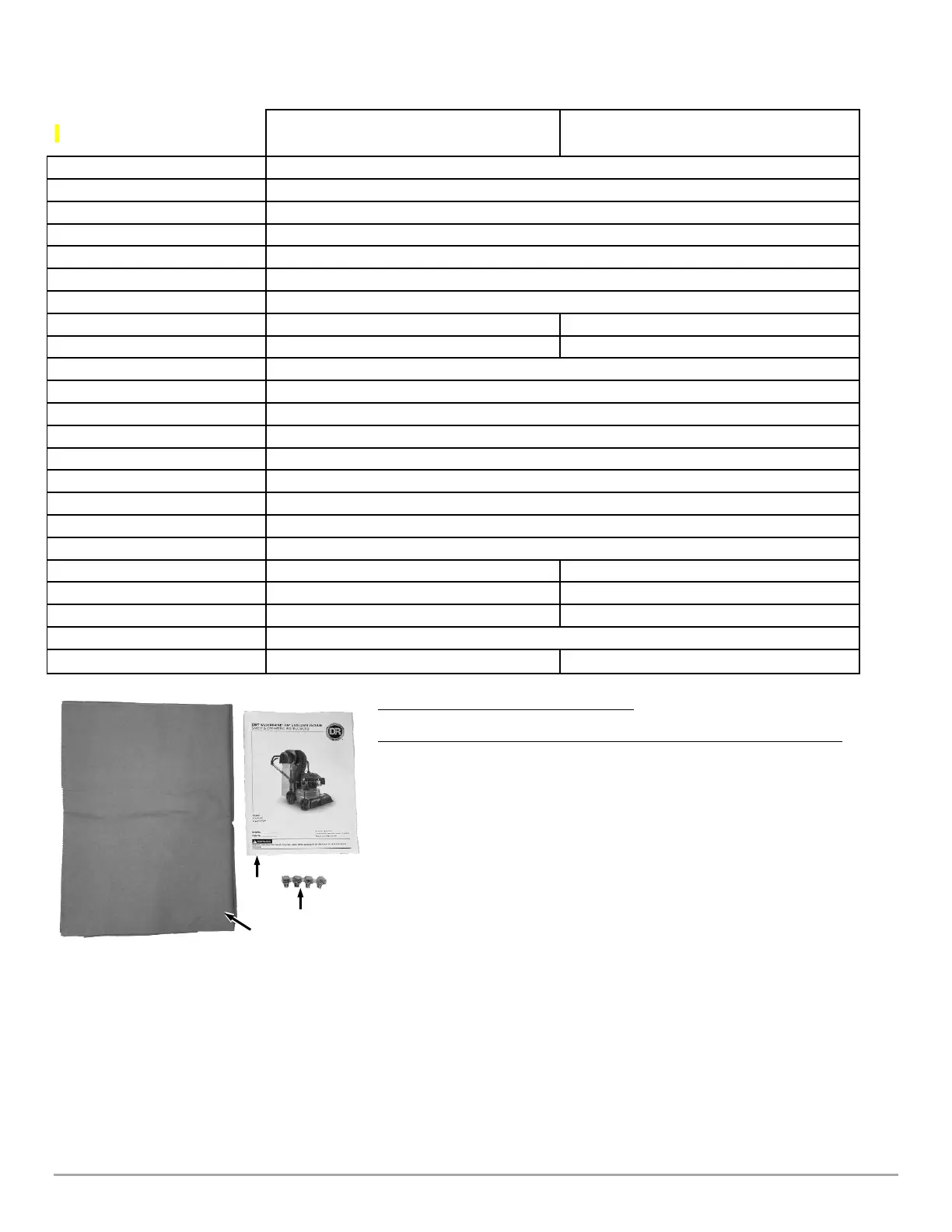

Parts Supplied (Figure 3 and list below):
Item # Description Qty
1 ............................ Walk-Behind Leaf Vacuum ...................................... 1
2 ............................. Product Package (User Manuals and Hardware) .. 1
3 ............................. A0000330868 - Bolt, Flange, 5/16-18 X 1/2″ .......... 4
4 ............................. A0000330872 - Bag, Paper, 5 Pack ......................... 1
Compare the contents of the Shipping Crate, with the Parts Supplied list
above. If you have any questions, please contact us at www.DRpower.com
or call 1-800-DR-OWNER (376-9637) for assistance.
Figure 3
3
2
4
