DR Power Grader User Manual

14 DR
®
POWER GRADER
Crank Post Adjustment
The Crank Post can be adjusted to fit the Lawn Tractor or All Terrain Vehicle you will be using to tow the Power Grader. The Post
can be moved forward or back on the Tow Bar as needed so the operator has easy access and no part of the Tow Vehicle will
contact the Grader while turning. The angle/height of the Crank post can be adjusted for better operator access.
SETTING CRANK POST DISTANCE FROM TOW HITCH
Tools Needed:
 9/16" Wrench
1. Loosen the Locknuts that secure the U-Bolts using a 9/16" Wrench (Figure
31).
2. Move the Sliding U-Bolt Backing Plate to a position where it will not contact
any part of the Tow Vehicle while turning.
3. Retighten The U-Bolt Locknuts.
SETTING CRANK POST ANGLE/HEIGHT
Tools Needed:
 Two 9/16" Wrenches
Angle:
1. Remove the upper hardware that secures the Crank Post to the Backing
Plate and loosen the lower hardware using two 9/16" Wrenches (Figure 32).
2. Align the holes at the desired angle position and reinstall the upper
hardware and tighten the lower hardware.
Height:
1. Remove the hardware that secures the Crank Post to the Backing Plate and
using two 9/16" Wrenches (Figure 32).
2. Align the holes at the other height position and reinstall the hardware.

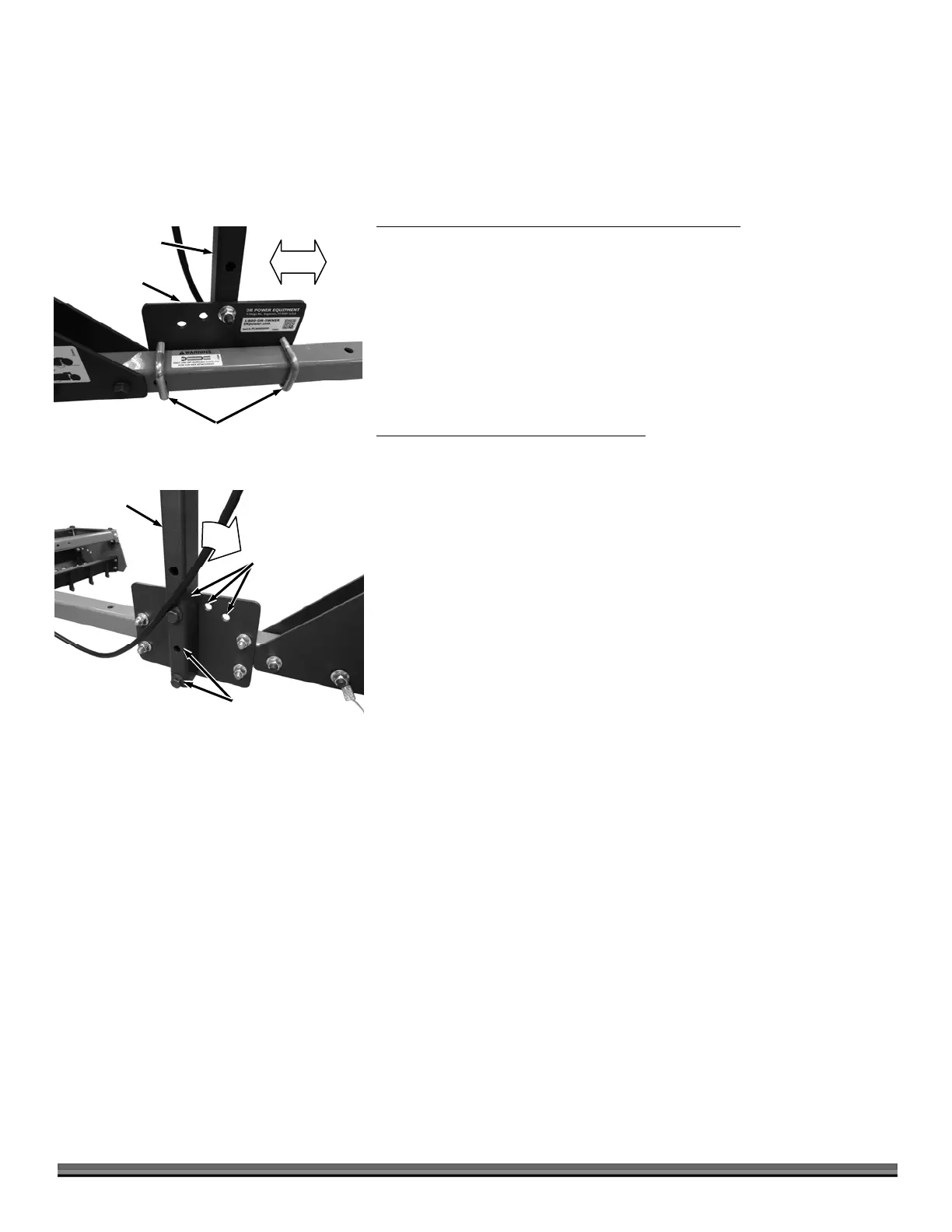

Crank Post
Figure 32
A
ngle
Settings
Height Settings
Figure 31
U-Bolts
Sliding U-Bolt
Backing Plate
Crank Post
