Dräger Infinity Series Quick Reference Guide

6 Lead Placement
Infinity Delta/Delta XL/Kappa - Quick Reference Guide
Intended for quick reference only.
Refer to Instruction For Use Manual.
INFINITY DELTA/DELTA XL/KAPPA - QUICK REFERENCE GUIDE | 04
© 2010 Draeger Medical, Inc.

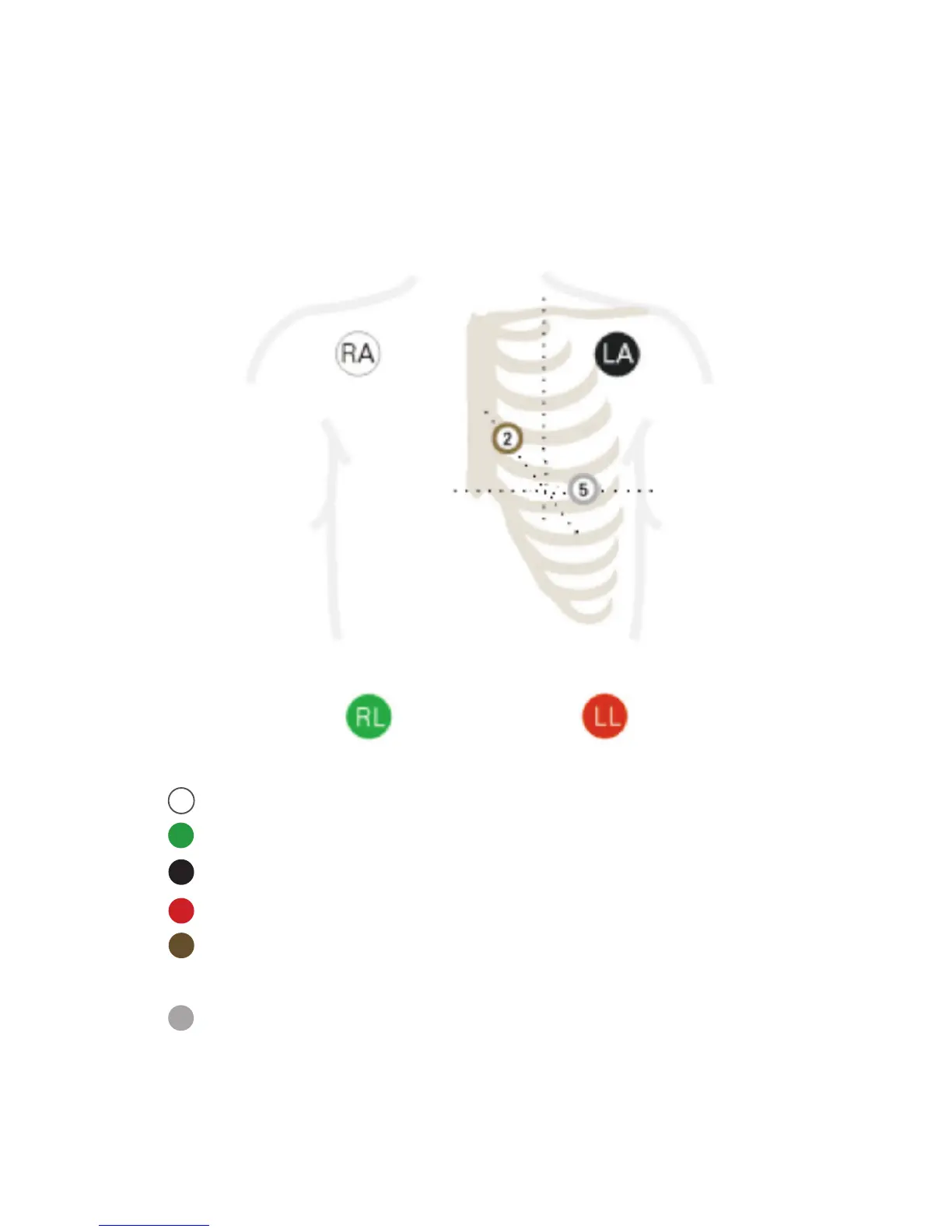

White - Right Arm
Green - Right Leg
Black - Left Arm
Red - Left Leg
Brown - V2 - Left of sternum
4th intercostal space
Grey - V5 - Left at 5th
Intercostal space Anterior Axillary line
RA
RL
LA
LL
V2
V5
D-22640-2010

Dräger Infinity Series Specifications

General

Manufacturer	Dräger
Device Type	Patient Monitor
Weight	5 kg to 10 kg (depending on the model and configuration)
Connectivity	Ethernet, USB, WLAN (optional)
Parameters Monitored	ECG, SpO2, NIBP, Temperature, Respiration
Alarm System	Visual and audible alarms, customizable alarm limits
Device Category	Medical Device
Series	Infinity
Display	Color TFT
Display Size	12.1 inches
Power Supply	AC Power, Internal Battery
Battery Life	Up to 4 hours (depending on configuration)
