8 | Dräger RVP - Communication | Middelborg/Olsson | November 2011

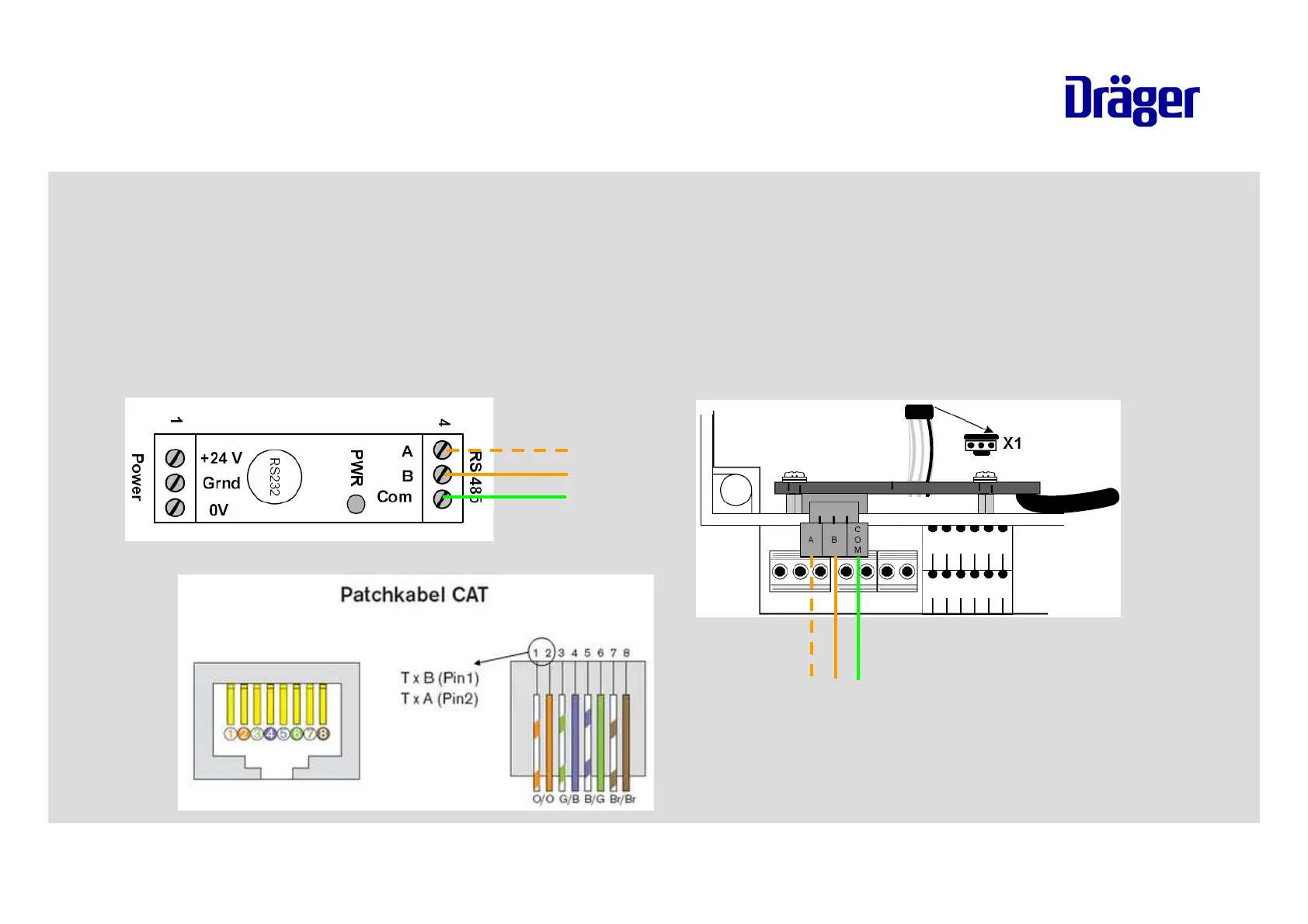

Connection of the converter

colour of cable orange/white: RJ45 jack PIN 1 (TxB) → Converter connector A

colour of cable orange: RJ45 jack PIN 2 (TxA) → Converter connector B

colour of cable green: RJ45 jack PIN 6 → Converter connector COM
