Dragster DAF 4002 - 2-Channel Speaker Wiring

22 2322 23
#10

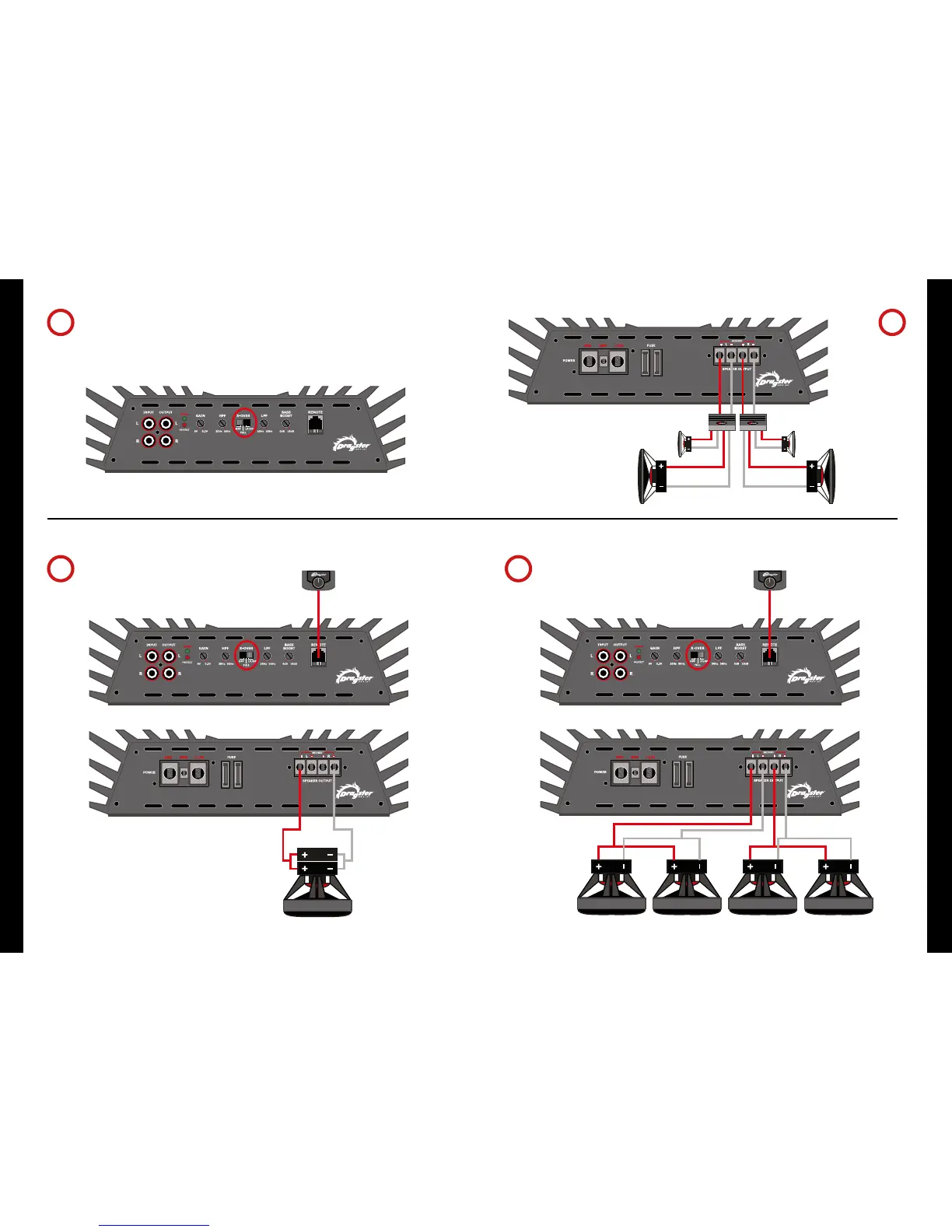

speaker wiring configuration - 2 CHANNEL
speaker wiring configuration - 2 CHANNEL
DAF 2502 BASIC 2 CHANNEL CONFIGURATION
# 11
DAF 2502 2-OHM BRIDGED SUBWOOFER
#12
DAF 2502 FOUR 4-OHM SUBWOOFERS
MIDRANGE MIDRANGE
TWEETERTWEETER
CROSSOVER CROSSOVER
BAND PASS FROM 10OHz - 4KHz
HIGH PASS SWITCH SETTINGS
BAND PASS FROM 2OHz - 100Hz
SUBWOOFER SWITCH SETTINGS
SUBWOOFER BAND PASS WILL ACT AS SUBSONIC FILTER
DVC 4 OHM WOOFER IN PARALLEL
OR 2 OHM WOOFER
#10
BAND PASS FROM 2OHz - 100Hz
SUBWOOFER SWITCH SETTINGS
TWO 4 OHM SUBWOOFER WIRED
IN PARALLEL TO EACH CHANNEL WITH
EQUAL A 2 OHM MONO LOAD
