Dragster DAF 4002 - 4-Channel Speaker Wiring

speaker wiring configuration - 4 CHANNEL
speaker wiring configuration - 4 CHANNEL
26 27
#16

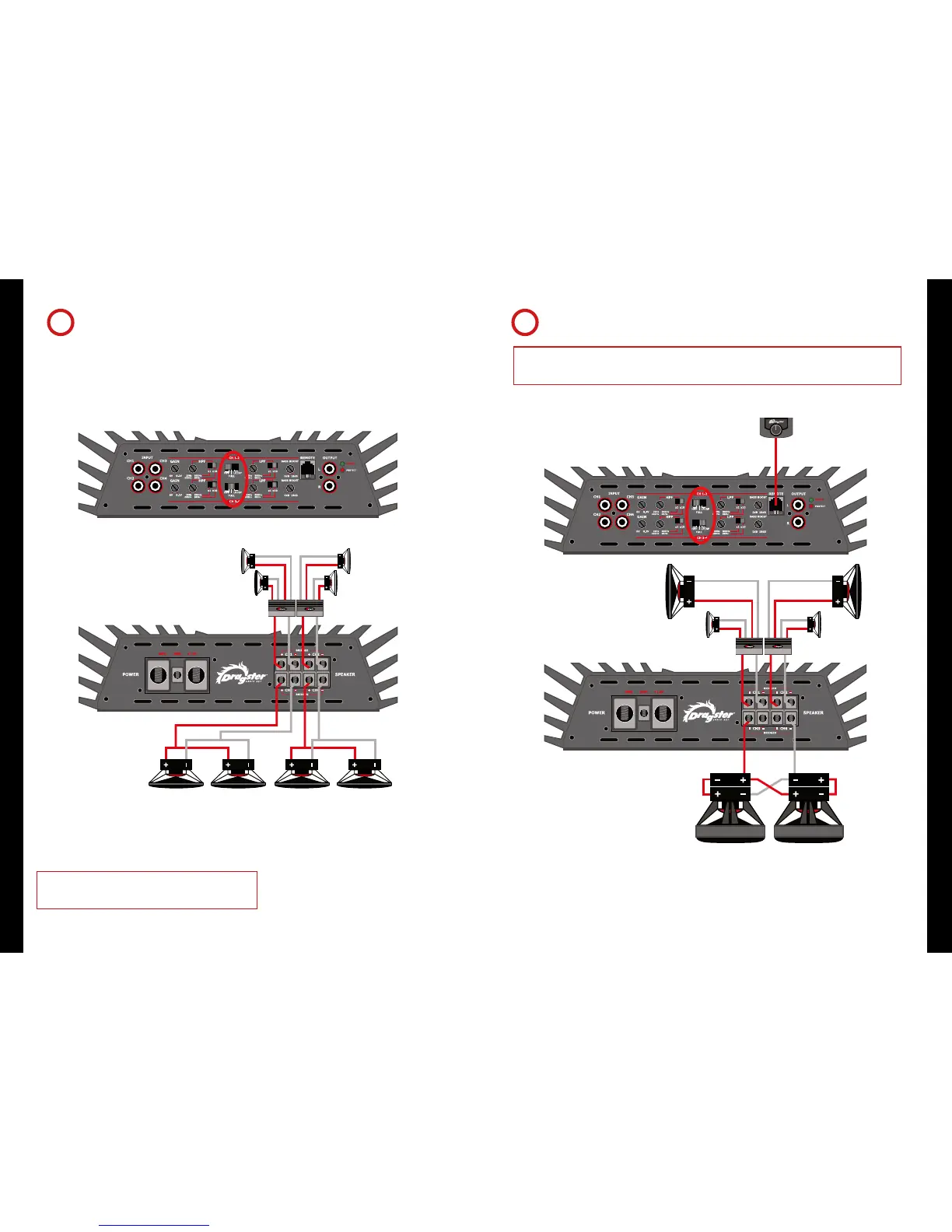

DAF 1004 / DAF 1754 2-OHM STEREO LOAD
MIDRANGE
CROSSOVER
CROSSOVER
TWEETER
4-OHM TWEETER IN PARALLEL
TWEETER
TWEETER
TWEETER
= 2-OHM STEREO LOAD
MIDRANGE MIDRANGE MIDRANGE
4-OHM MIDRANGE
= 2-OHM STEREO LOAD
BAND PASS FROM 400Hz - 4KHz CHANNEL 3 AND 4
BAND PASS SWITCH SETTINGS
HIGH PASS FROM 4KHz CHANNELS 1 AND 2
HIGH PASS SWITCH SETTINGS
Four 4-Ohm speakers installed in parallel.
Do not mix impedances and do not run amp below 2-Ohm stereo load per channel
#17
DAF 1004 / DAF 1754 BASIC 3-CHANNEL CONFIGURATION
The DAF 1004 is classified as an unbalanced amplifier as the power of channels 1/2 is not equal to the power of channels 3/4.
Its purpose and design was to deliver optimum 3-channel system performance. All channels are 1-Ohm stable in stereo mode and you may be bridged
to a 2-Ohm.
CROSSOVER
MIDRANGE
TWEETER
CROSSOVER
TWEETER
= 2-OHM STEREO LOAD
SUBWOOFER
DVC 2-OHM WOOFER WIRED IN SERIES TO 4-OHM
SUBWOOFER
= 2-OHM BRIDGED
MIDRANGE
BAND PASS FROM 20Hz - 100Hz CHANNEL 3 AND 4
SUBWOOFER SWITCH SETTINGS
BAND PASS FROM 100Hz - 4KHz CHANNELS 1 AND 2
HIGH PASS SWITCH SETTINGS
