Table of Contents TECHNICAL DATA
IMPORTANT INFORMATION
1. IMPORTANT INFORMATION ………………………………………………………… 2
2. TECHNICAL DATA ……………………………………………………………………3
3. DIMENSION ……………………………………………………………………… 4~9
4. FUNCTION ………………………………………………………………………… 10
5. INSTALLATION……………………………………………………………………… 11
6. ELECTRICAL INSTALLATION & DATA ………………………………………… 12
7. MAINTENANCE & CONSUMABLES …………………………………………… 13
8. COMPONENTS ……………………………………………………………… 14~24
▶
Do not apply pressure exceed the max operating pressure.
▶
Do not press and hold the Test button.
▶
Do not use the Product in dangerous (explosive) areas.
▶
Shut the condensate feed line and discharge pressure from the system before
installing of DRAIN MASTER S/HP or performing maintenance on the system.
▶
Always use materials and components suitable for safety standard.
▶
Always use standard tools.
▶
Fit an automatic temperature control device (heater) (option) when the Product is
installed in areas exposed to freezing.
▶
Electrical installation must be performed by qualied technician.
▶
DRAIN MASTER S/HP is activated only when it is connected to power.
▶
Always use authentic components provided by the Company for replacement to be
protected under warranty.
NRTL CE IP 65
DRAIN
MASTER B
Climate
zone
Peak
Compressor
Performance
m3/min
Peak
Dryer
Performance
m3/min
Peak
Filter
Performance
m3/min
Operating
Pressure
min / max
(bar)
Temperature
min / max
( ℃ )
Application
( * )
DM-5S
Green 5 10 50
0.8 ~ 16 +1 / 80 A, B
Blue 4.5 9 45
Red 3 6 30
DM-5
Green 7 14 70
Blue 5 10 50
Red 4.5 9 45
DM-5N
Green 8 16 80
Blue 7 14 70
Red 5 10 50
DM-15
Green 24 48 240
Blue 21 42 210
Red 15 30 150
DM-50
Green 80 160 800
Blue 70 140 700
Red 50 100 500
DM-150
Green 170 340 1700
Blue 150 300 1500
Red 105 210 1050
DM-500
Green 570 1140 5700
Blue 500 1000 5000
Red 350 700 350
DM-1500
Green 1750 3500
Blue 1500 3000
Red 1050 2100
DM-15HP
Green 24 48 240
1.2 / 60 +1 / 80 A, B
Blue 21 42 210
Red 15 30 150
DM-50HP
Green 80 160 800
Blue 70 140 700
Red 50 100 500
DM-150HP
Green 170 340 1700
Blue 150 300 1500
Red 105 210 1050
▶

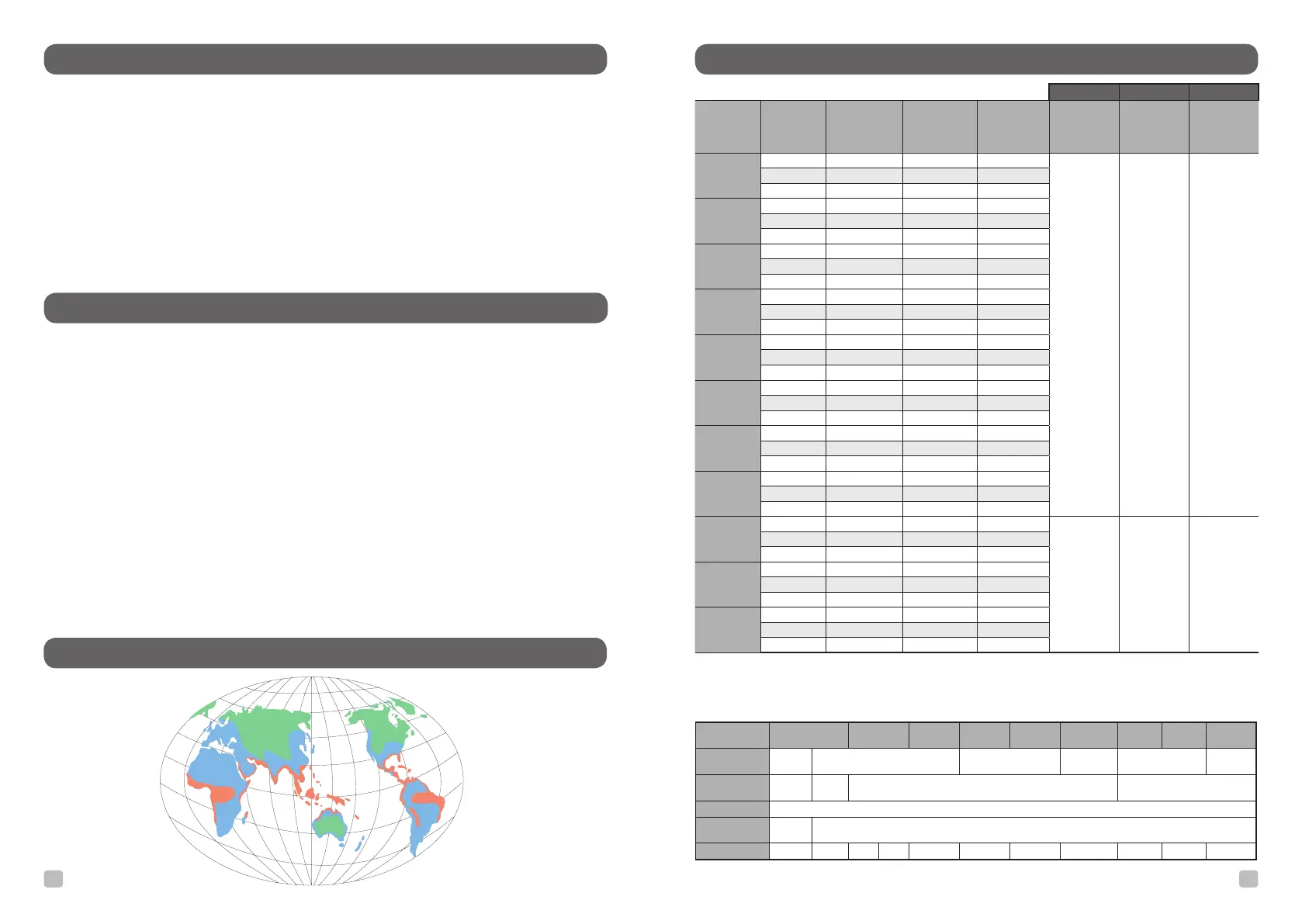

Green: Dry and cool climate(such as in Northern Europe,Canada, Northern states of the USA, Central Asia)
▶
Blue: temperate climate(such as in Central and Southern Europe, Central Americal)....Korea
▶ Red: humid, tropical climate(such as in the coastal regions of South-East Asia, Oceania, Amazon and Congo regions)
※ Application: A.oil contaminated condensate B.oil free, aggressive condensate
DRAIN MASTER
S/HP
DM-5S
DM-5N
DM-5
DM-15
DM-50 DM-150 DM-500 DM-1500 DM-15HP DM-50HP DM-150HP
Condensate
Feed
1/2" 1/2" x 2 3/4" x 3 1"x1,3/4'x2 1/2" x 2 3/4" x 3
Condensate
Discharge
1/4" 3/8" 1/2" 3/8"
Voltage Free voltage 90~240Vac, 24/48Vdc, 24/48Vac
Housing Material POM Aluminium, Hardcoated
Weight (Kg) 0.92 1.3 1.25 1.65 2.2 3.3 5.3 7.3 1.95 2.5 4.05
▶Must attach automatic thermostat(option : Heater unit) in freezing area.
TECHNICAL DATA
