8. PREPARING THE ELECTRIC WEED BURNER
FIG.1
FIG.2
FIG.3

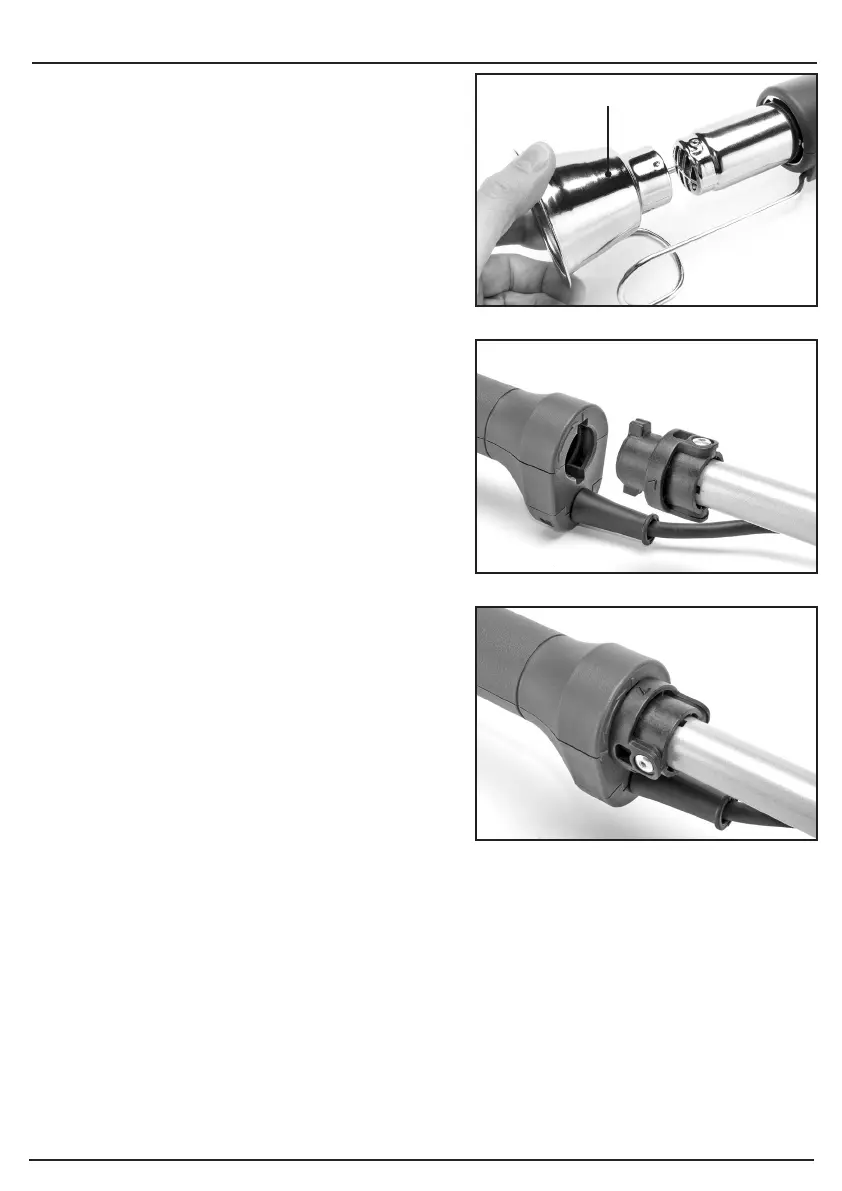

8.1 ATTACH THE CONE – FIG.1
Push the cone (5) onto the end of the weed burner,
it is designed to be a tight fit.
8.2 ATTACH THE EXTENSION POLE –
FIGS. 2 – 3
Align both the weed burner and the extension pole
together so the arrows point at each other and push
together. Twist the pole 90° clockwise to lock in
place, leaving the arrow pointing at the marker.
To remove extension handle twist 90°
counter-clockwise and pull the pole out of the unit.
(5)
