Draper D13/5A - Assembly; Column and Base Assembly

2. Secure the column to the base using the
three bolts as shown in Fig.2.
ASSEMBLY
- 9 -
A B
C
A B
C
Fig.2.

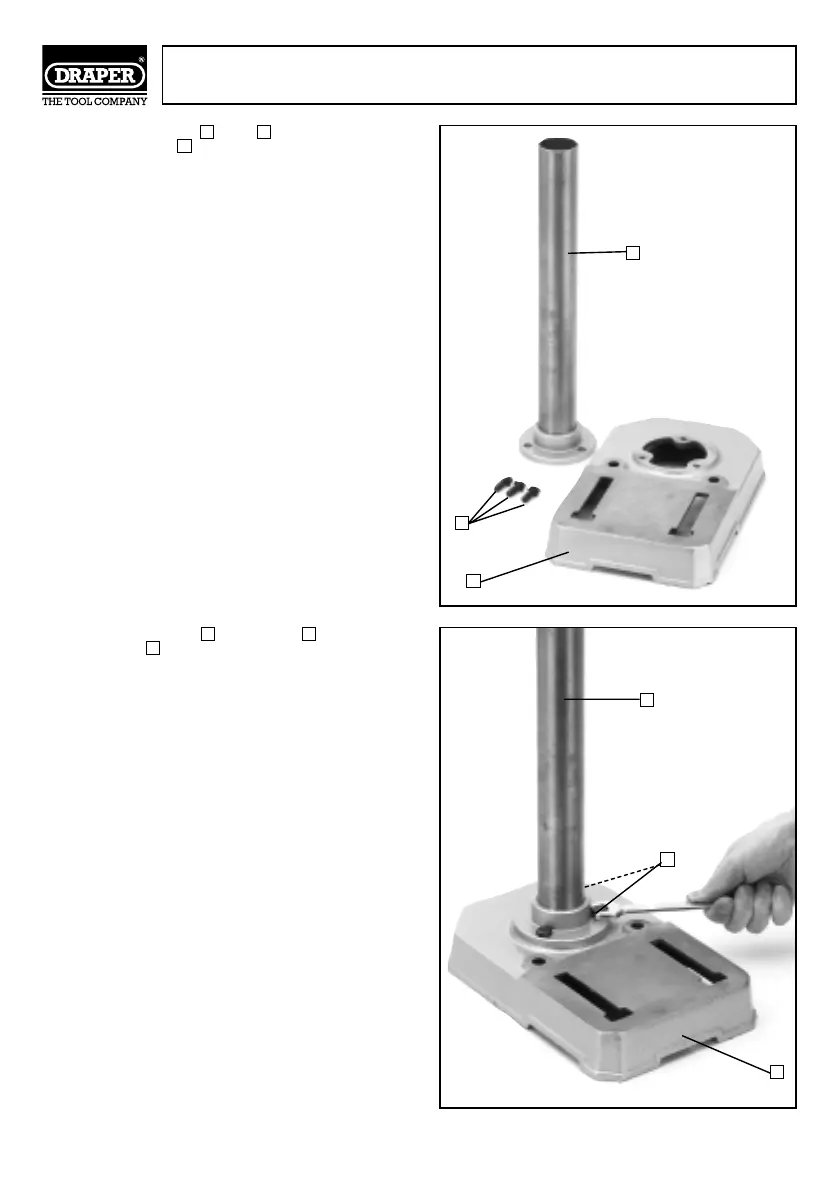

1. Locate the column base and three
mounting bolts (Fig.1.) from the loose parts.
Fig.1.
A
B
C
A
B
C
