Draper Foundation - Section 8.2 - Vertical Rail Assembly (3-Rail Systems); Lower Section Assembly; Upper Section Assembly

page 14 of 28
Foundation
™
for LED Panels

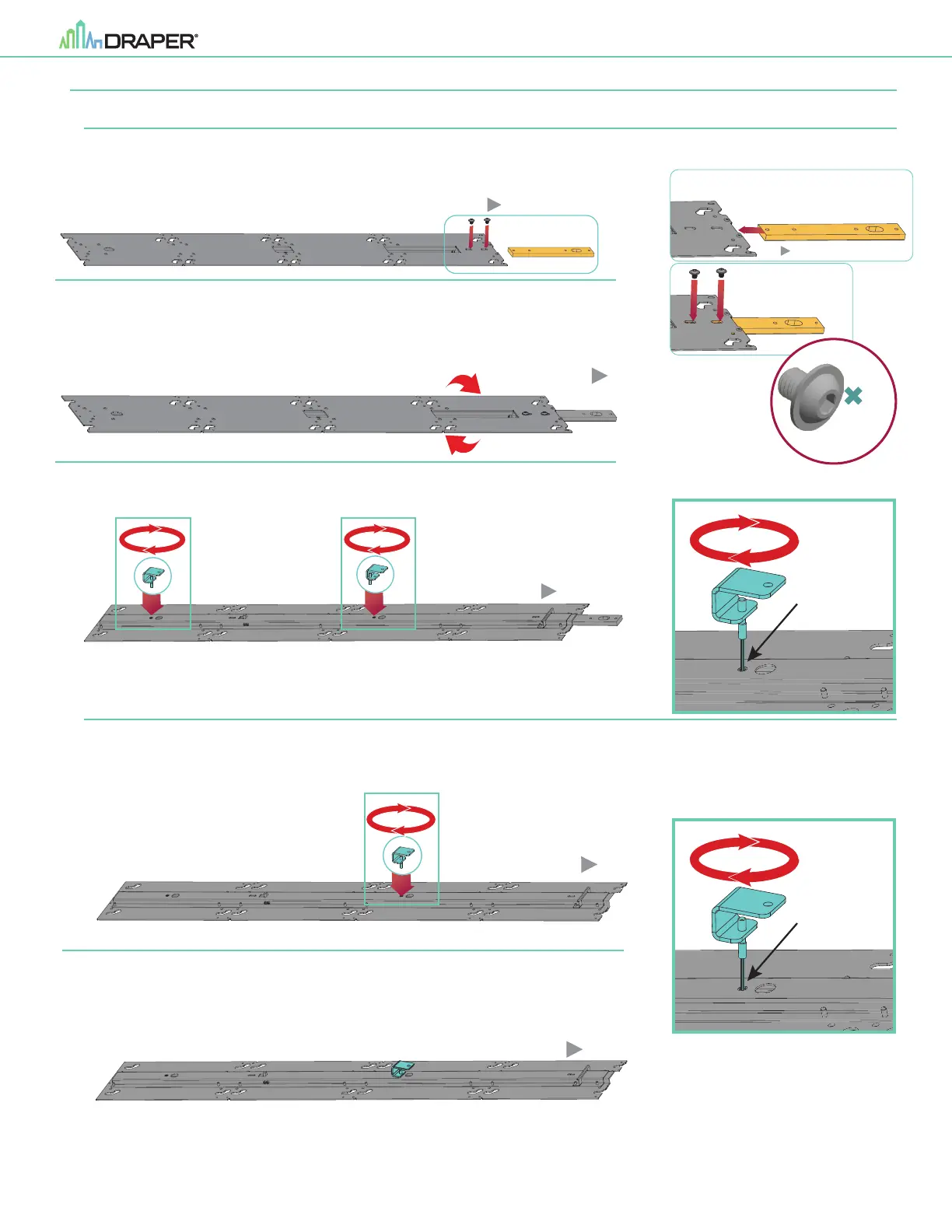

Section 8.2 - Vertical Rail Assembly - For LED arrays 7 panels or higher - 3 Horizontal Rails
Section 8.2.1 - Lower Section of Vertical Rail Assembly
1. Insert Vertical Connector into TOP of the Lower Vertical Rail section and secure with provided hardware (3mm Hex Wrench).
2. Turn the Lower Vertical Rail section over.
3. Attach two (2) Wall Adjuster Brackets to the back side using a 3mm hex wrench.
Section 8.2.2 - Upper Section of Vertical Rail Assembly
1. Attach one (1) Wall Adjuster Bracket to the back side using a 3mm hex wrench.
TURN OVER
TOP
Front
2
Front
TOP
1
VERTICAL CONNECTOR
VERTICAL CONNECTOR
Front
TOP
B
A
2
SCREW
M8-1.25x10mm
Long Flanged
Button Head
3mm Hex
Wrench
engaged with
differential
screw
Back
TOP
3
Back
TOP
1
Back
TOP
2
3mm Hex
Wrench
engaged with
differential
screw
