Foundation
™
for LED Panels
1
Tighten
Adjustment
Screws
Tighten
Adjustment
Screws
2

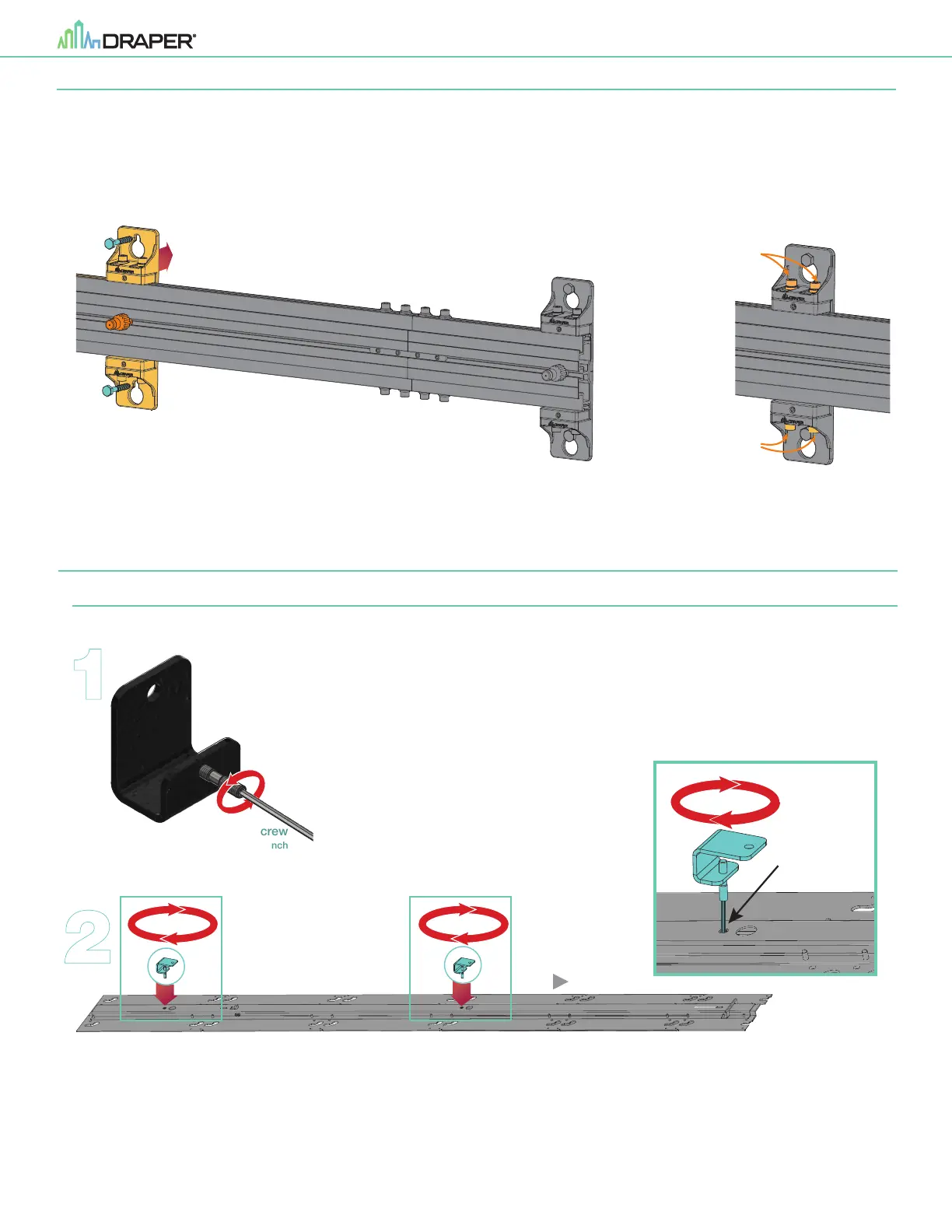

Section 7 - Securing Inner Wall Brackets
1. Using a 3mm Hex Wrench adjust all remaining wall mounting brackets. Ensure that each bracket is flush to the wall and secure to the wall with the
appropriate mounting hardware.
2. Carefully tighten all four (4) locking screws on the top and bottom of each wall mounting bracket.
3. Repeat steps 1 and 2 until all brackets are plum and secured in place.
Section 8 - Attaching Wall Adjuster Brackets to Vertical Rails
Section 8.1 - For LED arrays up to 6 panels high - 2 Horizontal Rails
1. Attach the Differential Screw to the Wall Adjustment Bracket
2. Attach two (2) Wall Adjuster Brackets to the back side using a 3mm hex wrench.
Back
TOP
2
1
WALL ADJUSTER
BRACKET
ASSEMBLY
Attach Differential Screw
using 3mm Hex Wrench
3mm Hex
Wrench
engaged with
differential
screw
