Draper Foundation - Section 10 - Attaching Vertical Rails; Attaching Rails for 2-Rail Systems

page 17 of 28
Foundation
™
for LED Panels

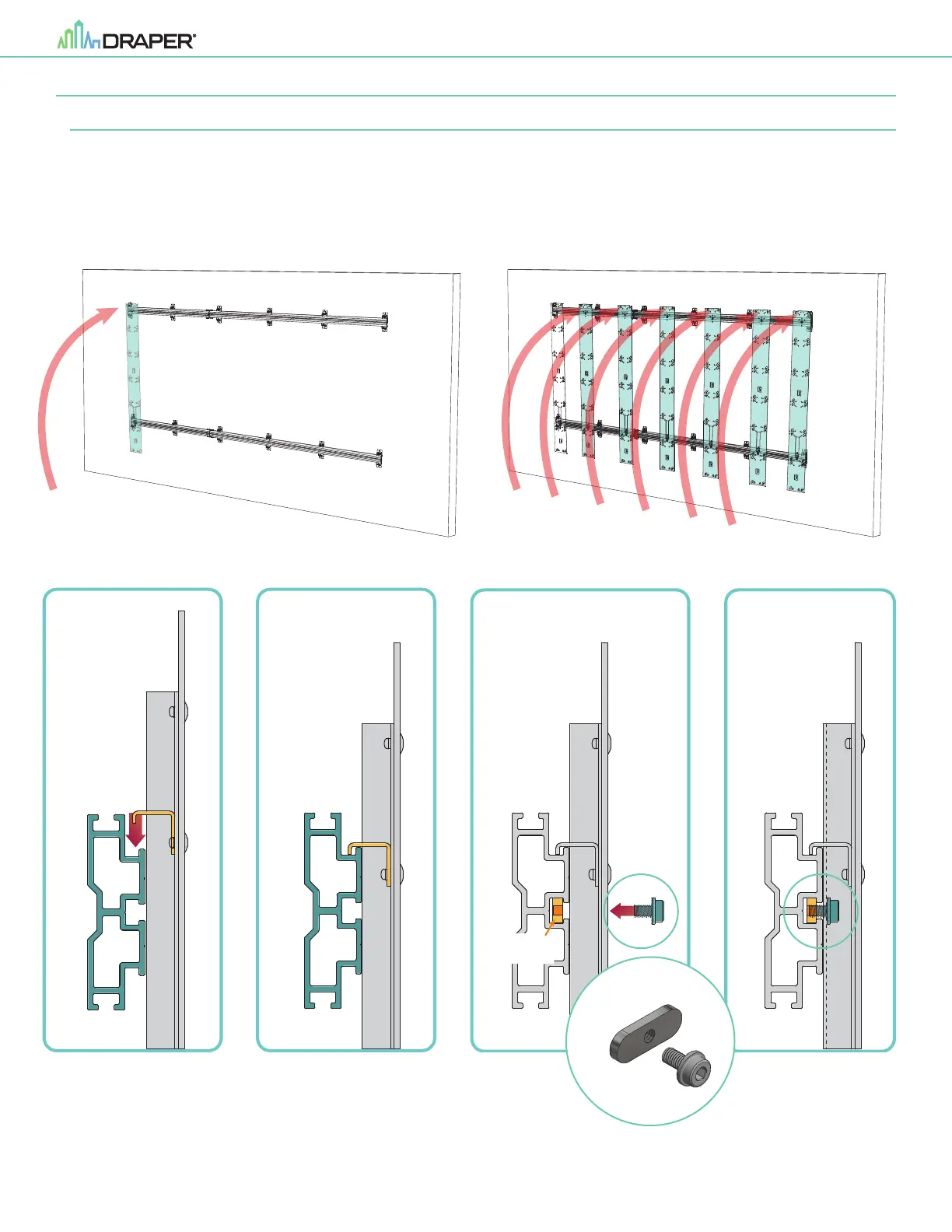

Section 10 - Attaching Vertical Rails
Section 10.1 - For LED arrays up to 6 panels high - 2 Horizontal Rails
1. Hang the Vertical Rails on the top horizontal rail and space evenly.
2. Using a 5mm hex wrench, slide the fastener nuts (from Section 9) into position and attach using the supplied M6x12 hardware.
HORIZONTAL
RAIL
VERTICAL
RAIL
1
HORIZONTAL
RAIL
VERTICAL
RAIL
2
VERTICAL
RAIL
3
SLIDE IN
FASTENER
4
HORIZONTAL
RAIL
VERTICAL
RAIL
Vertical Rail
Fasteners
SLIDE-IN NUT
M6-1.0
FLANGE HEAD SCREW
M6-1.0x12mm
