Foundation
™
for LED Panels

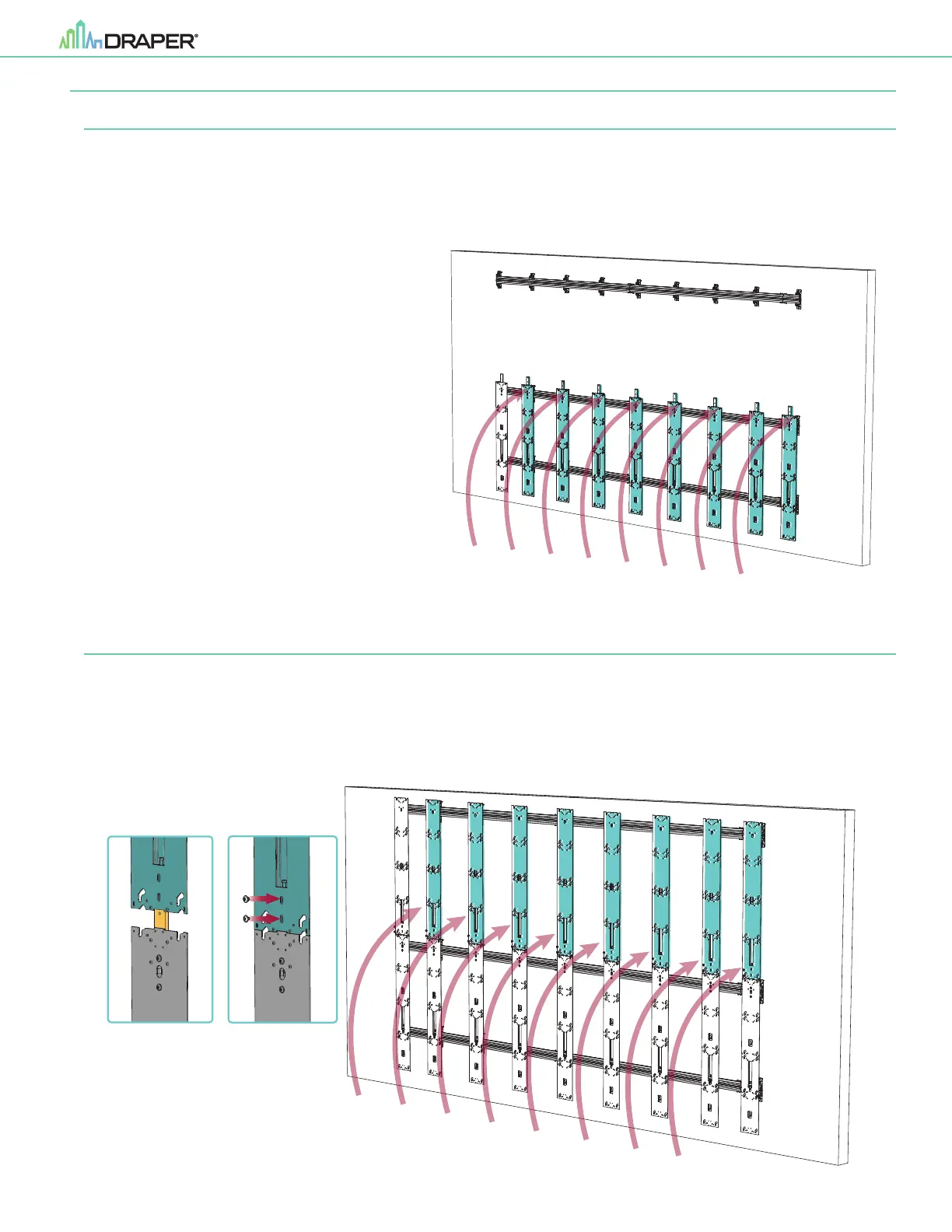

Section 10.2 - For LED arrays 7 panels or higher - 3 Horizontal Rails
Section 10.2.1 - Attaching Bottom Vertical Sections
1.
Lift each Vertical Rail and position it on the middle rail.
2.
Let the Vertical Rail hanger rest on the horizontal rail.
3.
Slide the fastener nut from Section 8 into position and loosely attach with the provided hardware.
4.
Work from left to right until all 9 bottom
Vertical Rails
are attached.
21
Section 10.2.2 - Attaching Top Vertical Sections
1.
Lift each Top Section of Vertical Rail and slide it onto the connector on the bottom section.
2.
Let the Vertical Rail hanger rest on the top horizontal rail and secure it loosely with provided hardware..
3.
Slide the fastener nut from Section 8 into position on the bottom rail and loosely attach with the provided hardware.
4.
Work from left to right until all top Vertical Rails are attached.
