220-240V LVC-IV Low-Voltage Control Module
page 2 of 4
Section 3 - Infrared (IR) Remote Control
1.
Plug Optional IR Eye into mini plug input provided on LVC-IV (see Figs. 1 and 3).
2.
IR Remote Control transmitter does not need to be "learned" by the LVC-IV. Simply point and operate.
3.
Maximum IR Eye cable length is 42" (1 meter).
Please Note: IR Transmitter Range is 26ft. (7.9 meters).
Figure 3

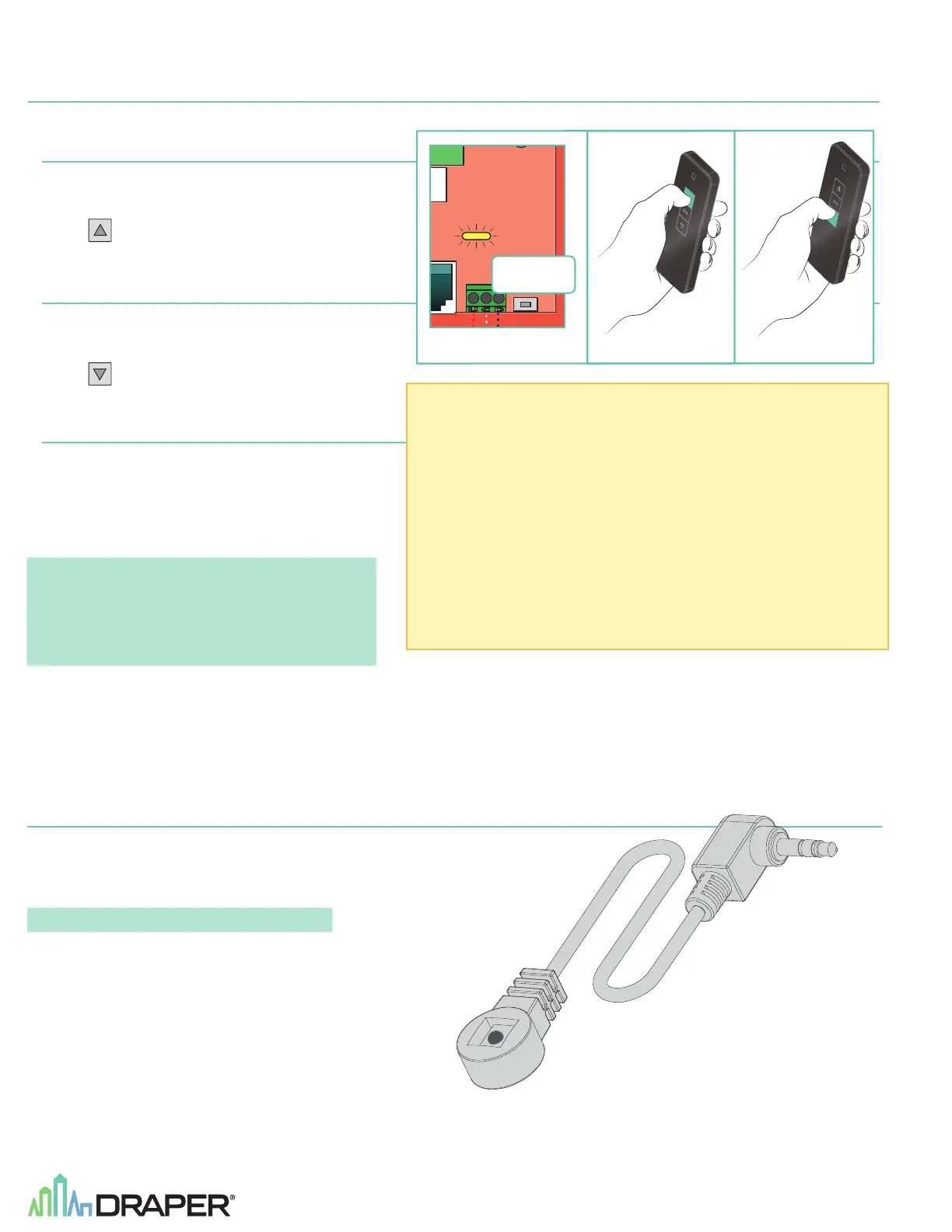

Section 2 - Programming Radio Frequency (RF) Remote Control
The LVC-IV comes with built-in Radio Frequency Remote control capability (optional handheld transmitter NOT included).
To "Learn" a remote
1.
Press receiver button on LVC-IV (see Fig. 2A).
2.
Signal light will flash slowly.
3.
Press
(UP) on transmitter within 10 seconds (see Fig. 2B).
4.
Signal light flashes three times quickly.
To "Un-Learn" a remote
1.
Press receiver button on LVC-IV (see Fig. 2A).
2.
Signal light will flash slowly.
3.
Press
(DOWN) on transmitter within 10 seconds (see Fig. 2C).
4.
Signal light flashes three times quickly.
To "Un-Learn" all remotes
1.
Press receiver button on LVC-IV until signal light flashes quickly,
then release.
2.
Press receiver button once while signal light is flashing.
3.
Signal light will stop flashing.
PLEASE NOTE:
1. RF receiver MUST NOT TOUCH METAL OBJECTS!
Maximum Distance of Transmitter will be affected negatively.
2. Disconnect the power supply before installing the RF receiver.
3. Avoid electrostatic interference:
Static electricity will damage the electronic components.
4. Ensure there is > 5' (1.52M) between RF receiver and ground.
5. Ensure there is > 1' (30.5cm) between RF receiver and ceiling.
6. Ensure there is > 1' (30.5cm) between RF receiver and transmitter.
7. Multiple receivers must be spaced > 8" (20cm) apart.
Please Note: Operating range is 250ft (76 meters) open distance.
RF Signal will degrade significantly with each wall
it is required to penetrate.
If you are experiencing issues with RF signal
strength, the RF antenna can be threaded out
one of the knockouts for better reception.
Figure 2
FUSE - 3.15 AMP
250 VAC 5x20mm
DASHED WIRING BY ELECTRICIAN
LVC-IV
WHITE - Common to screen
& 110V AC Neutral
RED - to screen (directional)
BROWN - to screen (directional)
YELLOW - to 110V AC-Hot
BLACK - to 110V AC-Hot
GREEN/YELLOW (Ground)
WHITE - Common to screen
& 220V AC Neutral
RED - to screen (directional)
BROWN - to screen (directional)
YELLOW - to 220V AC-Hot
BLACK - to 220V AC-Hot
GREEN/YELLOW (Ground)
SIGNAL LED
LVC-IV
RS232/485
Inputs/Outputs
(Ports are identical)
RF Transmitter
Operating range is 250 feet (open distance). Each time
the RF signal penetrates a wall, distance will fall off 50%.
IR Eye
Input
IR Transmitter
Transmitter range: 26’ (7.9M)
IR Eye
Low Voltage
Trigger
4-28 VDC
BACK
LVC-S
3 BUTTON WALL SWITCH
PN: 121225
Low voltage wiring by others
FRON T
RED - UP
WHITE - COMMON
BLACK - DOWN
CBA
.
Receiver
Button
