For AC supply wires:
Attach appropriate ½" (13mm)
Trade Size connector to route
wiring through knockouts.
Low-Voltage Wiring by others
Factory Wiring
DASHED WIRING BY ELECTRICIAN
Wiring LVC-IV to Screen Motor
GREEN/YELLOW (Ground)
RED - to screen (directional)
BROWN - to screen (directional)
WHITE - Common to screen
& AC Neutral
YELLOW - to AC-Hot
(from LVC-IV MOTOR LEAD bundle)
BLACK - to AC-Hot
(from LVC-IV AC POWER bundle)
GND
N
ON/OFF
KEY SWITCH
GREEN/YELLOW (Ground)
BLACK - (UP)
BROWN - (DOWN)
BLUE - (Common)
INTERNAL SCREEN WIRING
to AC Power (L1)
MOTOR LEADS
WALL SWITCH
AC POWER INPUT
WARNING
DRY CONTACT
CLOSURE ONLY.
APPLYING VOLTAGE
HERE WILL DAMAGE
CONTROLLER.
RF Antenna
Wire
Extra Fuse
(3.15 Amp)

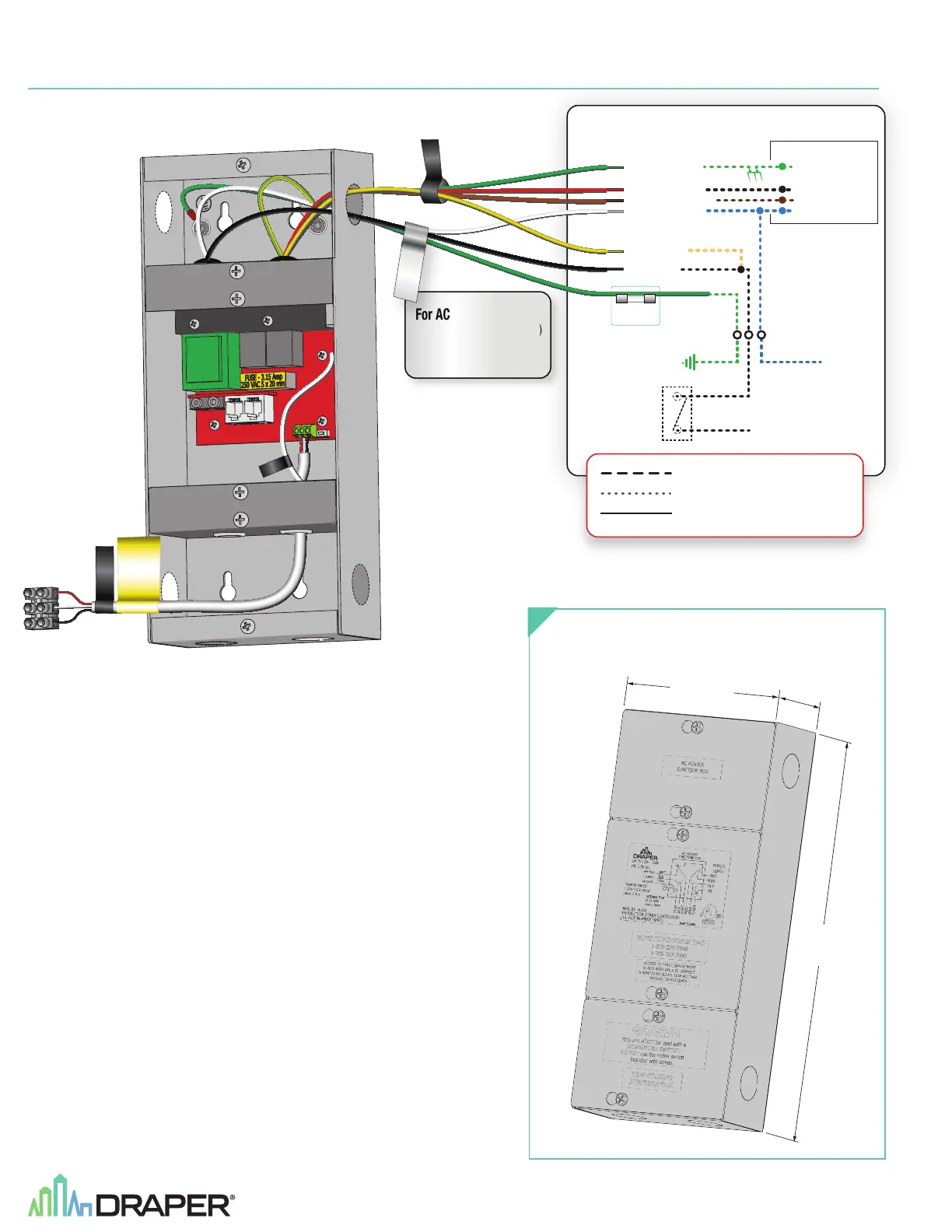

Section 6 - Wiring LVC-IV to Motor
EXTERNAL LVC-IV
ENCLOSURE DIMENSIONS
114 mm
56.2
mm
254
mm
56.2 mm
220-240V LVC-IV Low-Voltage Control Module
page 4 of 4
