- 15 -

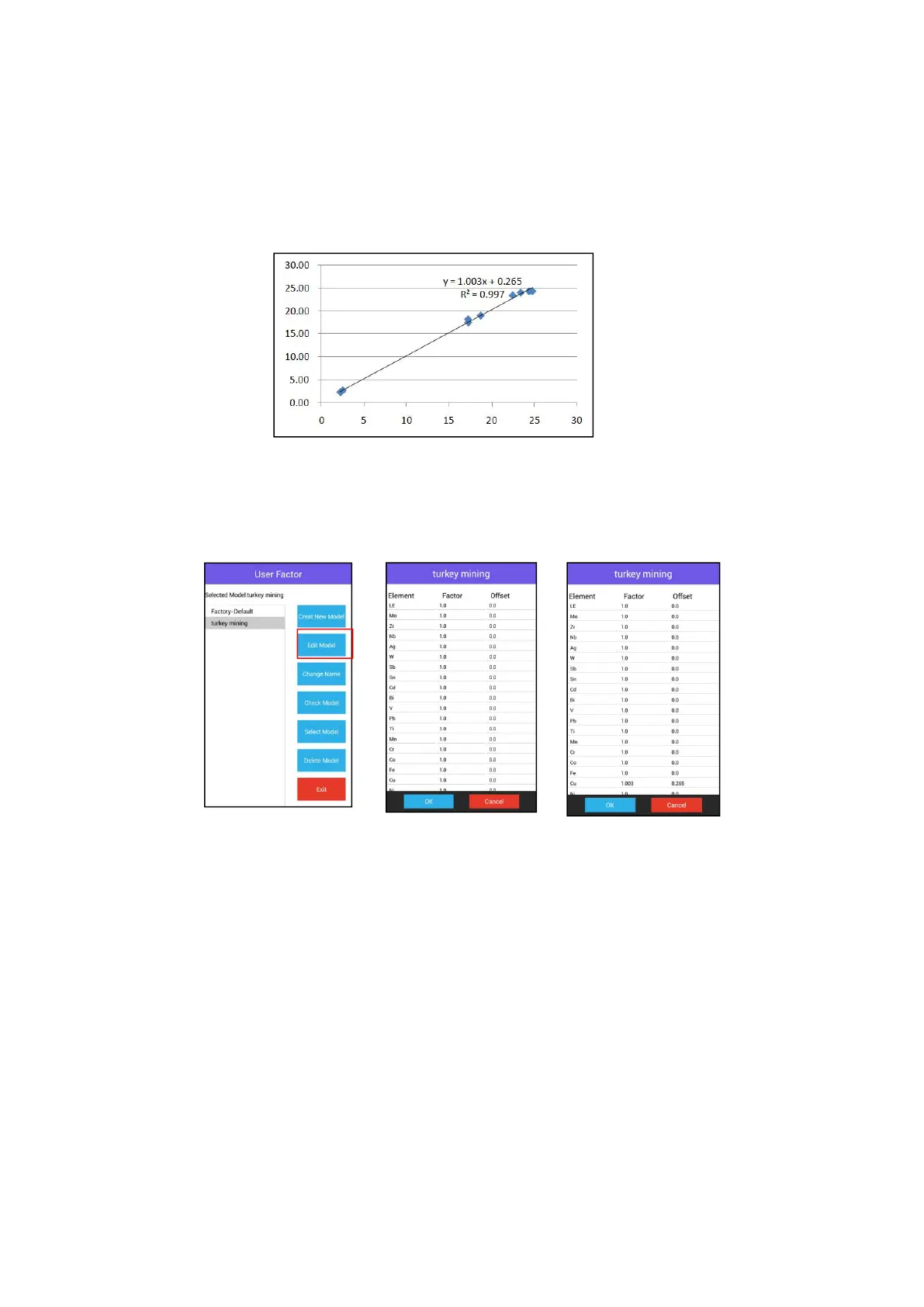

Fig 6
Fig 7
d) According to the formula in Fig. 7, y = 1.003x + 0.265，a correction coefficient can be
obtained . 1.003 is the slope, 0.265 is the intercept.
e) Add the slope and intercept values to "turkey mining" model elements Cu, Fig 8.
Fig 8
Note1: You can not add intercept negative number. When it is negative, instead of
using 0, The same method, add the correction coefficient for other elements.
Note2: When you need to create another correction coefficient, First should be select
the factory-Default, And then Test the standard sample, Otherwise, the result will be a
great error, As above, And pay attention to create a different model.
2.3.2 "Mode" option
在系统主界面选择模式选项即可进入模式界面，列出可供使用的工作曲线。显示的项
目取决于用户订购的仪器配置，如有需要请联系本公司。在该界面用户可以选择一条曲线
设置为默认曲线。
