This section will guide you to install the router through hardware connection and
configure the router’s settings through web browser.
3
3
.
.
1
1
N
N
e
e
t
t
w
w
o
o
r
r
k
k
C
C
o
o
n
n
n
n
e
e
c
c
t
t
i
i
o
o
n
n
f
f
o
o
r
r
a
a
c
c
s
s
e
e
r
r
i
i
e
e
s
s

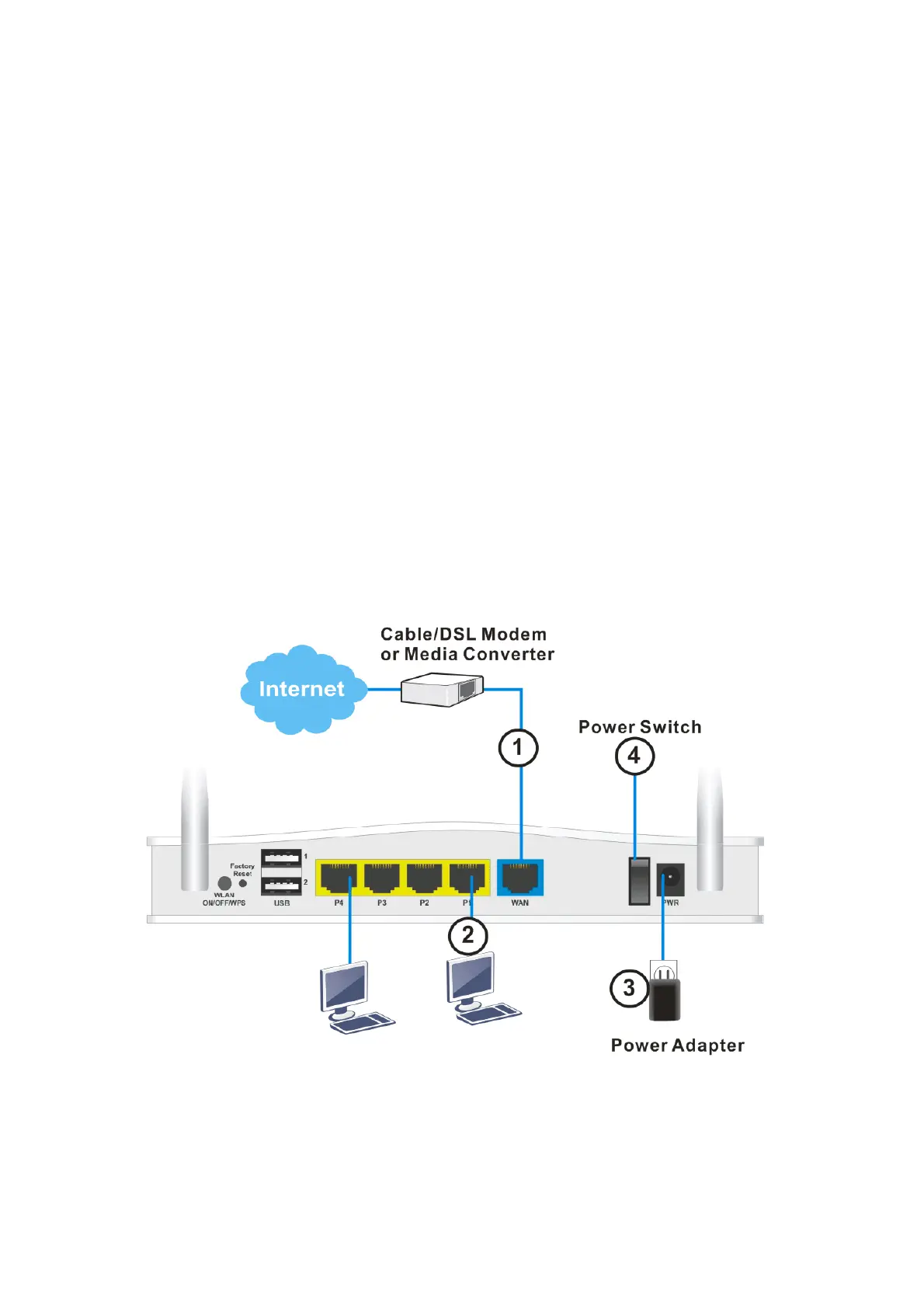

Before starting to configure the router, you have to connect your devices
correctly. Here we take Vigor2135ac as an example.
1. Connect the cable Modem/DSL Modem/Media Converter to any WAN port of
router with Ethernet cable (RJ-45).
2. Connect one port of 4-port switch to your computer with a RJ-45 cable. This
device allows you to connect 4 PCs directly.
3. Connect one end of the power cord to the power port of this device.
Connect the other end to the wall outlet of electricity.
4. Connect detachable antennas to the router. Power on the router.
5. Check the ACT and WAN, LAN LEDs to assure network connection.
(For the detailed information of LED status, please refer to section 2. Panel
Explanation)
To Next Page
