Draytek Vigor 2862 Series User Manual

14

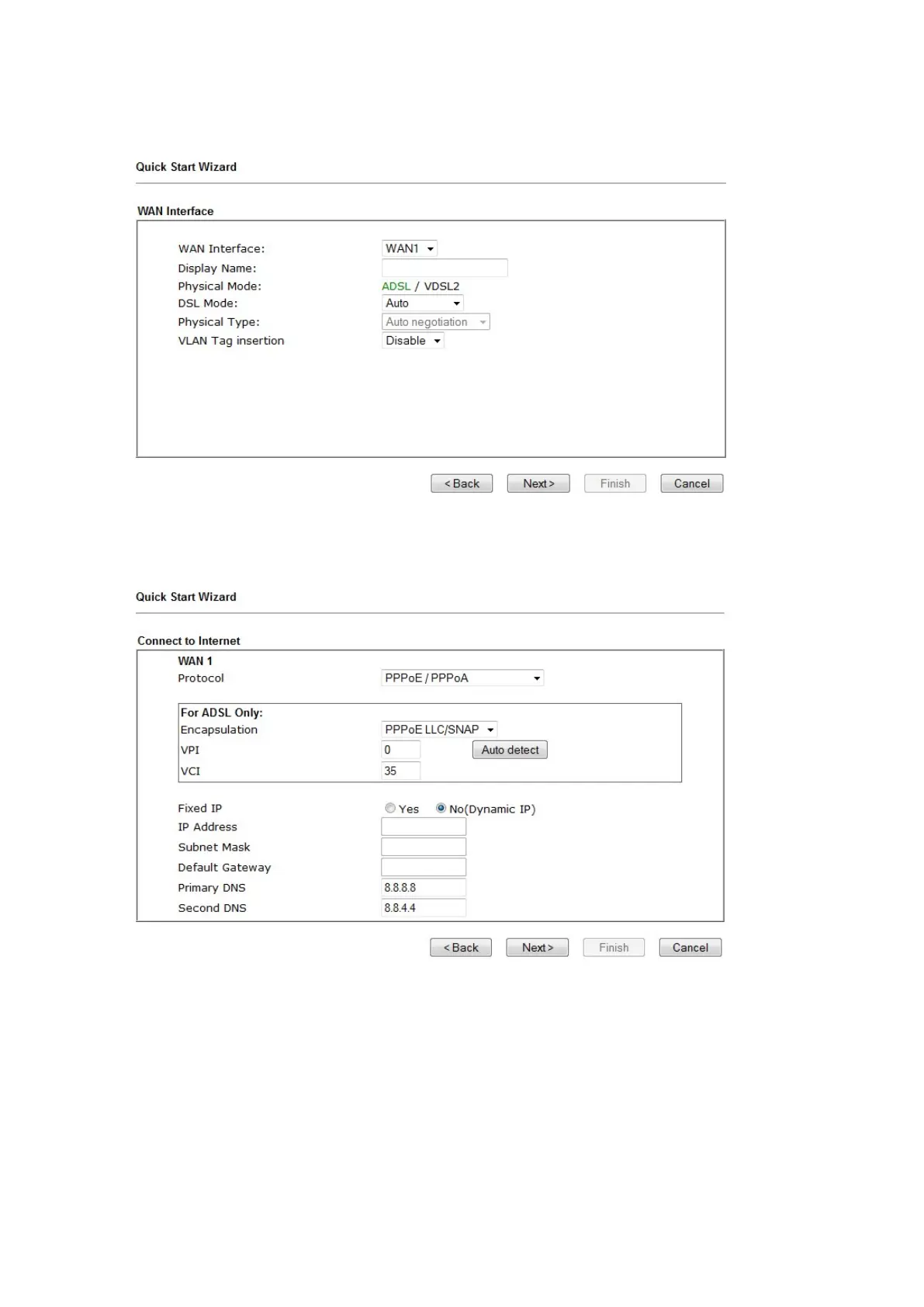

6. On the next page as shown below, please select the WAN interface that you use.
Here, we take WAN1 (ADSL/VDSL2) as an example.
7. Click Next to go to the following page. You have to select the appropriate Internet
access type according to the information from your ISP. For example, you should
select PPPoE mode if the ISP provides you PPPoE interface. In addition, the field of For
ADSL Only will be available only when ADSL is detected. Then click Next for next step.

Draytek Vigor 2862 Series Specifications

General

Firewall Type	Stateful Packet Inspection (SPI)
VPN Passthrough	Yes
DoS Protection	Yes
Concurrent VPN Tunnels	50
LAN Interfaces	4 x Gigabit Ethernet
USB Ports	2 x USB 2.0
VPN Throughput	200 Mbps
Firewall Features	SPI, DoS/DDoS protection
VPN Protocols	IPSec, PPTP, L2TP
Routing Protocols	Static Routing, RIP v1/v2, OSPF
Security Features	Firewall, VPN, Content Filtering, DoS Protection
Management	Web Interface, CLI, SNMP
Dimensions	241mm x 165mm x 44mm
Power Supply	12V DC
Content Filtering	Yes, by URL keyword, category, and application
