4
1
1
.
.
1
1
.
.
3
3
F
F
o
o
r
r
V
V
i
i
g
g
o
o
r
r
2
2
9
9
1
1
0
0
i
i
L
L
E
E
D
D
E
E
x
x
p
p
l
l
a
a
n
n
a
a
t
t
i
i
o
o
n
n
ACT
ISDN
QoS
Attack VPN
Printer
WAN
W2 P1
/
P2 P3 P4
LAN
W1

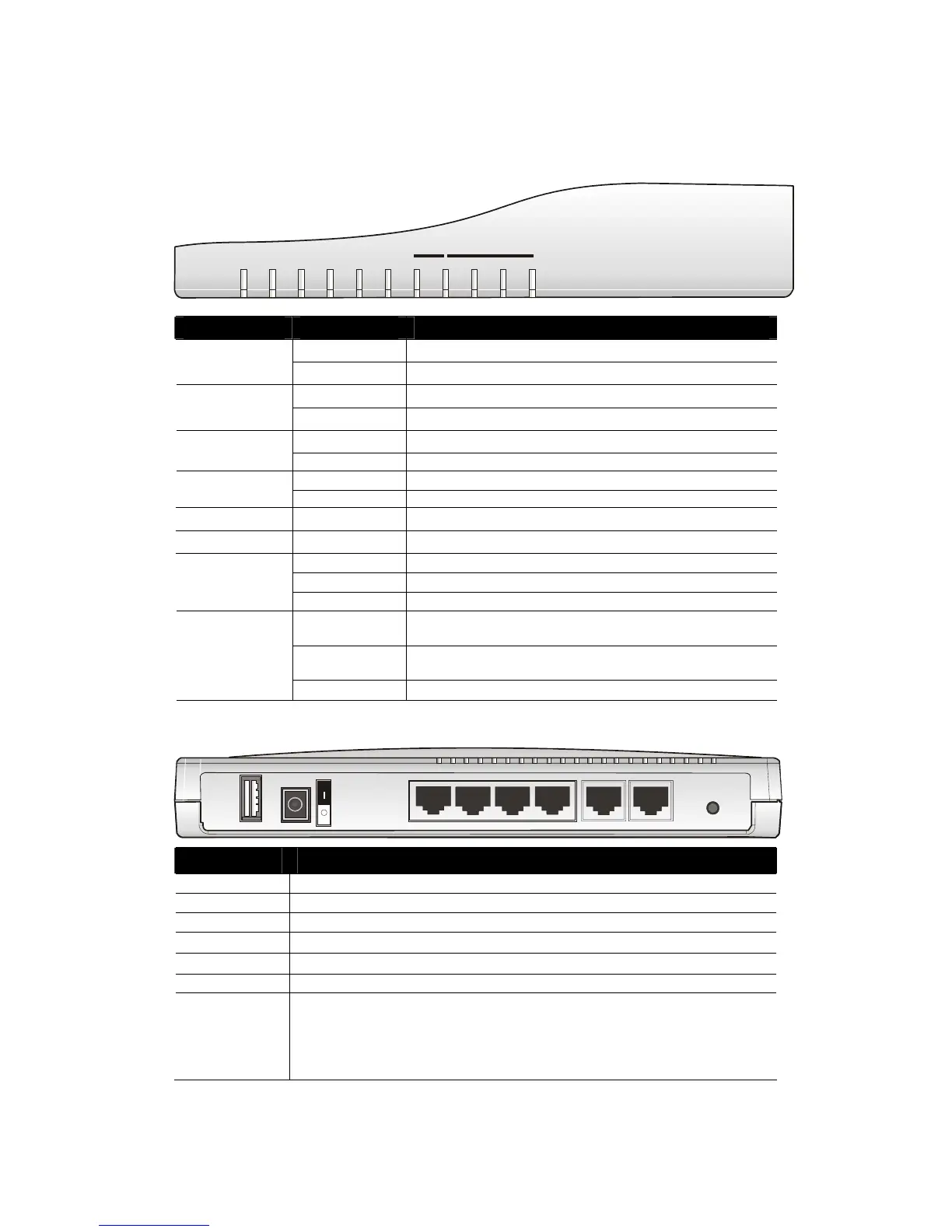

LED Status Explanation
Blinking
The router is powered on and running properly.
ACT (Activity)
Off
The router is powered off.
On
The ISDN network is correctly setup.
ISDN
Blinking
A successful connection on the ISDN BRI B1/B2 channel.
On The QoS function is active. QoS
Off The QoS function is inactive.
On DoS Defense function is active. Attack
Blinking An attack is detected.
VPN On The VPN tunnel is launched.
Printer On The USB interface printer is ready.
Orange A normal 10Mbps WAN link is ready.
Green A normal 100Mbps WAN link is ready.
WAN(W1-W2)
Blinking Ethernet packets are transmitting.
Orange A normal 10Mbps connection is through its corresponding
port.
Green A normal 100Mbps connection is through its corresponding
port.
LAN (P1, P2,
P3, P4)
Blinking Ethernet packets are transmitting.
C
C
o
o
n
n
n
n
e
e
c
c
t
t
o
o
r
r
E
E
x
x
p
p
l
l
a
a
n
n
a
a
t
t
i
i
o
o
n
n
Factory
Reset
PWR
Printer
ISDN
W1
P1/W2
P2P3P4
Interface Description
Printer Connecter for a USB printer.
PWR Connecter for a power adapter with 12-15VDC.
ON/OFF Power Switch.
LAN P4 – P1 Connecters for local networked devices.
W2/W1 Connecter for accessing Internet with the ADSL,ADSL2/2+ line
ISDN Connecter for NT1 (or NT1+) box provided by ISDN service provider.
Factory Reset Restore the default settings.
Usage: Turn on the router (ACT LED is blinking). Press the hole and keep for
more than 5 seconds. When you see the ACT LED begins to blink rapidly than
usual, release the button. Then the router will restart with the factory default
configuration.
