Draytek Vigor2927 Series User Manual

17

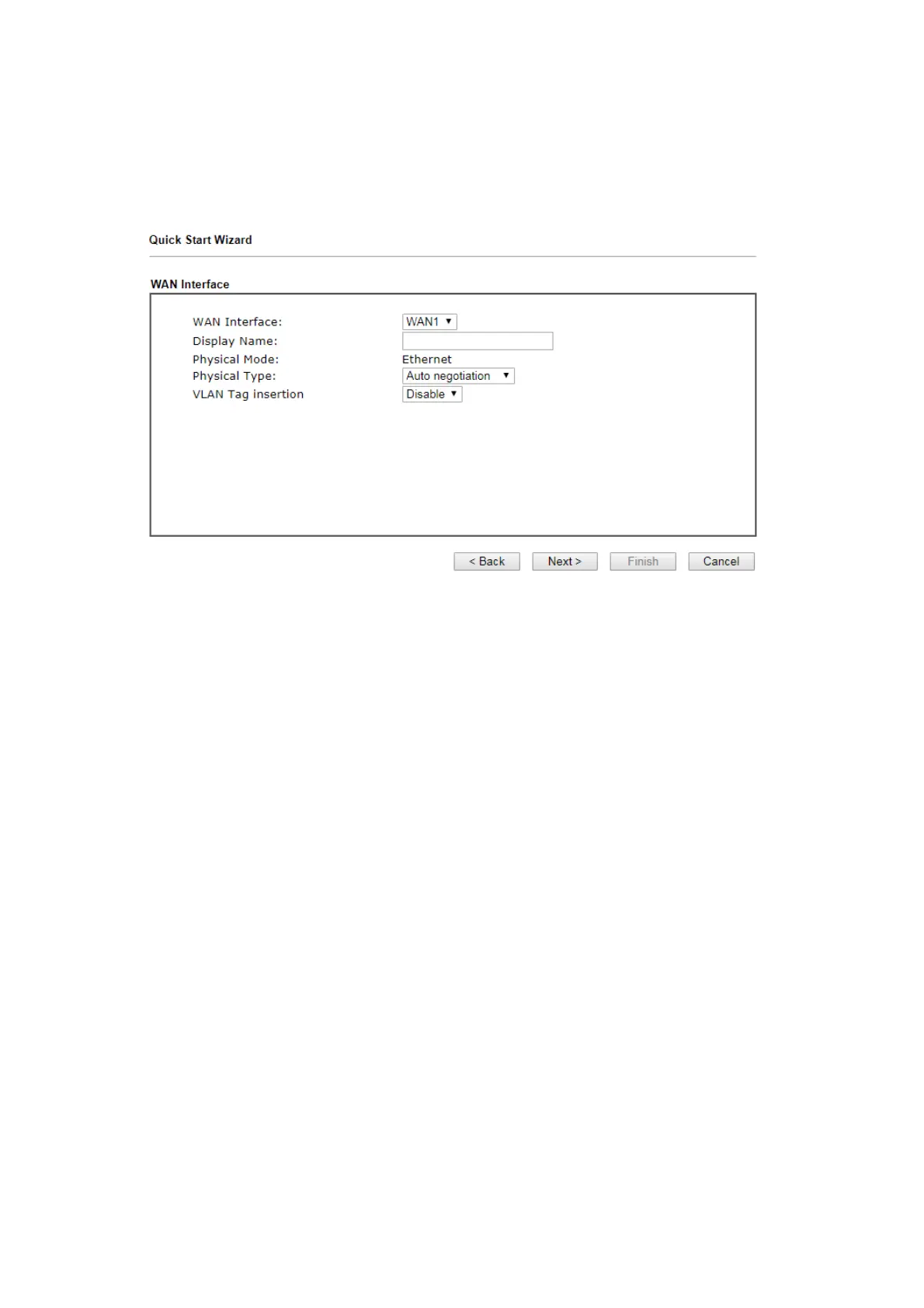

On the next page as shown below, please select the WAN interface that you use.
If Ethernet interface is used, please choose WAN1 or WAN2; if wireless 2.4G/5G
connection is used, please choose WAN3 or WAN4; if 3G USB modem/LTE module
is used, please choose WAN5/LTE or WAN6. Then click Next for next step. Each
WAN interface will bring up specific configuration page.
Click Next. You have to select the appropriate Internet access type (PPPoE, PPTP,
L2TP, Static IP or DHCP) according to the information from your ISP.
Here we take PPPoE and DHCP modes for WAN connection as examples.

Draytek Vigor2927 Series Specifications

General

Firewall	Yes
USB Ports	2 x USB 2.0
Load Balancing	Yes
QoS	Yes
VPN Throughput	200 Mbps
Central VPN Management (CVM)	Yes
Central AP Management (APM)	Yes
Power over Ethernet (PoE)	No
VPN Tunnels	50
Dimensions	241 mm x 165 mm x 44 mm
Operating Temperature	0°C to 45°C
