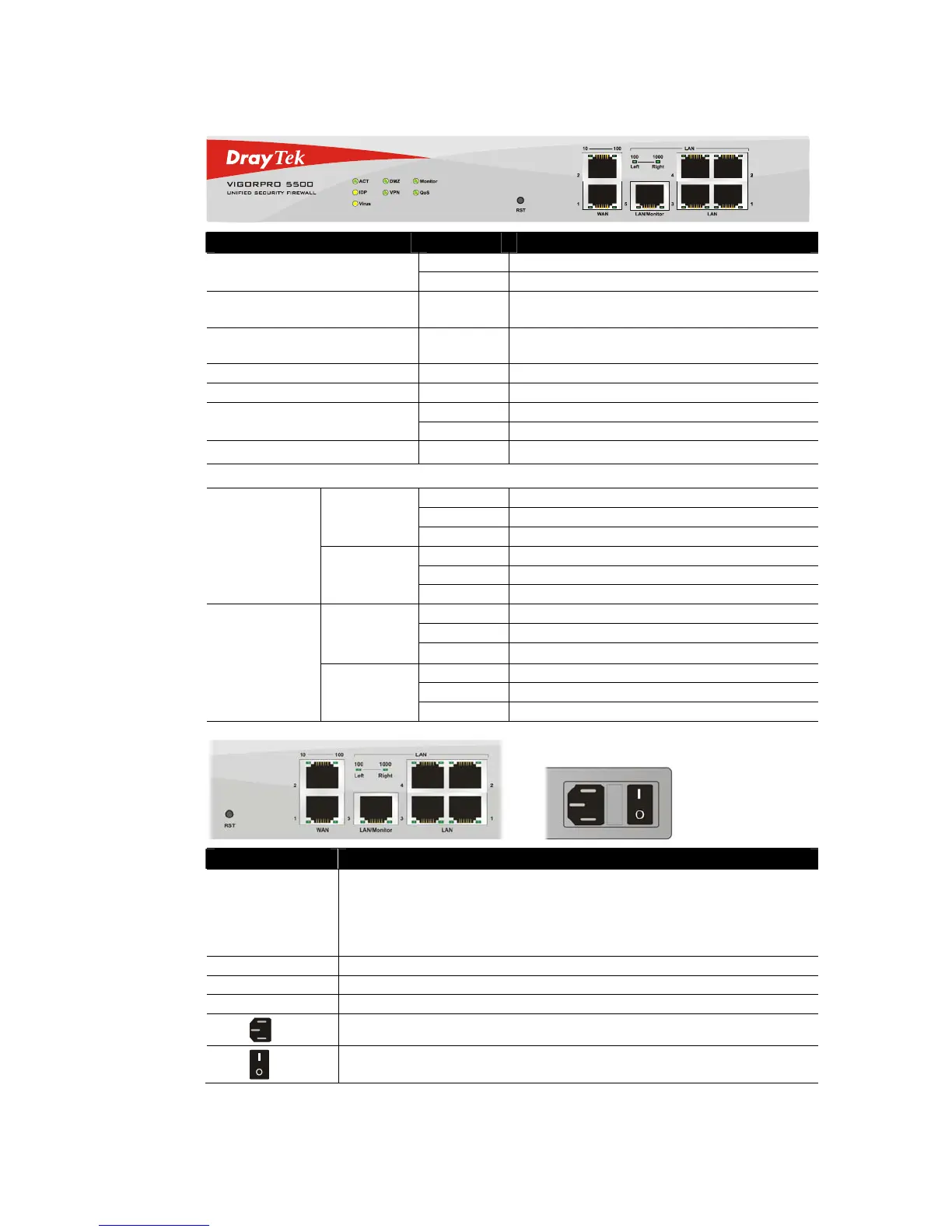

LED Status Explanation
Blinking The router is powered on and running normally.ACT (Activity)
Off The router is powered off.
Virus On
(Yellow)
The anti-virus function is enabled.
IDP (Intrusion Detection and
Prevention)
On
(Yellow)
The anti-intrusion function is enabled.
DMZ On DMZ Host is specified in certain site.
Monitor On LAN traffic monitor is active.
On The VPN tunnel is launched. VPN
Off The VPN tunnel is closed.
QoS
On The QoS function is active.
LED on Connector
On The port is connected with 10Mbps.
Off The port is disconnected.
10
(left LED)
Blinking The data is transmitting.
On The port is connected with 100Mbps.
Off The port is disconnected.
WAN
100
(right LED)
Blinking The data is transmitting.
On The port is connected with 100Mbps.
Off The port is disconnected.
100
(left LED)
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
Off The port is disconnected.
LAN/Monitor
LAN
1000
(right LED)
Blinking The data is transmitting.
Interface Description
RST
(Factory Reset)
Restore the default settings.
Usage: Turn on the router (ACT LED is blinking). Press the hole and keep
for more than 5 seconds. When you see the ACT LED begins to blink rapidly
than usual, release the button. Then the router will restart with the factory
default configuration.
WAN(1/2) Connecter for remote networked devices.
LAN/Monitor Connecter for local networked devices.
LAN (1-4) Connecter for local networked devices.
Connecter for a power cord with 100-240VAC (inlet).
Power Switch. “1” is ON; “0” is OFF.
