MAINTENANCE SECTION 5
Page 55
DRESSTA TD-15H
TRANSMISSION SYSTEM
5.18.6. SERVICING TRANSMISSION SCAVENGER STRAINER

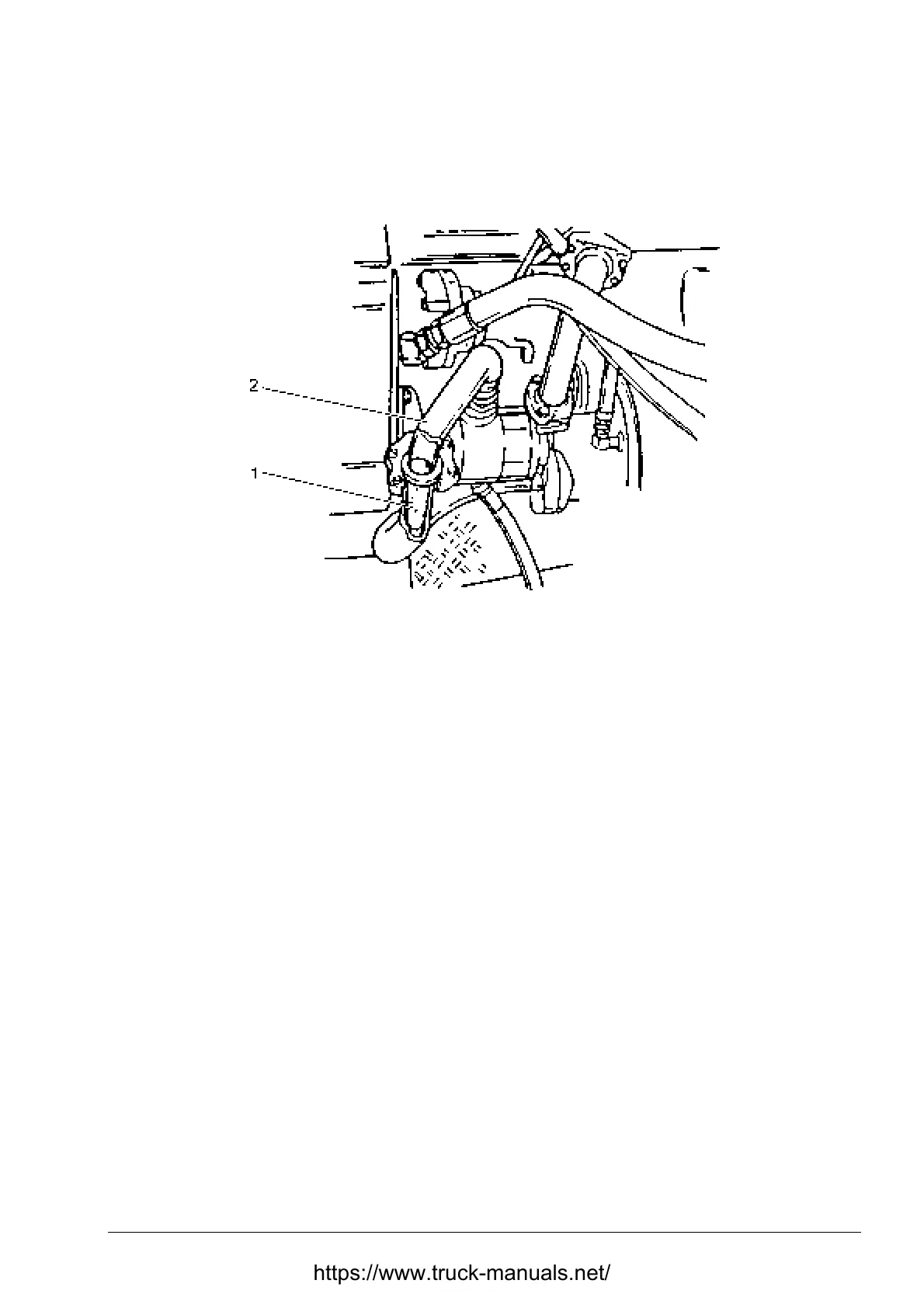

Fig. 5.51. Transmission Scavenger Oil Strainer
1.
Hose with Filter Strainer 2. Intake Pipe with Scavenger Pump
NOTE: With the transmission system drained after 1000 hours of operation as described in the
"Maintenance Schedule", remove the scavenger oil strainer and clean as described below:
1. To gain access to the oil strainer first remove the center cover in the floor of the cab.
2. Disconnect transmission scavenger hose (1) from intake pipe (2).
3. Remove the strainer from hose (1).
4. Clean the strainer with nonflammable commercial cleaning solvent.
5. Reinstall the strainer into hose (1).
6. Reinstall the transmission scavenger hose to pipe (2). Make sure that the filter strainer is
properly seated in the hose.
7. Reinstall the center cover.
5.19. UNDERCARRIAGE
5.19.1. CHECKING THE UNDERCARRIAGE CONDITION
Periodically make observation checks on your undercarriage components. Check the tracks, track
rollers, track idlers, front idlers etc. for abnormal wear. Make adjustments to these problems
before damages to the components occur. Once the wear on these components drops below zero
percentage the option to recondition will also be lost. Refer to Service Manual for dimensions
indicating percentage of allowable wear. If this Service Manual is not available, then contact
Authorized Distributor of Construction Equipment.
