4. Now proceed with final fixing by fitting another screws (4) ST4.2*30mm . Insert
the 4 screws operating from inside the wall unit. Connect a flexible tube to the
hood flange, using a metal hose clamp. Tube and hose clamps are not provided.

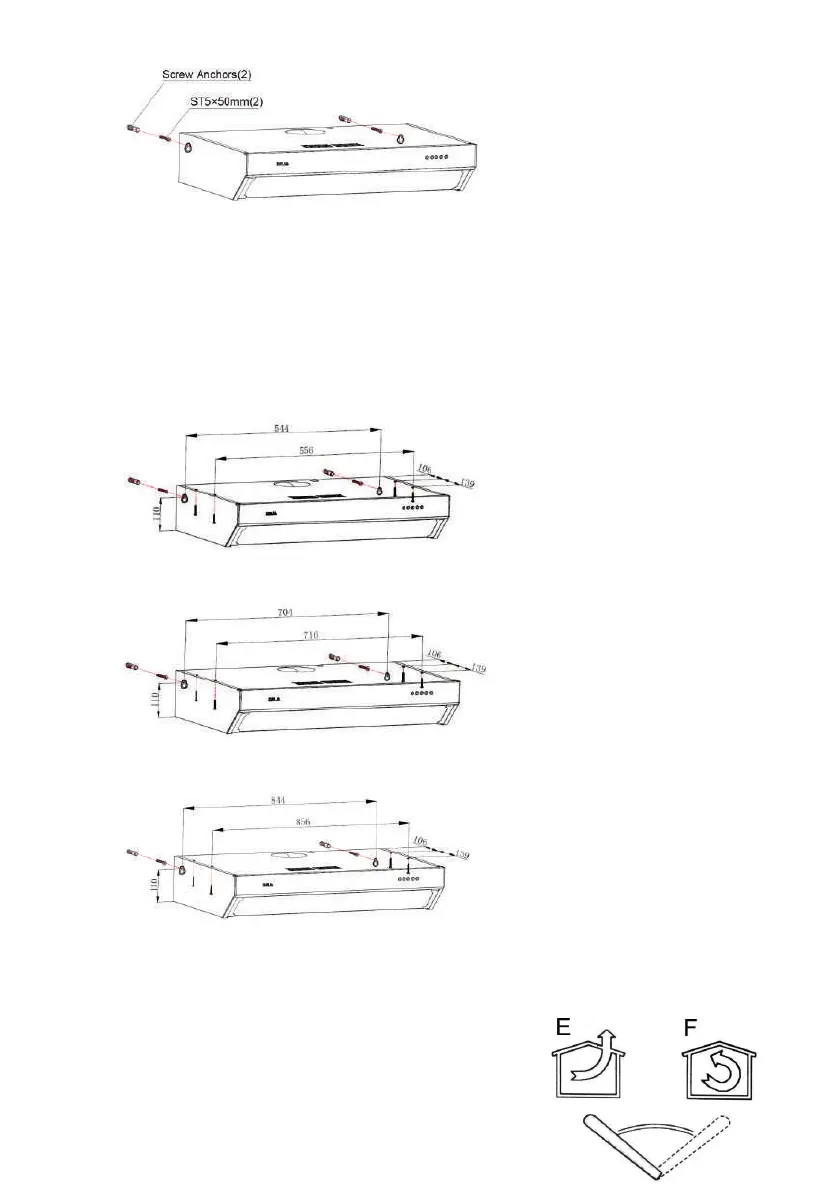

Please check the dimension for each models below.
60cm Model
76cm model
90cm model
5. Make the electrical connection.
Installation is now complete. We recommend you:
CHECK THAT THE DUCTING-RECIRCULATING
LEVER IS IN THE RIGHT POSITION: The lever is found
on the motor unit and must be positioned on the symbol
21
