Page 10 For technical questions, please call 1-800-444-3353. Item 69079
Specifications
Electrical Rating 120V~ / 60Hz / 10 A
Motor No Load Speed 5500 RPM
Maximum Blade Diameter 7-1/4"
Arbor 5/8"
Depth of Cut
2-7/16" @ 90°
1-5/8" @ 45°
Bevel Capacity 0° to 45°
4005982
Setup - Before Use:
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
Note: For additional information regarding the parts listed in the following
pages, refer to Parts List and Diagram on page 14.

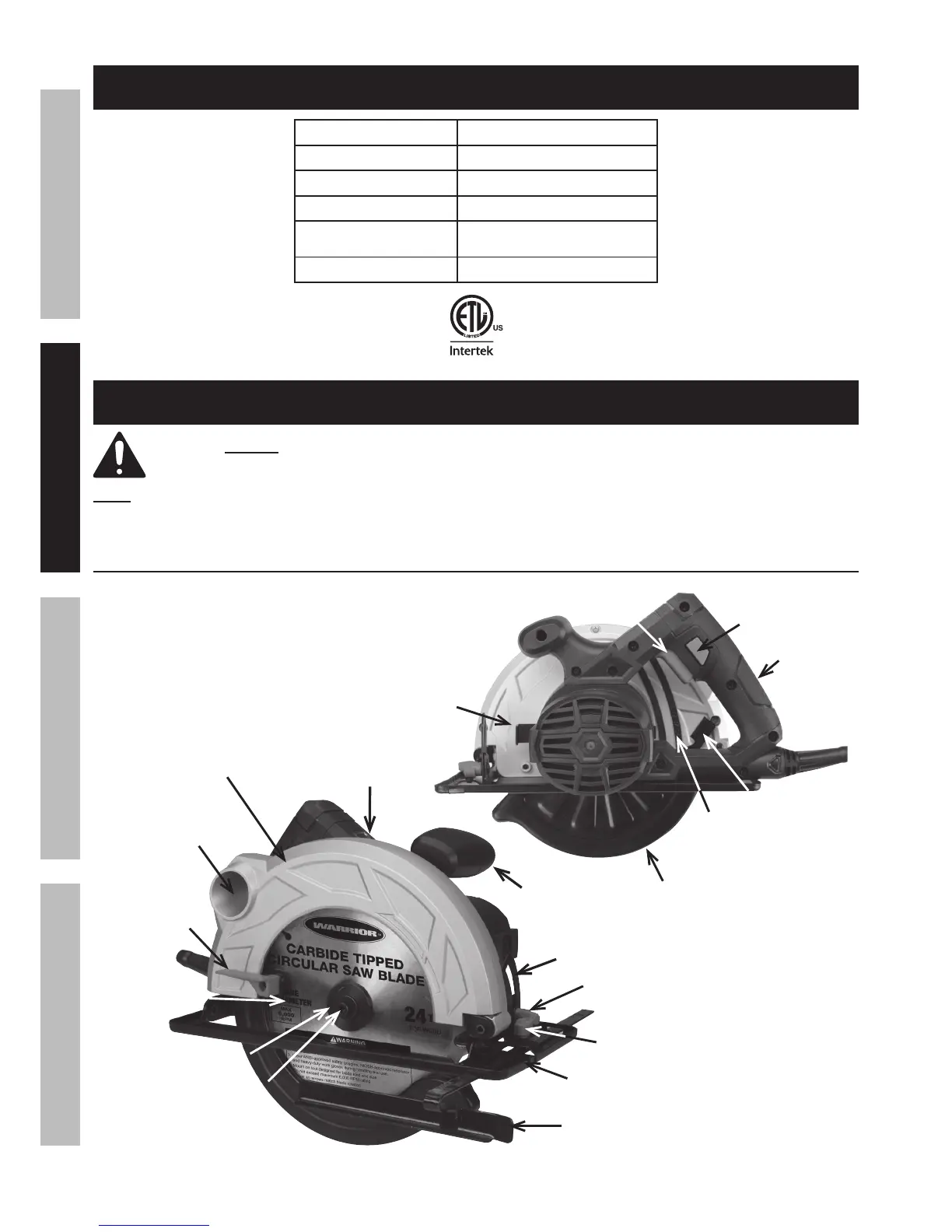

Functions
Spindle Lock Lever (14)
Lower Guard (39)
Trigger Lock
Depth
Gauge (62)
Depth
Lever (58)
Angle Gauge
Trigger (18)
Auxiliary Handle
Main Handle
Figure 1
Stationary Guard (30)
Power ON Light (7)
Dust Outlet
Angle Lock Knob (71)
Fence Lock Knob (69)
Rip Fence (60)
Base (64)
Outer Flange (32)
Blade Bolt (31)
Saw Blade
(Sold separately)
Lower
Guard
Lever (38)
SAFETY OPERATION MAINTENANCESETUP
