Page 15For technical questions, please call 1-800-444-3353.Item 69230
SAFETYOPERATIONMAINTENANCE SETUP
Part Description Qty
1 Handle 1
2 Base 1
3 Cross Head Self-Tapping Screw ST4.2×16 8
4 Rubber Foot 4
5 Power Switch 1
6 Terminal 4
7 Terminal Tube 6
8 Cross Head Self-Tapping Screw ST4.2×13 5
9 Clamp 1
10 Connector 1
11 Power Cord 1
12 Flat Washer 8
13 Bracket 1
14 Rubber Pad,A 1
16 Motor 1
17 Star Washer, 4 1
18 Ground Terminal, 4 1
19 Spring Washer, 4 5
20 Cross Head Screw M4×8 1
21 Ground Symbol Label 1
22 Motor Bracket 1
23 Cross Head Screw 3
24 O Type Ring Ø22.4×2.65 1
25 Table Top 1
26 Label 1
27 Lock Handle 2
28 Rip Fence 1
29 Miter Gauge,A 1
30 Miter Gauge,B 1
Part Description Qty
31 Washer 6 2
32 Miter Guage Knob 1
33 Guard Knob 1
34 Bolt 1
35 Upper Blade Guard 1
36 Cross Head Screw M4×20 1
37 Riving Knife 1
38 Cross Head Sunk Screw ST2.9×16 3
39 Table Insert 1
40 Removable Table Leaf 1
41 Hinged Support 1
42 Inner Flange 1
43 Diamond Blade 1
44 Outer Flange 1
45 Nut M8 1
46 Lower Blade Guard 1
47 Link 1
48 Drain Plug 1
49 O Type Ring Ø 23.6×2.65 1
50 Scale Label 1
51 Main Label 1
54 Rubber Pad,B 1
55 Insert Plate 1
56 Inner Wire 1
58 Pin Wrench 1
59 Wrench 1
60 Switch Bracket 1
61 Terminal 2

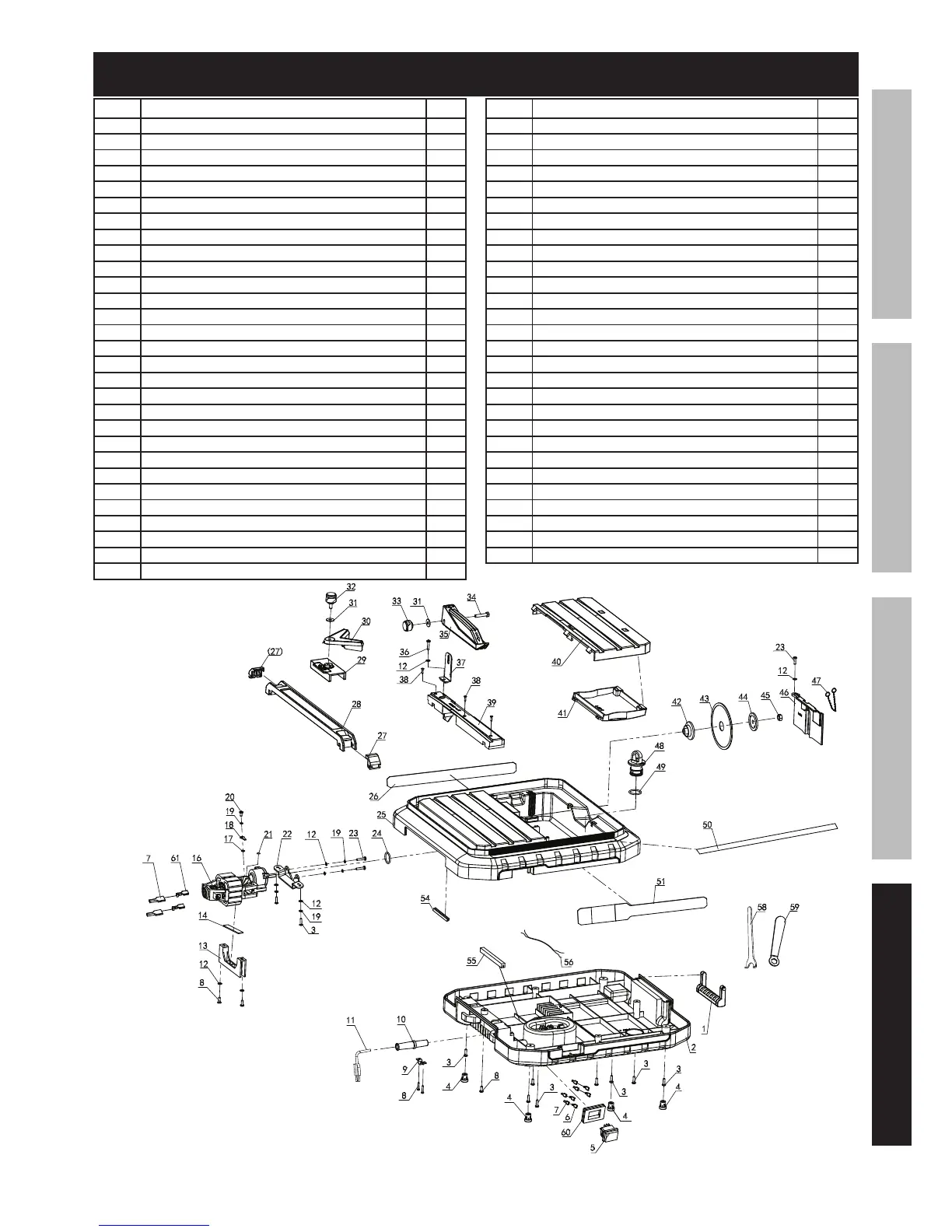

Parts List and Diagram
