Option B: Tapping Faucet Cold Water Line
1. For this section, you will need
F
3/8 in. Sink Adapter Valve, as well as pliers, a
crescent wrench, or 7/16 in. and 11/16 in. open ended wrenches (see “Preparation” on
page 1-8).

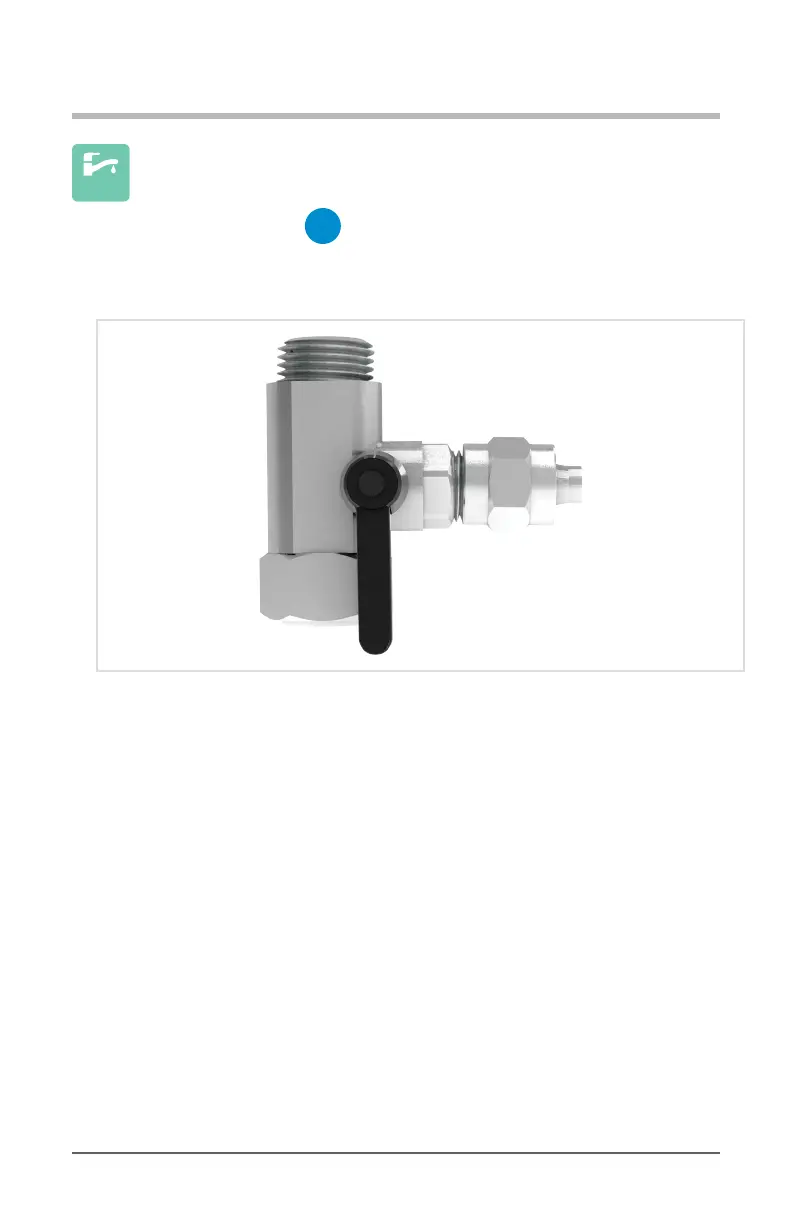

Diagram 2.3(B).1 Connect Compression-To-Quick Connect Adapter
2. Open your cabinet doors to reveal the plumbing underneath your sink. Don’t get
overwhelmed by all the piping and connections. We’ve provided a diagram with
labels to help you understand what you’re looking at (accurate for most under sink
setups). The blue items listed below are ll that we’ll be working with.
KS-A:
Drains
KS-B:
Hot Faucet Handle
KS-C:
Hot Water Feed Line
KS-D:
Hot Water Shuto Valve
KS-E:
Faucet
KS-F:
Cold Water Shuto Valve
KS-G:
Cold Water Feed Line
KS-H:
Cold Faucet Handle
KS-I:
Garbage Disposal
