Installing Your Drinkpod
Installing Your Drinkpod 2-21

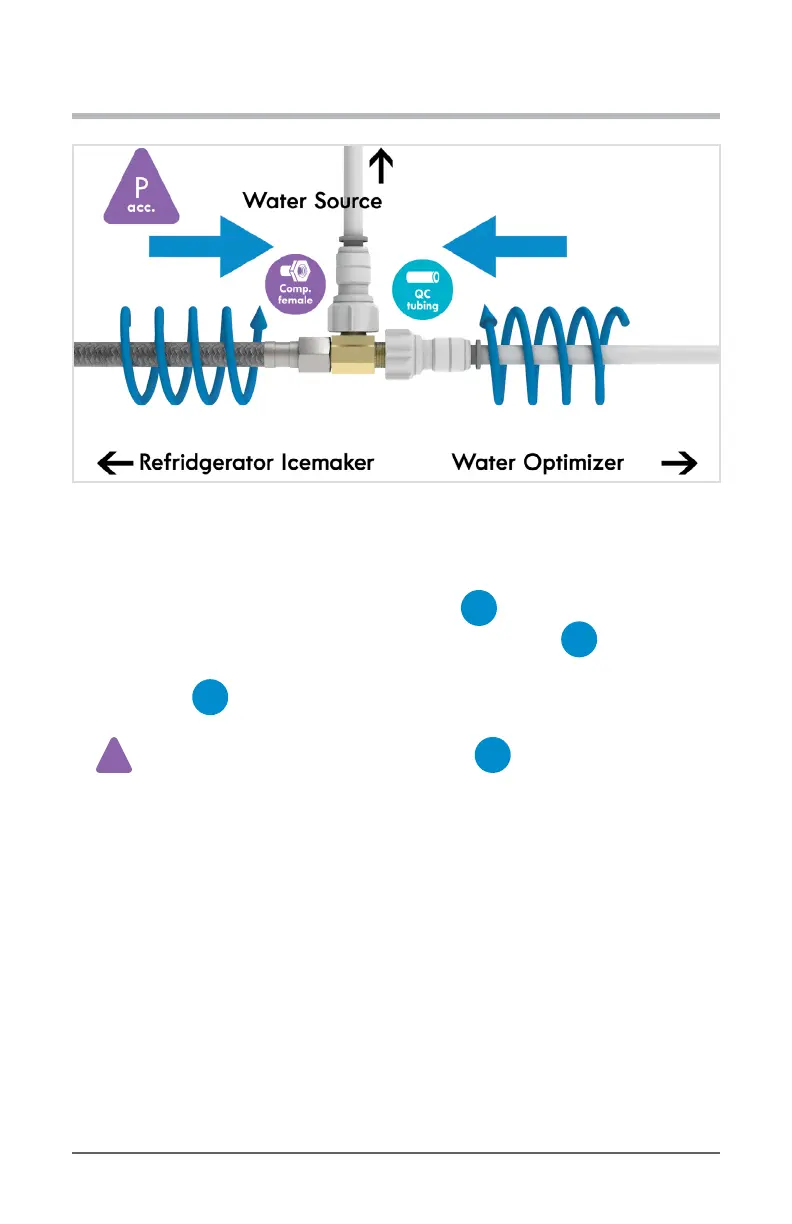

Diagram 2.6.5-B - Merging Connections to Brass Compression Tee For Parallel Conguration
Final Check
5. Your accessory appliances should be connected to
E
1/4 in. Brass Compression Tee, and there should be a section of
A
1/4 in. White PP Tubing running from there to where your DRINKPOD 2000 will be
located, with
C
1/4 in. Quick Connect Shuto Valve attached to the other end.
acc.
P
Also, for Parallel Conguration, the section of
A
1/4 in. White PP Tubing
running from your Water Source should have the Quick Connect Shuto Valve
removed from it, and be connected to the top port of the Brass Compression Tee.
If all of the above is correct, you’re ready to proceed to the next stage, “Connecting
Your DRINKPOD” on page 2-23. If not, review the instructions and make any
necessary corrections before proceeding. For ‘visual’ users, we’ve provided simplied
reference diagrams to double check your work.
