Accessory Water Line Congurations
Example Installation #1.1
Accessory Water Line Source
BEFORE
Accessory Water Source
(Ice Maker)
AFTER
Accessory Water Source
(Ice Maker)
DRINKPOD
(Ice Maker Connection)

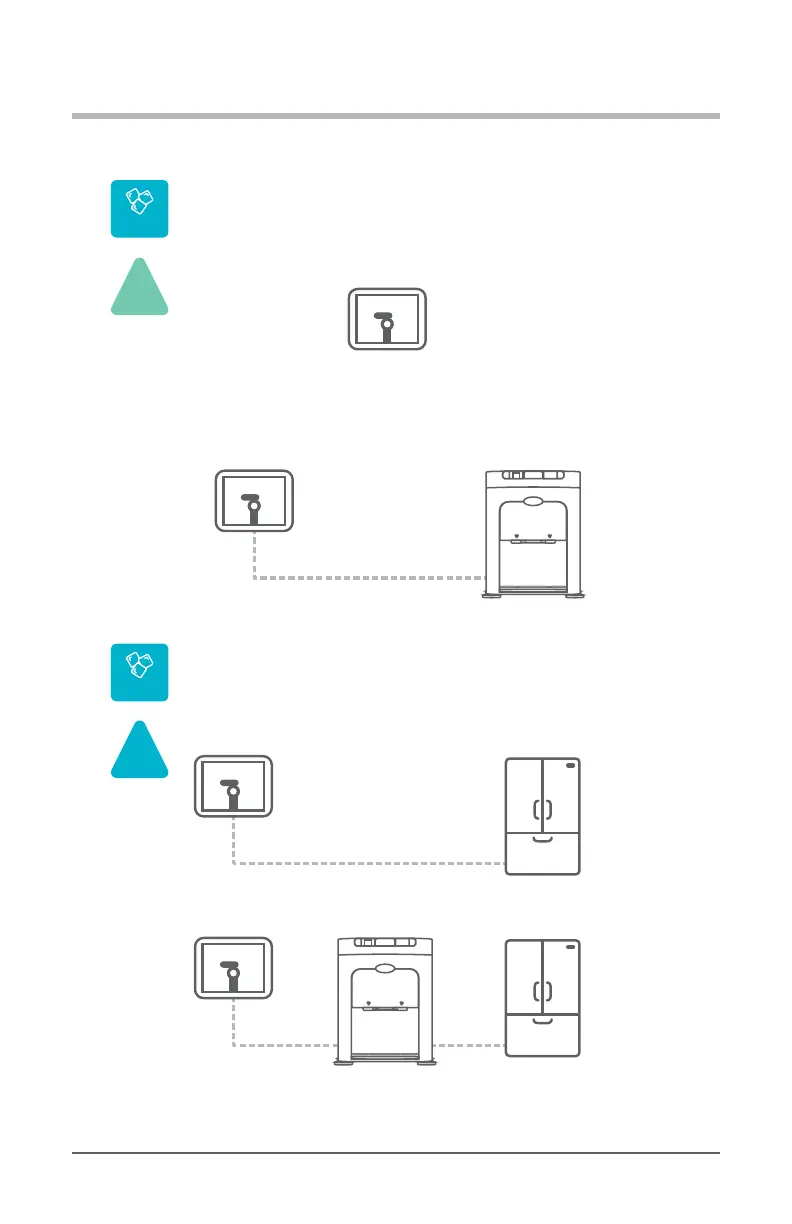

Diagram 2.1.1-A Accessory Water Line Source (Not Connected, No Accessory Appliances)
Example Installation #1.2
Accessory Water Line Source - 1x Accessory Appliance
BEFORE
Accessory
Water Source
Refrigerator
(Ice Maker Connection)
AFTER
Accessory
Water Source
Refrigerator
(Ice Maker Connection)
DRINKPOD
Diagram 2.1.1-B Accessory Water Line Source (Connected, 1 Accessory Appliance)
source
source
acc.
0x
acc.
1x
